Yamaha F400A 2022 - Low-Pressure Fuel Pump

Low-pressure fuel pump
6-6

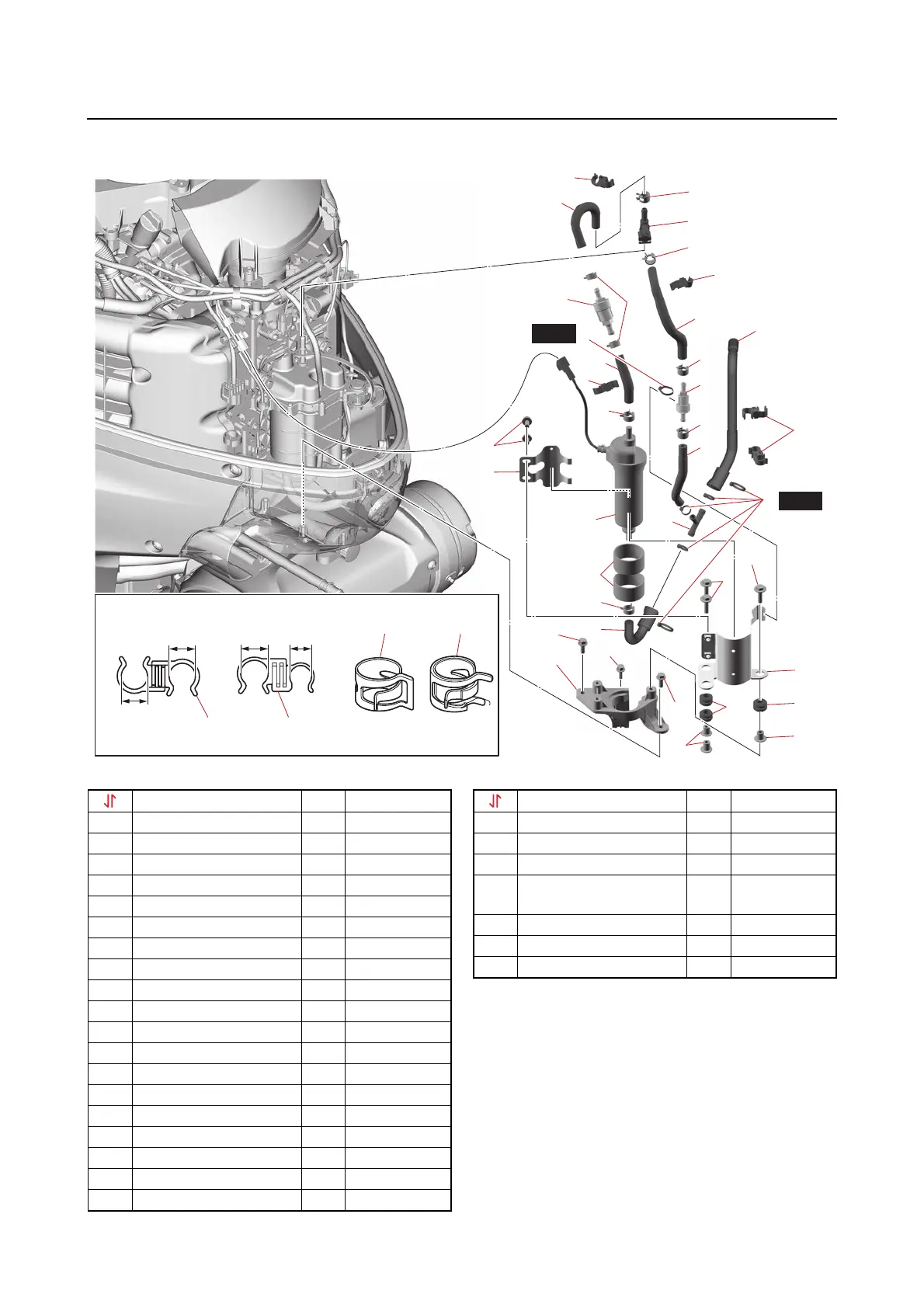

Low-pressure fuel pump
12 mm
(0.47 in)
12 mm
(0.47 in)
12 mm
(0.47 in)
9 mm
(0.35 in)
25
2
26
25
25
12
76
14
12
24
13
14
19
14
7
18
11
6
4
6
1221
20
7
12
23
8
14
14
17
15
9
1
10
3
2
1
3
5
22
16
New
New
Part name
Q
’ty
Remarks
1Bolt M6
× 25 mm 3
2Collar 3
3 Grommet 3
4 Plastic tie 1
5 Plastic tie 5
6Holder 3
7Holder 2
8Bolt M6
× 12 mm 2
9Holder 1
10 Holder 1
11 Hose 1
12 Clamp 4
13 Hose 1
14 Clamp 4
15 Hose 1
16 Joint 1
17 Relief valve 1
18 Hose 1
19 Quick connector 1
20 Hose 1
21 Feed valve 1
22 Hose 1
23
Low-pressure fuel
pump
1
24 Bushing 2
25 Bolt M6
× 16 mm 3
26 Bracket 1
Part name
Q
’ty
Remarks
