Yamaha F400A 2022 - Removing the Steering Actuator (with the Power Unit Installed)

Steering actuator and steering arm
9-33

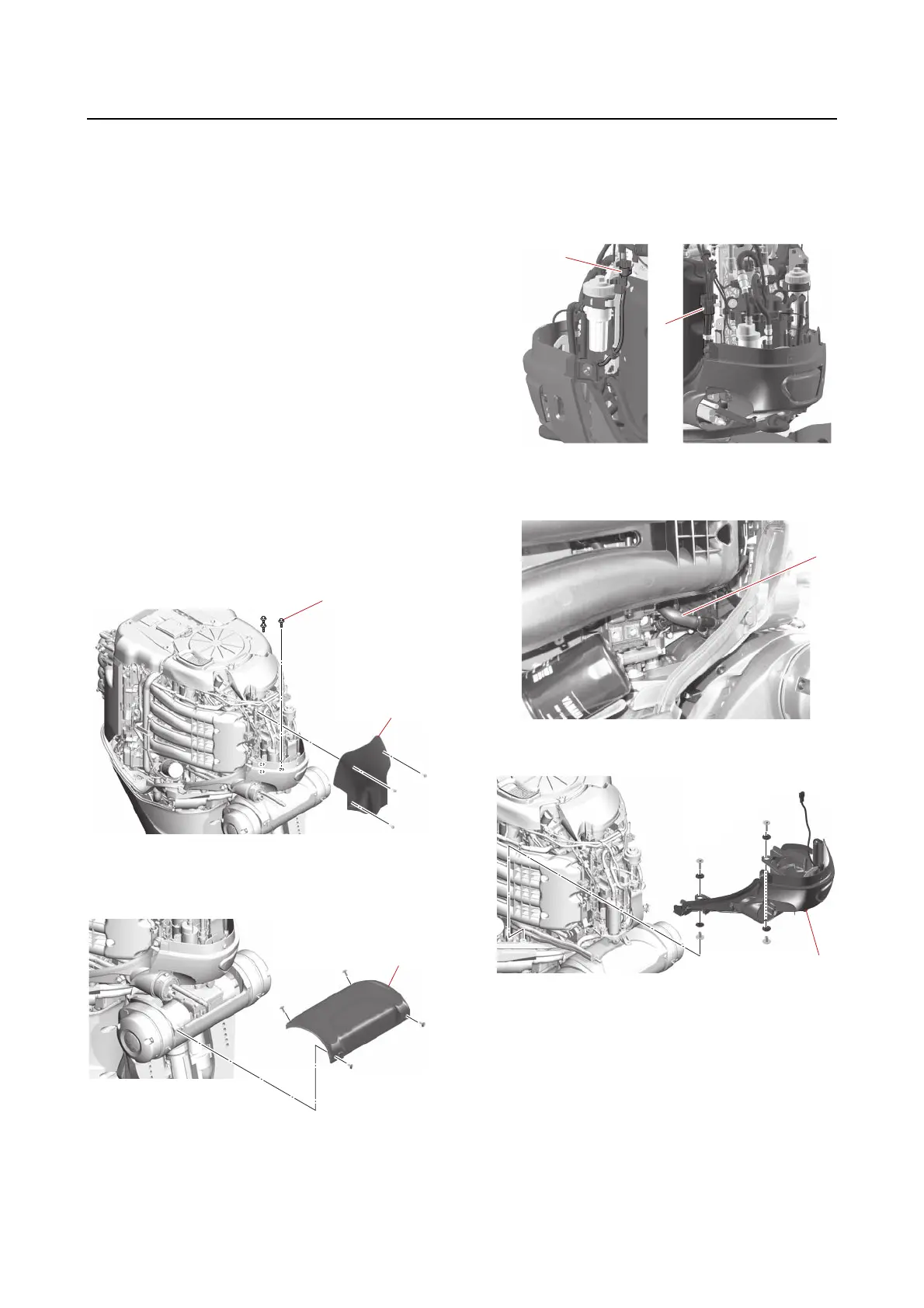

Removing the steering actuator (with
the power unit installed)
The steering actuator can be removed even
when the power unit is installed.
1. Remove:
•Top cowling
• Bottom cowling cover
• Apron cover
See “Bottom cowling cover and apron
cover” (9-1).
• Bottom cowlings (PORT and STBD)
See “Bottom cowling (PORT and STBD)”
(9-3).
• Apron (STBD)
See “Apron” (9-8).
2. Disconnect:
• Battery cables
3. Remove:
•Cover “1”
• Low-pressure fuel pump bracket bolts “2”
4. Remove:
• Swivel bracket top cover “1”
5. Remove:
•Plastic tie
• Grommet holder
• Rigging grommet
See “Power unit assembly” (7-13).
6. Disconnect:
• PTT switch coupler “a”
• Main wire harness coupler “b”
7. Disconnect:
• Flushing hose “1”
(from the joint)
8. Remove:
• Bottom cowling (front) “1”
9. Remove:
• Dipstick guide
See “Intake manifold” (6-24).
•Shroud cover
See “Shroud cover and terminal cover”
(7-5).
10. Disconnect:
• SCU positive terminal “a”
• SCU couplers “b”, “c”
• SCU ground terminal “d”
2
1
1
a
b
1
1
