Yamaha F400A 2022 - Cooling Water Hose

2-61

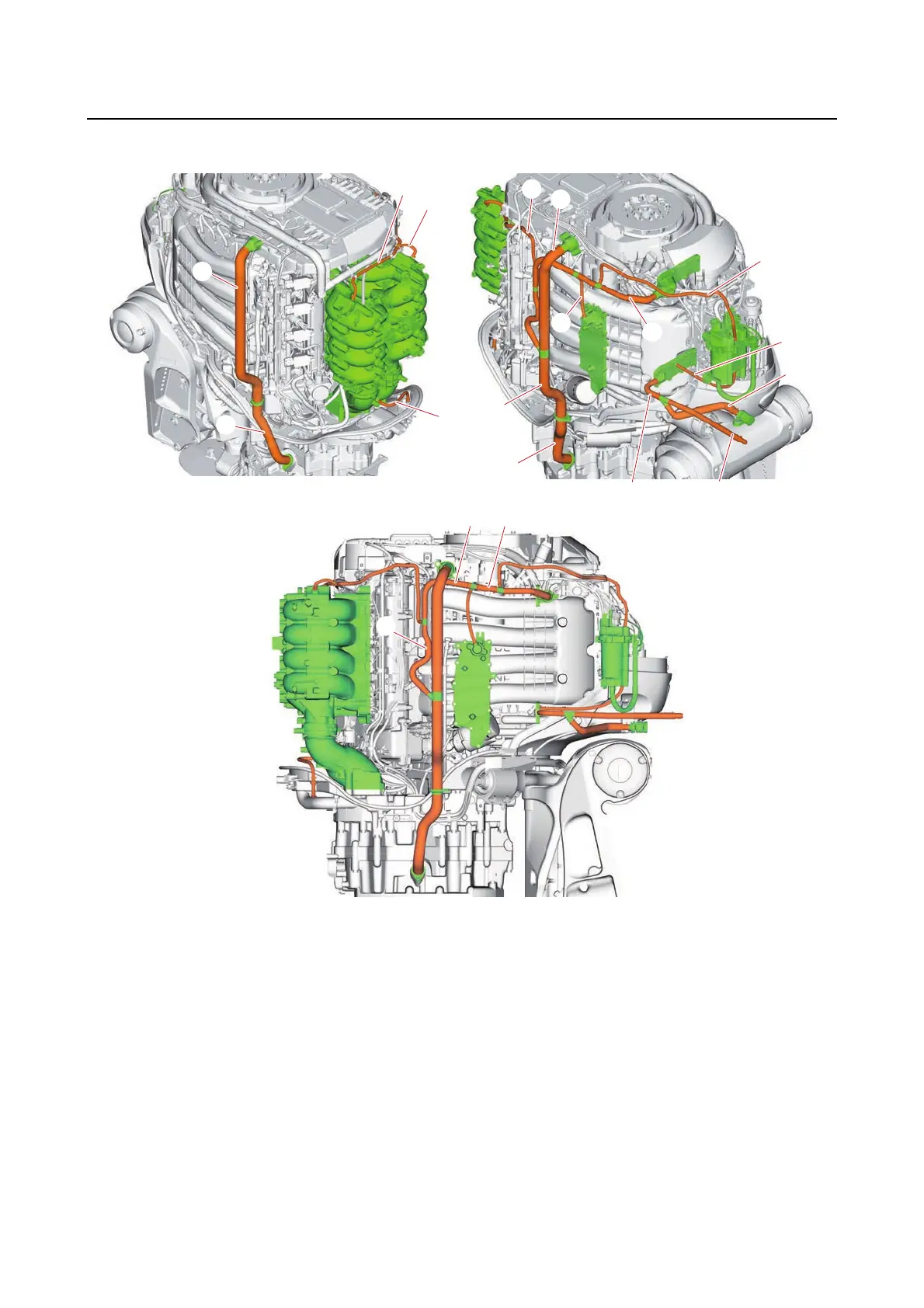

Hose routing
Cooling water hose
2
3
5
6
6
1
7
4
8
9
11
10
19
18
17
12
13
1415
16
1. Exhaust joint to cooling water pilot hole
2. Exhaust joint to joint
3. Exhaust joint to joint
4. Joint to joint
5. Thermostat housing to joint
6. Joint to upper case
7. Thermostat housing to joint
8. Joint to joint
9. Joint to upper case
10. Crankcase to vapor separator (fuel
cooler)
11. Vapor separator (fuel cooler) to joint
12. Thermostat housing to joint
13. Thermostat housing (oil cooler) to joint
14. Joint to joint
15. Joint to joint
16. Joint to joint
17. Water jacket cover to joint
18. Joint to joint
19. Flushing hose adapter to joint
