Yamaha F400A 2022 - Drive Shaft and Lower Case (Counter Rotation Model)

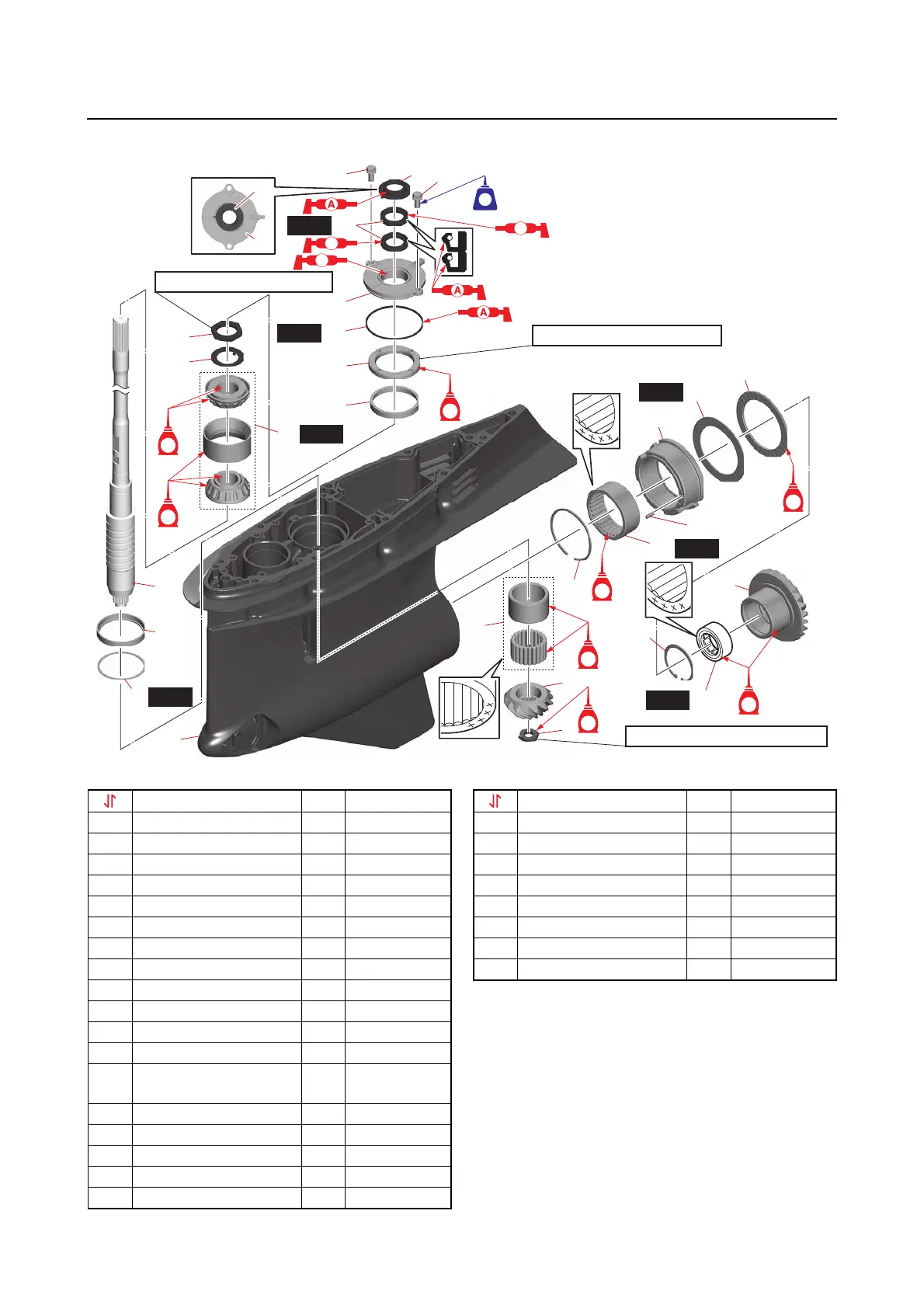

Drive shaft and lower case (counter rotation model)
8-54
Drive shaft and lower case (counter rotation model)
GG
GG
GG
GG
GG
EPEP
GG
GG
GG
572572
LTLT
EPEP
EPEP
11
21
12
13
14
20
25
26
7
6
24
23
22
New
New
5
18
8
9
10
17
4
15
3
New
19
New
16
New
1
3
2
2
1
New
New
46 N
·
m (4.6 kgf
·
m, 34 lb
·ft
)
240 N
·
m (24 kgf
·
m, 177 lb
·ft
)
175 N
·
m (17.5 kgf
·
m, 129 lb
·ft
)
Part name
Q
’ty
Remarks
1Cover 1
2Bolt M8
× 20 mm 2
3Housing 1
4Ring nut M86 1
5 Spacer 1
6 Pinion nut M18 1
7 Pinion 1
8Drive shaft 1
9 Spacer 1
10 Pinion shim (T3)
—
11 Reverse gear 1
12 Thrust bearing 1
13
Reverse gear shim
(T1)
1
14 Adapter 1
15 O-ring 1
16 Oil seal 2
17 Nut M35 1
18 Claw washer 1
19 Tapered roller bearing 1
20 Circlip 1
21 Roller bearing 1 Outer race
22 Dowel 1
23 Circlip 1
24 Roller bearing 1
25 Needle bearing 1
26 Lower case 1
Part name
Q
’ty
Remarks
