Yamaha F400A 2022 - Assembling the Water Pump Housing

Water pump and shift rod
8-14
2. Install:
• Gear oil passage check valve (shift rod
guide plate) “1”

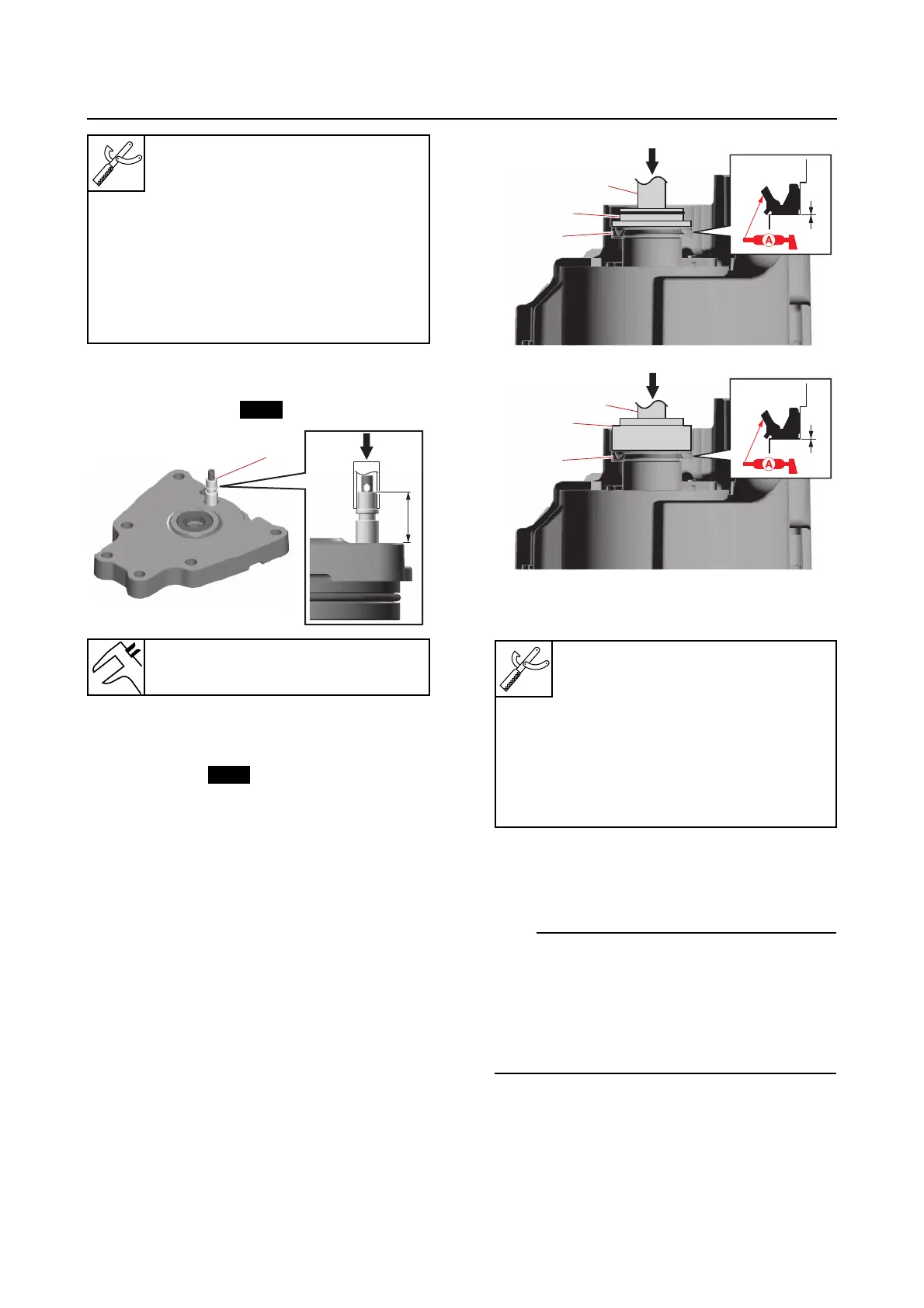

Assembling the water pump housing
1. Install:
• Oil seal “1”
• Seal
A
B
2. Install:
•Cover “1”
•Guide “2”
TIP:
• Fit the protrusions “a” on the cover “1” into
the holes “b” in the upper water pump hous-
ing “3”.
• Fit the protrusions “c” on the guide “2” into
the holes “d” in the upper water pump hous-
ing “3”.
Driver rod L3 “2”
90890-06652
Needle bearing attachment “3”
90890-06614
Driver handle (small) “4”
YB-06229
Oil seal installer reverse gear
bearing housing “5”
YB-06021
Installation height “a”
21.2–21.8 mm (0.83–0.86 in)
New
1
a
New
A. Worldwide
B. USA and Canada
Driver rod L3 “2”
90890-06652
Needle bearing attachment “3”
90890-06609
Driver handle (small) “4”
YB-06229
Driveshaft seal installer “5”
YB-06348
1
3
2
1
5
4
