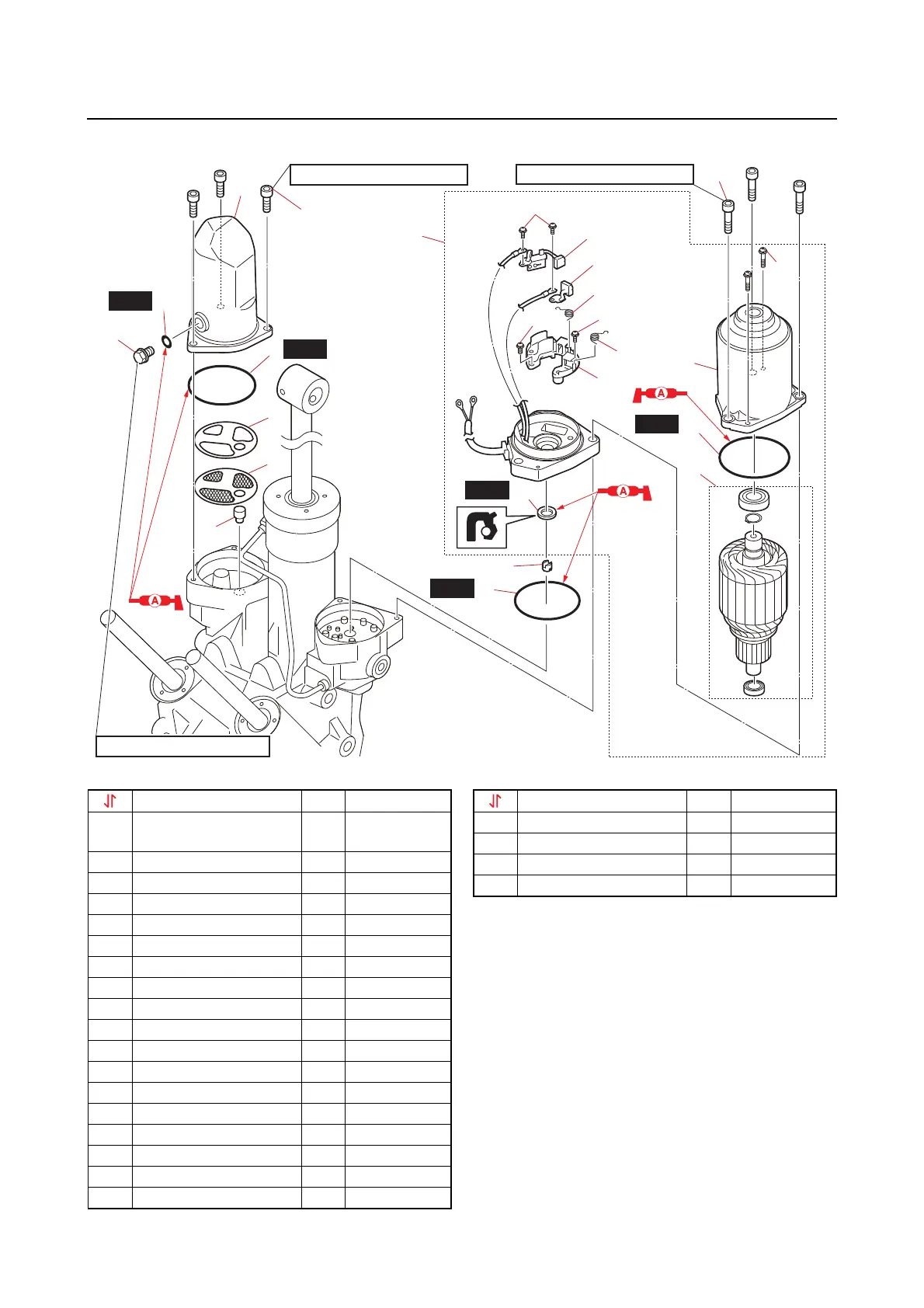

Yamaha F400A 2022 - PTT Motor

9-52
PTT motor
PTT motor
New
New
New
New
New
15 N
·
m (1.5 kgf
·
m, 11 lb
·ft
)
15 N
·
m (1.5 kgf
·
m, 11 lb
·ft
)
7 N
·
m (0.7 kgf
·
m, 5.2 lb
·ft
)
3
2
5
4
11
19
6
12
8
7
1
18
17
9
13
17
17
20
20
14
16
15
10
21
22
Part name
Q
’ty
Remarks
1
Reservoir cap M12
×
10 mm
1
2O-ring 1
3Bolt M8
× 20 mm 3
4Reservoir 1
5O-ring 1
6Sheet 1
7Filter 1
8 Spacer 1
9Bolt M8
× 35 mm 3
10 PTT motor assembly 1
11 O-ring 1
12 Joint 1
13 Screw M4
× 17 mm 2
14 Stator 1
15 O-ring 1
16 Armature assembly 1
17 Screw M4
× 10 mm 4
18 Brush holder 1
19 Oil seal 1
20 Spring 2
21 Brush 1
22 Circuit breaker 1
