Yamaha F400A 2022 - Shroud Cover and Terminal Cover

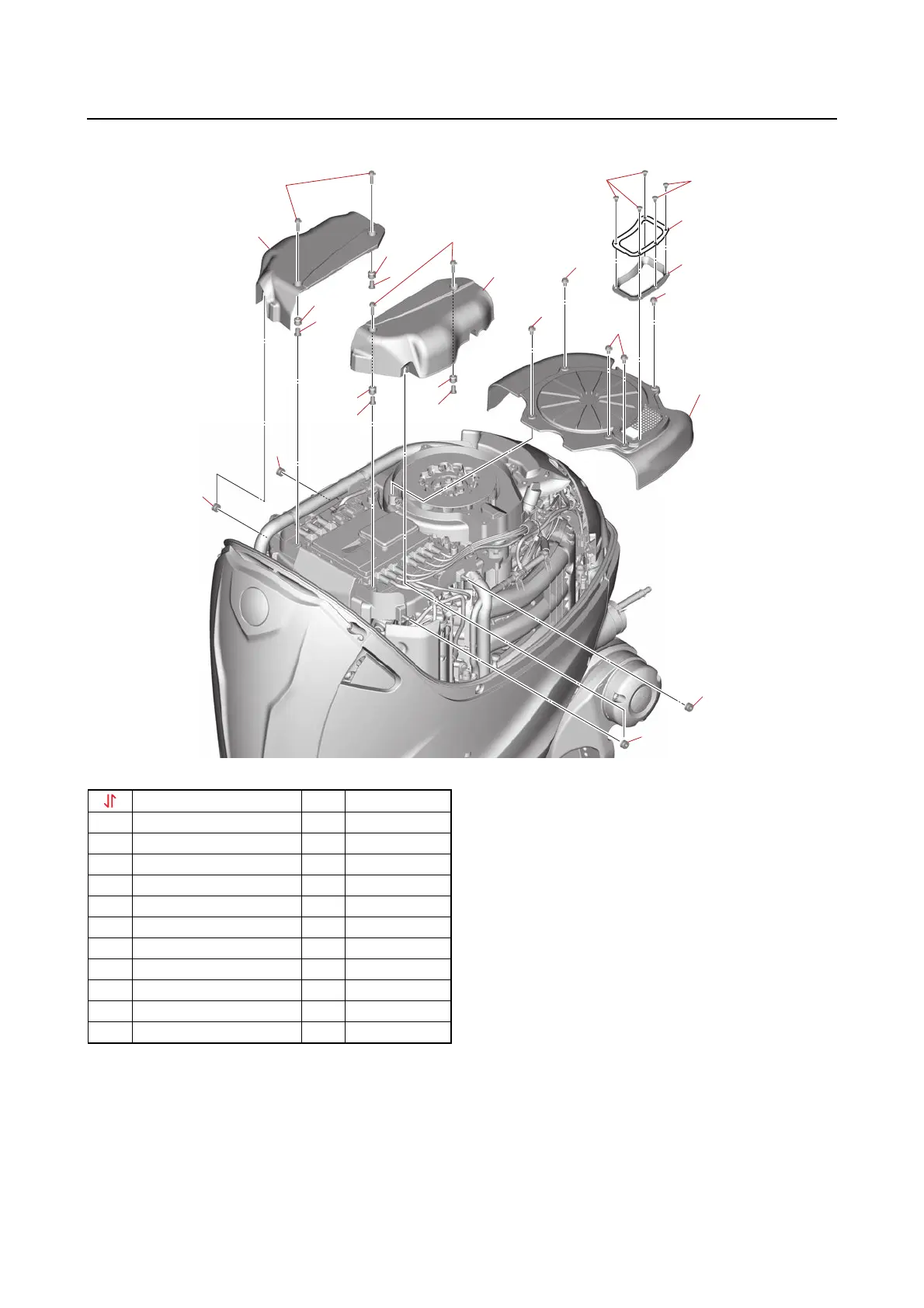

Shroud cover and terminal cover
7-5
Shroud cover and terminal cover
6
7
6
8
9
10
9
10
9
10
9
10
11
11
11
11
1
1
1
1
5
4
3
3
2
Part name
Q
’ty
Remarks
1Bolt M6
× 12 mm 5
2Shroud cover 1
3Rivet 5
4Plate 1
5Damper 1
6Bolt M6
× 25 mm 4
7Terminal cover (PORT)1
8Terminal cover (STBD) 1
9Collar 4
10 Grommet 4
11 Grommet 4
