Yamaha F400A 2022 - Bottom Cowling (Front) and Flushing Hose

9-16

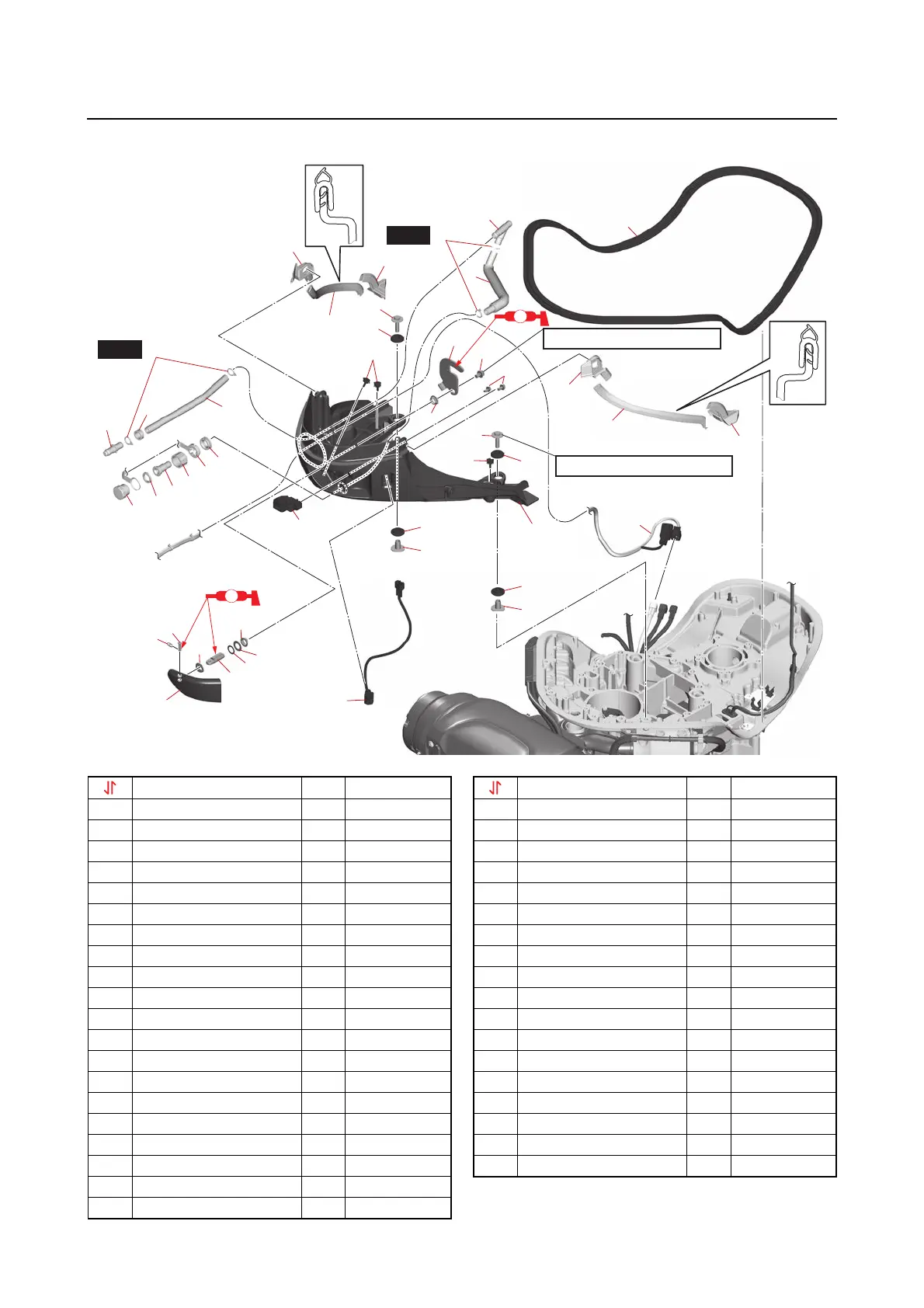

Bottom cowling (front) and flushing hose
Bottom cowling (front) and flushing hose
*1. For the multiple engines.
16
18
18
17
18
17
15
18
7
14
38
38
15
26
35
27
28
29
35
37
6
2
2
8
9
10
11
13
3
4
34
30
32
33
31
36
25
1
5
19
12
21
24
23
22
20
AA
AA
New
New
19 N
·
m (1.9 kgf
·
m, 14 lb
·ft
)
19 N
·
m (1.9 kgf
·
m, 14 lb
·ft
)
Part name
Q
’ty
Remarks
1Lead 1*1
2 Plastic tie 4
3Hose 1
4Nipple 1
5 Grommet 1
6Joint 1
7Hose 1
8Flushing plug 1
9Gasket 1
10 Joint 1
11 Joint 1
12 Holder 1
13 Grommet 1
14 Switch 1 PTT
15 Bolt M8
× 35 mm 2
16 Bottom cowling 1
17 Collar 2
18 Grommet 4
19 Rubber seal (PORT) 1
20 Rubber seal (PORT) 1
21 Grommet 1
22 Rubber seal (STBD) 1
23 Rubber seal (STBD) 1
24 Grommet 1
25 Rubber seal 1
26 Bolt M8
× 12 mm 1
27 Clamp lever 1
28 Shaft 1
29 Washer 1
30 Wave washer 1
31 Retaining clip 1
32 Pin 1
33 Lock lever 1
34 Washer 1
35 Bushing 2
36 Bolt M6
× 12 mm 2
37 Clamp plate 1
38 Grommet 3
Part name
Q
’ty
Remarks
