Yamaha F400A 2022 - Installing the Bottom Cowling

Bottom cowling (PORT and STBD)
9-7

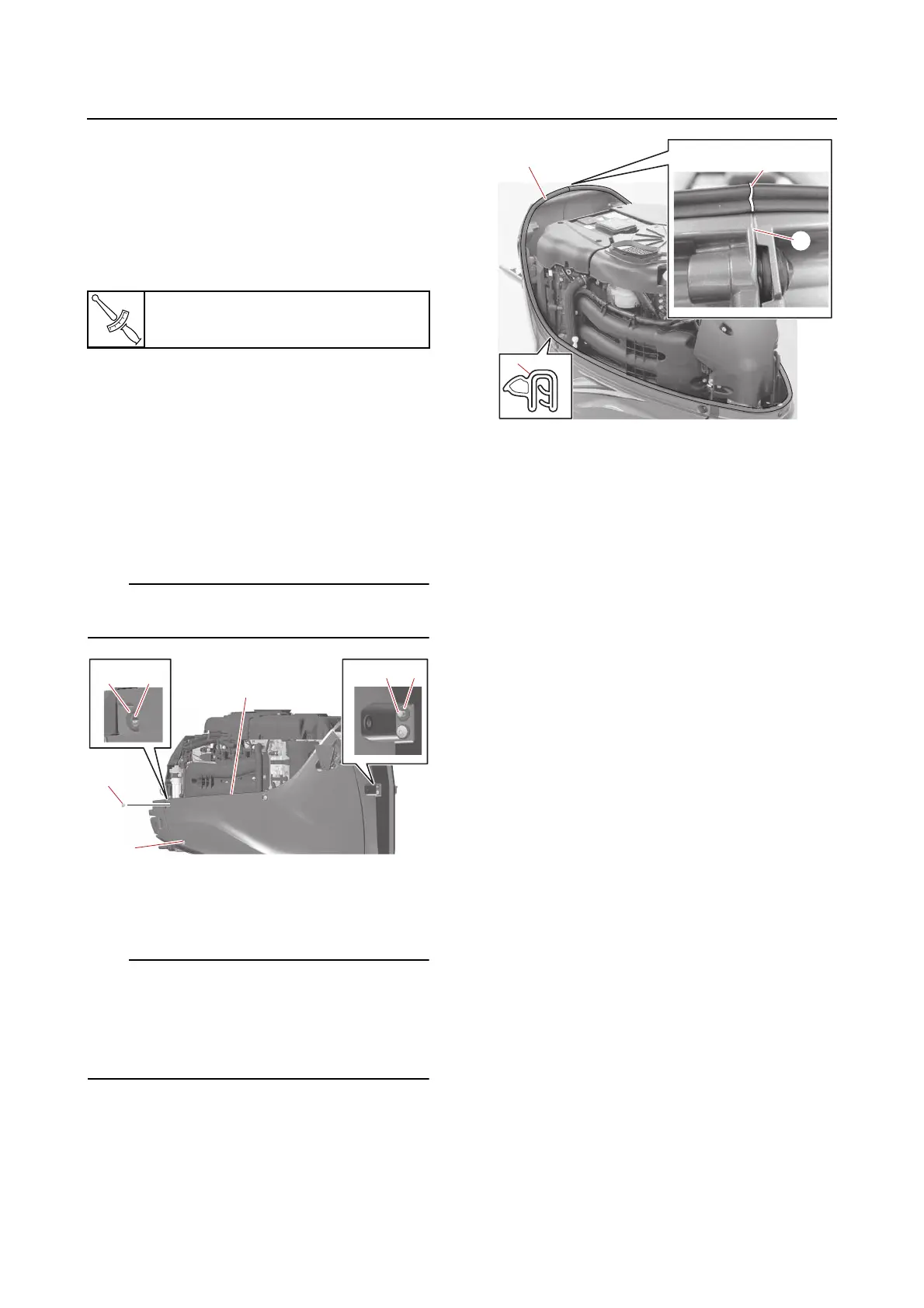

Installing the bottom cowling
1. Install:
• Cowling brackets
• Dipstick guide
See “Intake manifold” (6-24).
•Cowling stays
•Dampers
2. Install:
• Bottom cowlings
•Bolts (M6 × 14 mm)
a. Install the grommet “1” onto the protru-
sion “a” on the exhaust joint.
b. Install the grommet “2” onto the protru-
sion “b” on the bottom cowling (front)
“3”, and then install the bolts (M6 × 14
mm) “4”.
TIP:
Install the bolts (M6 × 14 mm) “4”, and then in-
stall the bolts “5”.
3. Install:
•Rubber seal “1”
•Plate
TIP:
• Align the seam “a” of the rubber seal “1” with
the mating surface “b” of the bottom cowl-
ing.
• After installing the rubber seal “1”, make
sure that there are no wavy areas of the seal.
T
R
.
.
Cowling stay
8 N·m (0.8 kgf·m, 5.9 lb·ft)
1a
b2
5
3
4
b
a
1
1
