Yamaha F400A 2022 - Removing the Clamp Bracket; Checking the Clamp Bracket Anode; Assembling the Swivel Bracket; Installing the Clamp Bracket

Clamp bracket and swivel bracket
9-43
Removing the clamp bracket
1. Remove:
• PTT unit
See “Removing the PTT unit” (9-46).
Checking the clamp bracket anode
1. Check:
•Anode
Eroded (1/2 or more worn out) → Replace.
Adhered is grease, oil, paint, or scales →
Clean.
Do not apply grease, oil, or paint to the an-
ode.

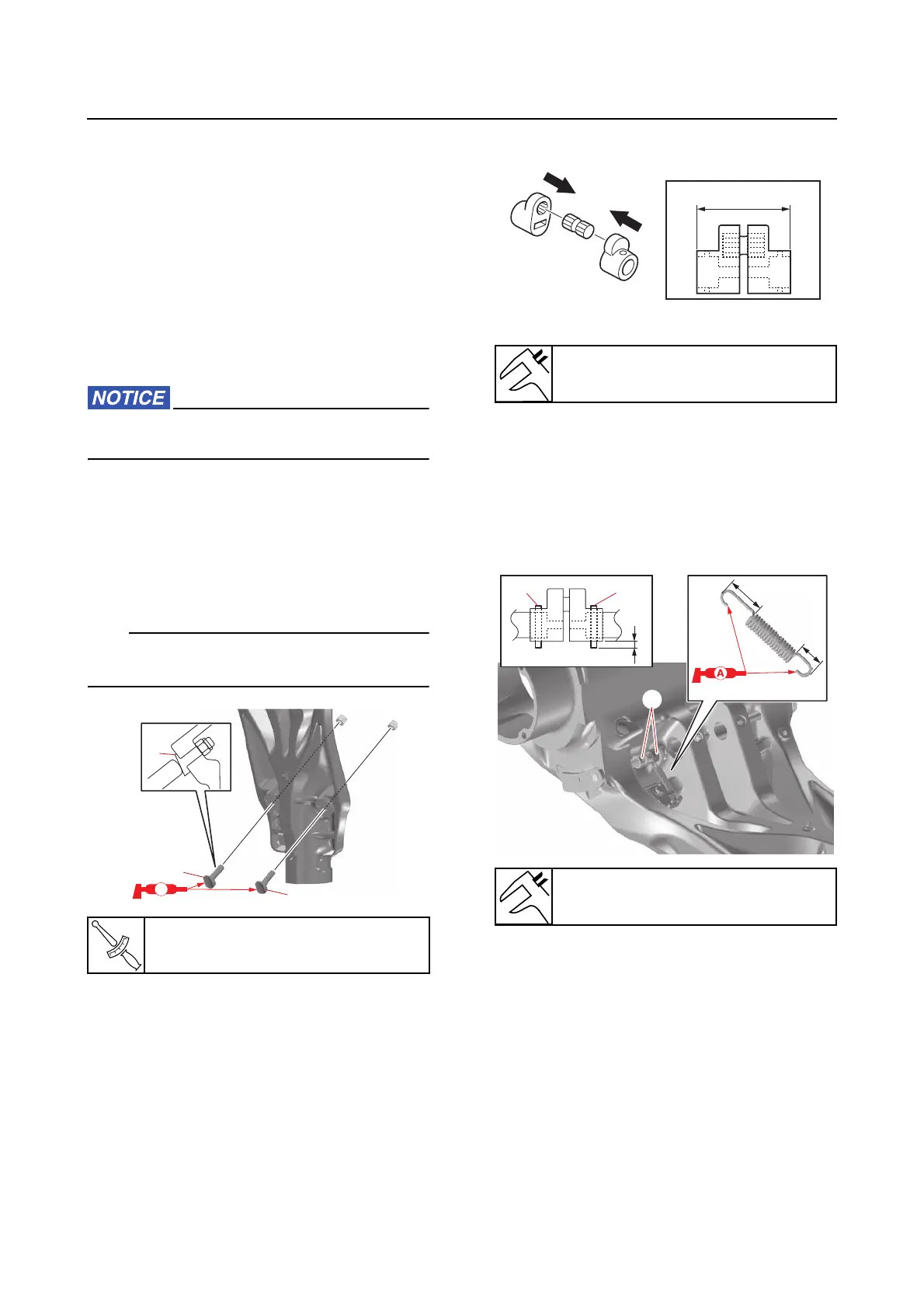

Assembling the swivel bracket
1. Install:
•Grommets
• Grease nipples
• Trim stoppers “1”
TIP:
Install the trim stoppers “1” in the direction
shown.
2. Assemble:
•Pin
• Distance collars
3. Install:
• Bushings
• Tilt support levers
• Distance collar assembly
•Pins “1”
•Hook
• Spring
Installing the clamp bracket
1. Install:
•Brackets
• Grease nipples
• Clamp brackets
• Bushings
• Clamp bracket anode
•Plates
• Ground lead
T
R
.
.
Grease nipple
3.0 N·m (0.30 kgf·m, 2.2 lb·ft)
1
1
1
DD
Distance “a”
30.3–30.6 mm (1.19–1.20 in)
Distance “a”
2.5–3.5 mm (0.10–0.14 in)
a
1
1
a
b
b>c
c
1
