3-4

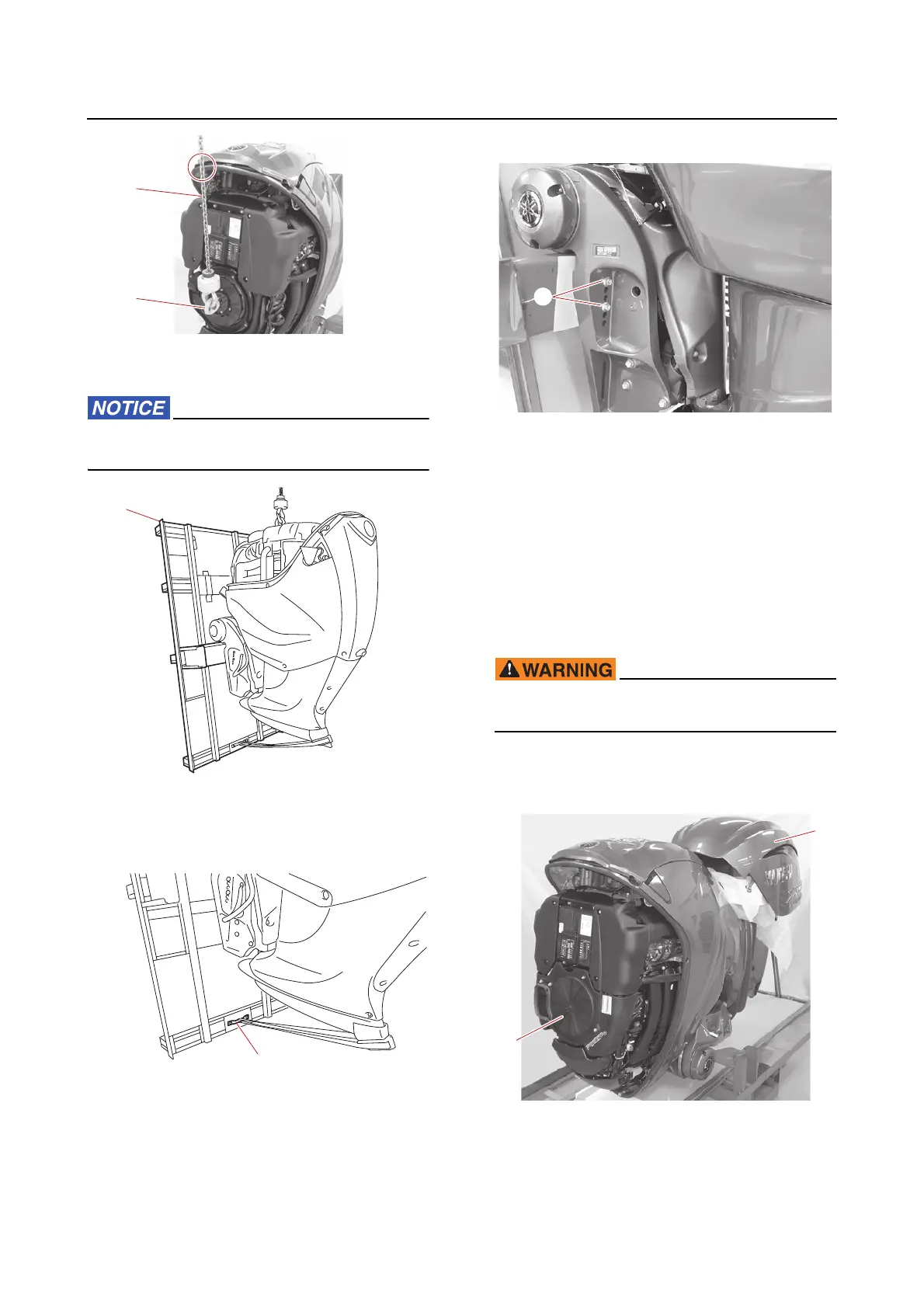

Uncrating
8. Lift up the outboard motor carefully along
with the bottom frame “1”.
Make sure that the lifting harnesses do not
damage any parts of the outboard motor.
9. Remove:
•Skeg holder “1”
• Mount bolt “2”
• Bottom frame
Uncrating procedure (outboard motor
with lower unit)
This procedure includes only the information
that is different from the information in the pro-
cedure for the outboard motor without the
lower unit. For the procedure of unpacking
and lifting up the outboard motor, see “Un-
crating procedure (outboard motor without
lower unit)” (3-3).
Wear gloves to avoid injury from sharp
steel edges while uncrating.
1. Remove:
• Top cowling “1”
•Shroud cover “2”
2. Remove:
•Skeg holder “1”
• Mount bolts “2”
• Bottom frame
To Next Page
