Uncrating
3-5
3. Mount:
•Outboard motor
(to the boat or maintenance stand)
See “Installing the outboard motor” (3-8).
4. Remove:
• Lifting harness
• Special service tool

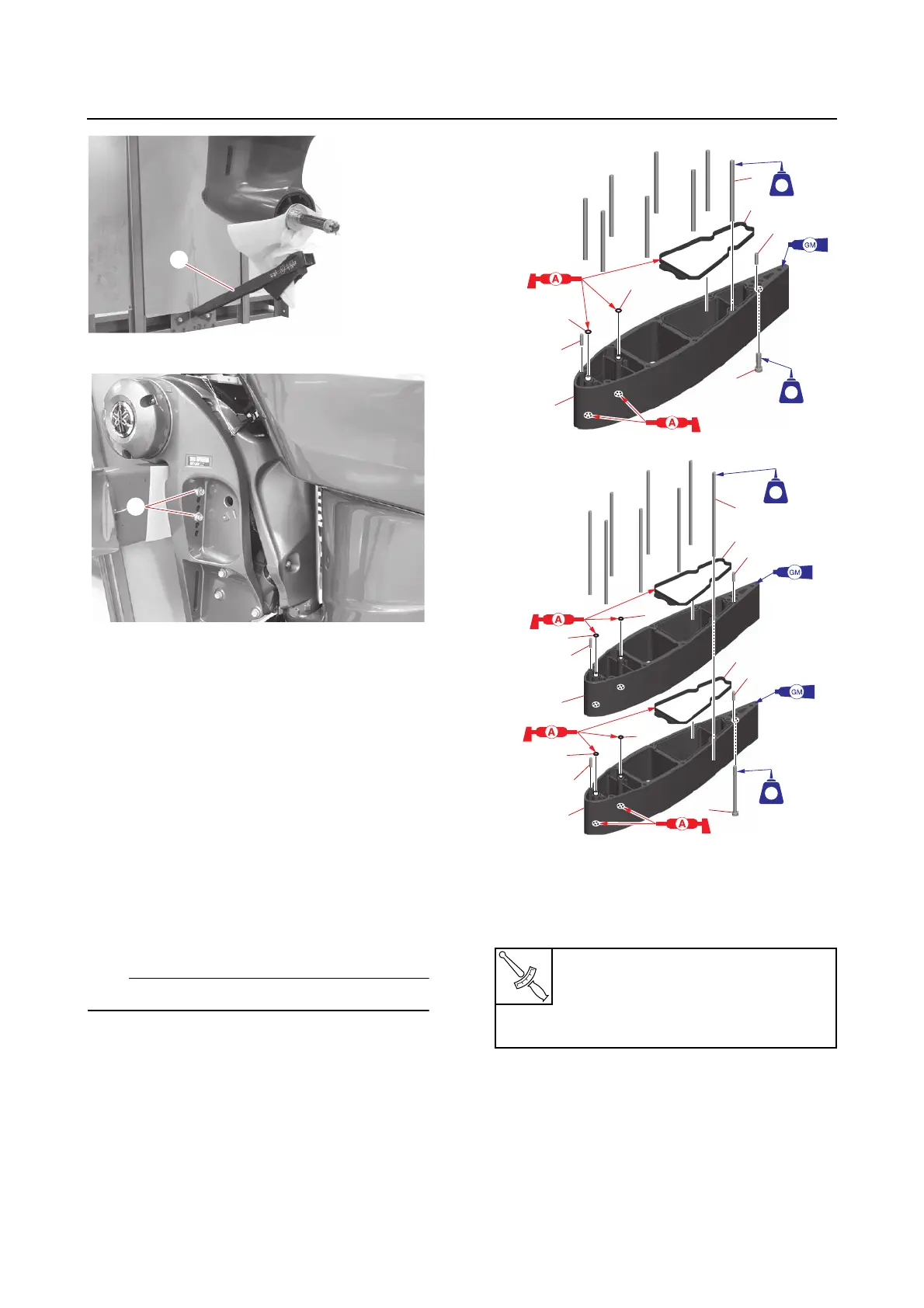

5. Install (for U- or E-transom model):
• Stud bolts “1”
•Dowels “2”
•Rubber seal “3”
•O-rings “4”
•Extension “5”
• Extension mounting bolt “6”
TIP:
Point the flat end of the stud bolt up.
A
B
6. Install:
• Water pipe
•Dowel
• Lower unit
• Lower unit mounting bolts (for X-transom
model)
• Washers (for U- or E-transom model)
1
2
A. U-transom model
B. E-transom model
*. Use white sealant for white-colored
units.
T
R
.
.
Stud bolt “1”
23 N·m (2.3 kgf·m, 17 lb·ft)
Extension mounting bolt “6”
42 N·m (4.2 kgf·m, 31 lb·ft)
572572
LTLT
572572
LTLT
4
1
4
2
5
6
2
3
**
572572
LTLT
572572
LTLT
4
2
5
6
2
3
4
4
2
5
2
3
1
4
**
**
