6-27

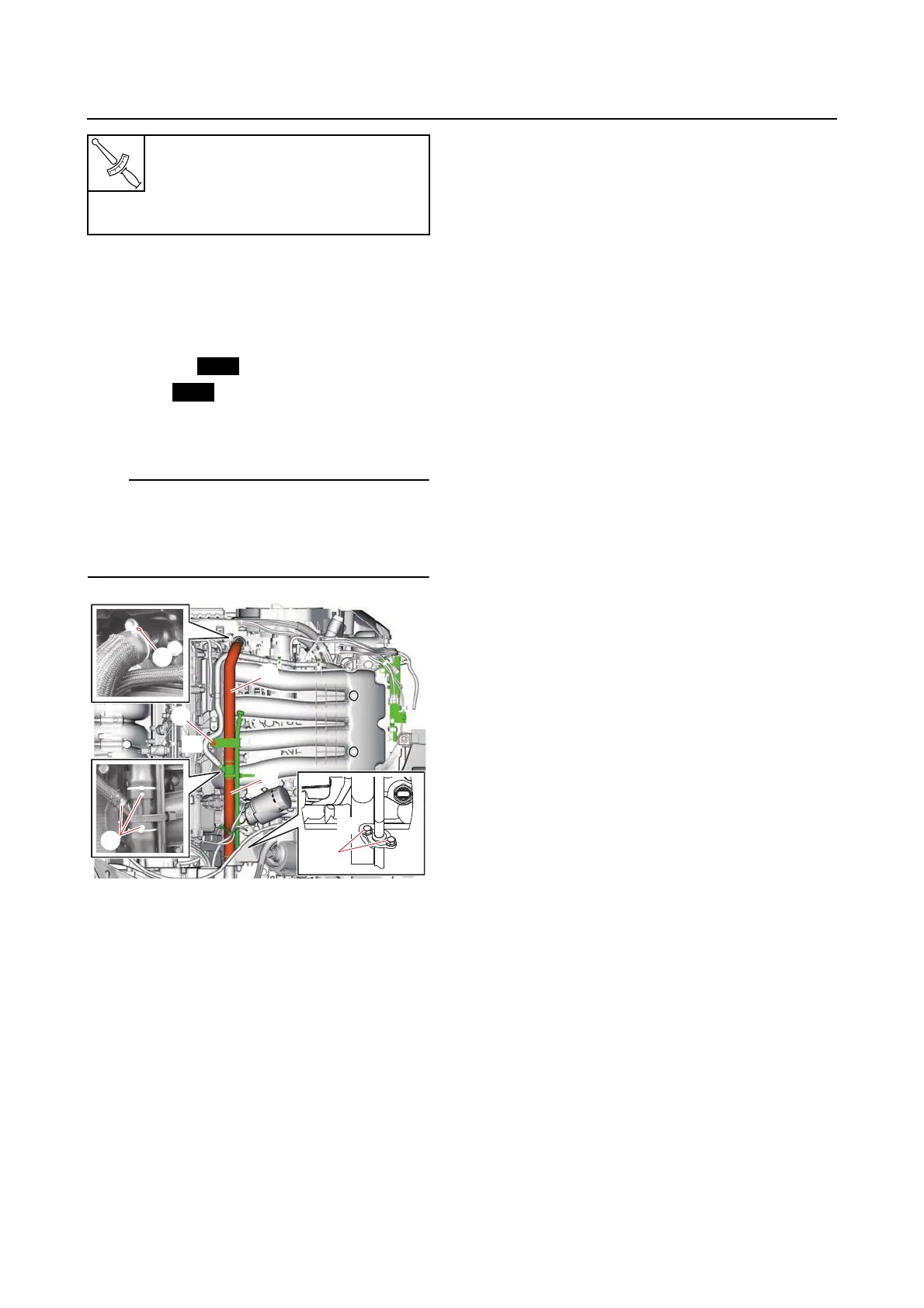

Intake manifold
5. Install:
•Holder
Bracket
Hose “1”, “2”
•Joint
•Plastic tie
•O-ring
Dipstick guide
•Oil dipstick
TIP:
Make sure that the paint marks “a” on the
cooling water hoses face outward.
Tighten the dipstick guide bolts “3” in the or-
der [1], [2], and so on.
T
R
.
.
Intake manifold bolt “1” (M8)
24 N·m (2.4 kgf·m, 18 lb·ft)
Intake manifold bolt “2” (M6)
11 N·m (1.1 kgf·m, 8.1 lb·ft)
New
New
3
[2][2]
[1][1]
a
a
3
[3][3]
1
2
