Yamaha F400A 2022 - Page 407

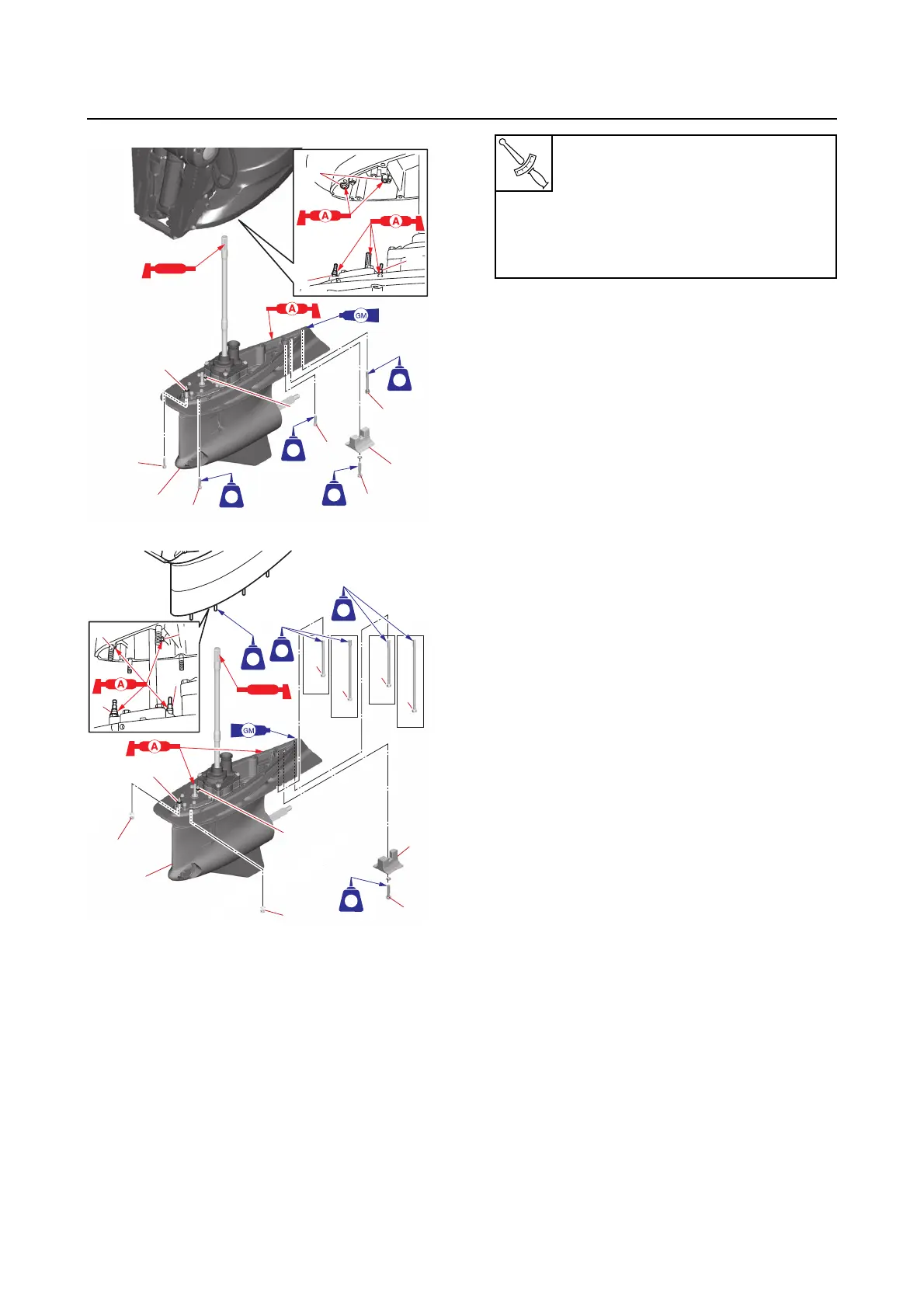

Lower unit
8-8
A
B
A. X-transom model
B. U-transom and E-transom model
C. U-transom model
D. E-transom model
*. Use white sealant for white-colored
units.
2
a
3
3
6
3
1
4
4
4
4
3
572572
LTLT
572572
LTLT
572572
LTLT
572572
LTLT
**
WR-No.2WR-No.2
D
4
4
C
D
4
4
a
a
C
6
2
5
1
5
3
3
3
3
572572
LTLT
572572
LTLT
572572
LTLT
572572
LTLT
**
WR-No.2WR-No.2
T
R
.
.
Lower case mounting bolt “4”
47 N·m (4.7 kgf·m, 35 lb·ft)
Lower case mounting nut “5”
47 N·m (4.7 kgf·m, 35 lb·ft)
Lower case anode bolt “6”
42 N·m (4.2 kgf·m, 31 lb·ft)
