Yamaha F400A 2022 - Page 423

Propeller shaft housing (regular rotation model)
8-24
3. Install:
•Oil seals

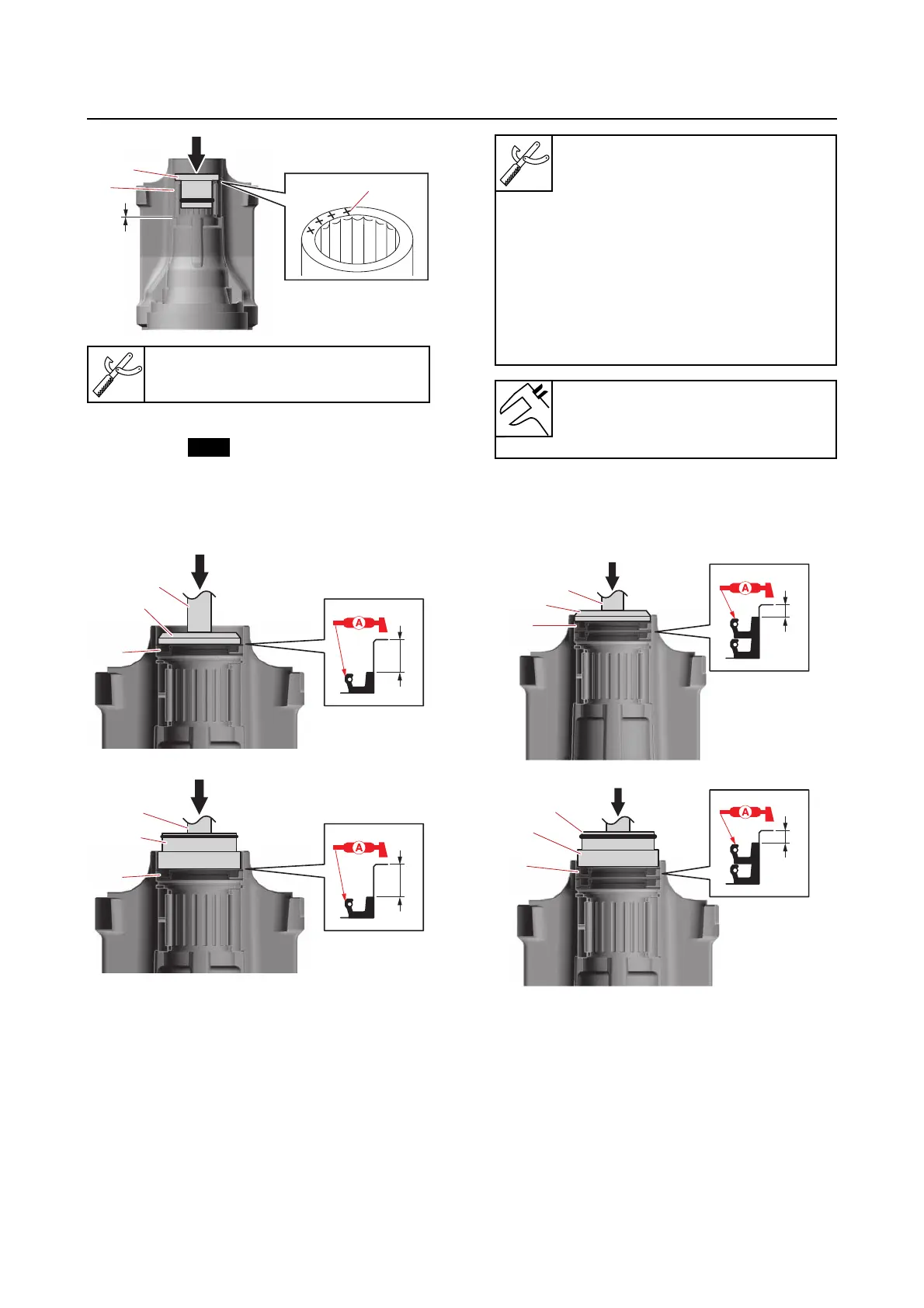

a. Install a new oil seal “1” in the propeller
shaft housing at the specified installa-
tion depth “a”.
A
B
b. Install a new oil seal “1” in the propeller
shaft housing at the specified installa-
tion depth “a”.
A
B
Needle bearing attachment “2”
90890-06933
A. Worldwide
B. USA and Canada
2
1
a
New
2
a
3
1
4
a
5
1
Driver rod LS “2”
90890-06606
Bearing outer race attachment
“3”
90890-06623
Driver handle (large) “4”
YB-06071
Forward gear bearing cup install-
er “5”
YB-06277-A
Installation depth “a”
12.25–12.75 mm (0.482–0.502
in)
A. Worldwide
B. USA and Canada
1
3
2
a
1
5
4
a
