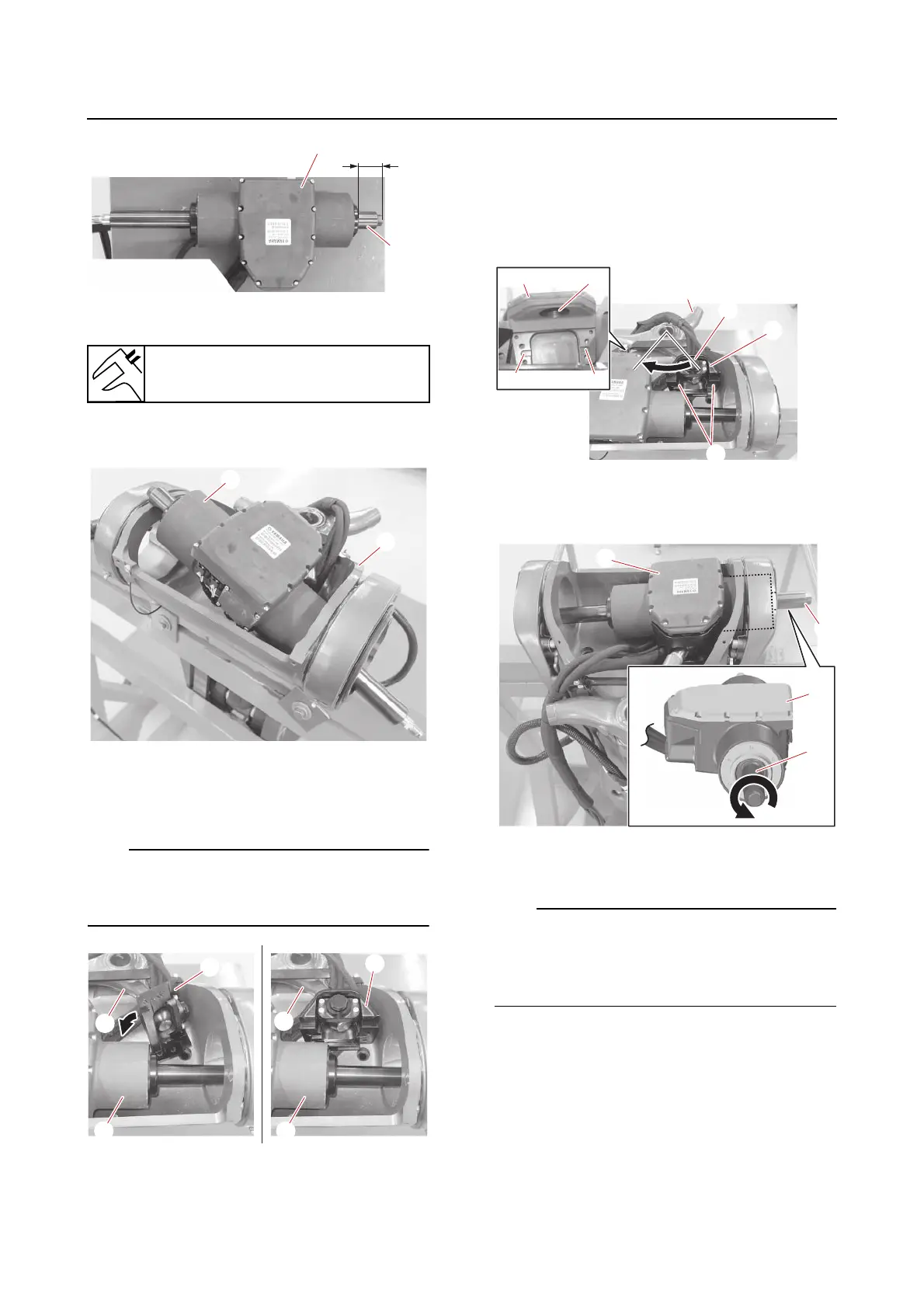

Steering actuator and steering arm
b. Install the steering actuator “1” to the
swivel bracket “2”.
c. Install the steering arm joint “a” onto
the steering arm “1”, and then turn the
steering arm joint “a” as shown.
TIP:
Move the steering actuator “2” to the star-
board side as shown to create space for in-
stalling the steering arm joint “a”.
d. Move the steering arm “1” in the direc-
tion of the arrow, fit the protrusions “a”
and “b” on the steering arm joint “c”
into the hole “d” and slots “e” in the
steering actuator “2”, and install the
steering arm joint to the steering actu-
ator.
e. Install the steering arm joint bolts tem-
porarily.
f. Turn the shaft “a” of the steering actu-
ator “1” counterclockwise to position
the shaft in the center steering position.
g. Install the steering actuator brackets
“1” and “2”.
TIP:
Install the steering actuator bracket “1” with
the smaller center hole on the port side, and
install the steering actuator bracket “2” with
the larger center hole on the starboard side.
