9-68
PTT cylinder

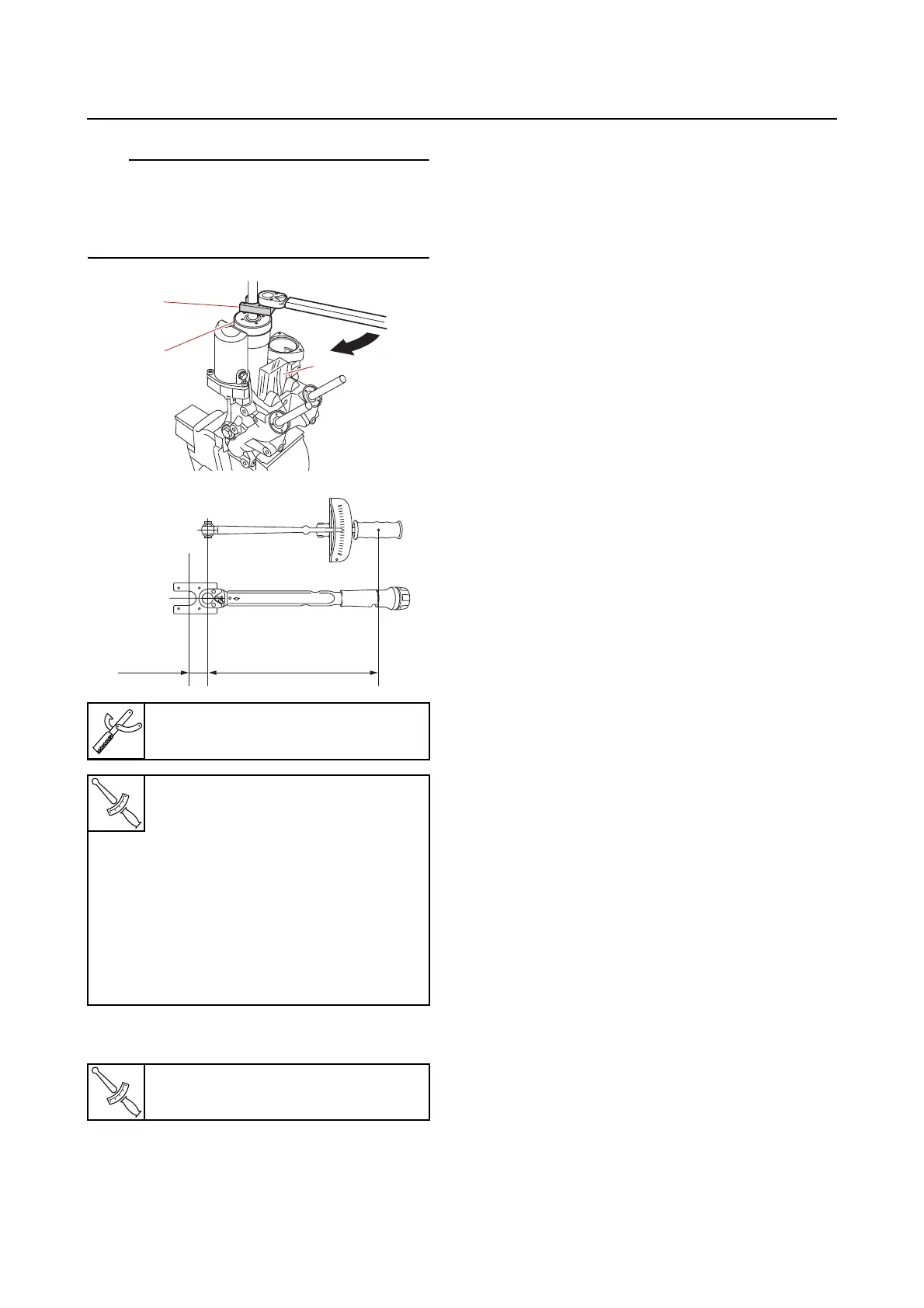

TIP:
Place a block of wood “a” between the tilt cyl-
inder and the PTT body to secure the tilt cylin-
der when tightening the tilt cylinder end screw
“1”.
7. Install:
•Pipe
8. Install:
•PTT motor
See “Installing the PTT motor” (9-55).
Cylinder end screw wrench “2”
90890-06958
T
R
.
.
Torque wrench setting value = 150
N·m ÷ (A + 0.031) × A
150 N·m (15 kgf·m, 111 lb·ft)
Specified tightening torque for
the tilt cylinder end screw
0.031 m
Cylinder end screw wrench
length
A m
Torque wrench length
T
R
.
.
Pipe joint
15 N·m (1.5 kgf·m, 11 lb·ft)
1
2
a
A m
0.031 m
