EasyConnect RCT 1.0
Humphrey Field Analyzer II-
i
series User Manual 2660021145640 A
G-38

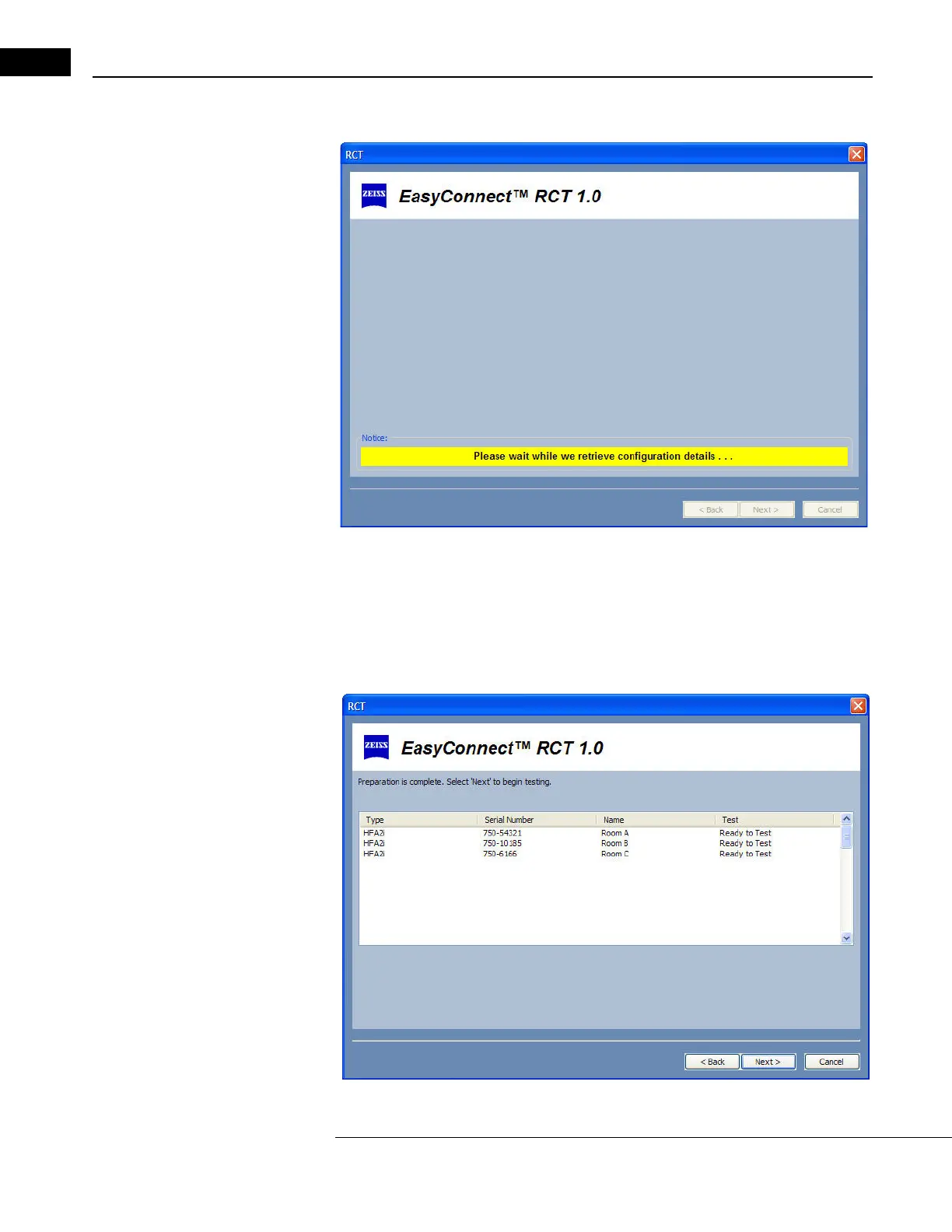

The RCT displays a message alerting you there will be a delay before proceeding (Figure G.46).
Figure G.46 Please Wait Message
3 A Ready to Test screen will be displayed (Figure G.47 and Figure G.48). Select NEXT to begin
testing your configured instrument
s, one at a time. Figure G.49 shows a connection test in
progress for the first instrument configured. When an instrumen
t has finished testing, the entry
in the Test column changes to either “PASSED” or “FAILED.” Keep selecting
NEXT until all
instruments have completed testing.
Figure G.47 Configuration Complete in Test Mode – Ready to Test
