Dolby
®
IMS2000 Installation and User’s Manual
IMS.OM.004730.DRM Issue 3 89
Seven Channels
This configuration is defined as follows:
•
Ch.01 is L/Left: Output Ch.01 plays the CPL Left (L) audio channel.
•
Ch.02 is R/Right: Output Ch.02 plays the CPL Right (R) audio channel.
•
Ch.03 is C/Center: Output Ch.03 plays the CPL Center (C) audio channel.
•
Ch.04 is Input: Ch.04 is pass-through, meaning the output channel X play the CPL
audio channel X.
•
Ch.05 is Ls/Left Surround: Output Ch.05 will be playing the CPL Left Surround (Ls)
audio channel.
•
Ch.06 is Rs/Right Surround: Output Ch.06 will be playing the CPL Right Surround
(Rs) audio channel.
•
Ch.07 is Input: Ch.07 is pass-through, meaning the output channel X will be playing
the CPL audio channel X.
•
Ch.08 is Input: Ch.08 is pass-through, meaning the output channel X will be playing
the CPL audio channel X.
• Ch.09 is Cs/Center Surround: Output Ch.09 will be playing the CPL Center Surround
(Cs) audio channel.
•
Ch.10–Ch.14: These channels are pass-through, meaning the output channel X will be
playing the CPL audio channel X. X will be a value between 10 and 14.
•
Ch.15 is H/Hearing Impaired: Output Ch.15 plays the CPL hearing impaired audio
channel.
•
Ch.16 is VI-N/Narration: Output Ch.16 plays the CPL narration/visually impaired
audio channel.

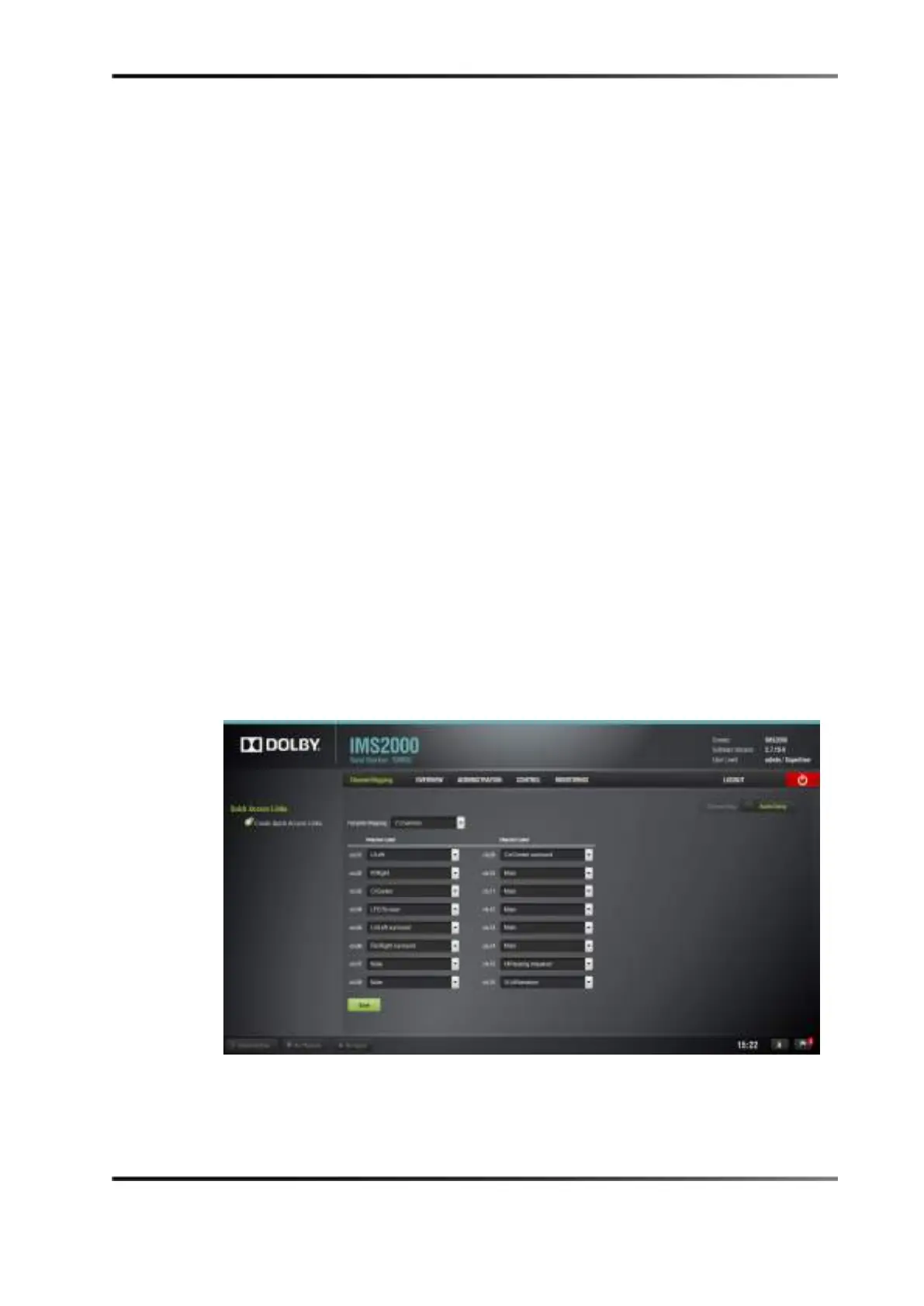

Figure 13-6 Audio Mapping Set to Seven Channels
