90 Dolby
®
IMS2000 Installation and User’s Manual
IMS.OM.004730.DRM Issue 3
Eight Channels
This configuration is defined as follows:
•
Ch.01 is L/Left: Output Ch.01 plays the CPL Left (L) audio channel.
•
Ch.02 is R/Right: Output Ch.02 plays the CPL Right (R) audio channel.
•
Ch.03 is C/Center: Output Ch.03 plays the CPL Center (C) audio channel.
•
Ch. 04 is LFE/Screen: Output Ch.04 plays the CPL LFE (screen) audio channel.
•
Ch.05 is Ls/Left Surround: Output Ch.05 plays the CPL Left Surround (Ls) audio
channel.
•
Ch.06 is Rs/Right Surround: Output Ch.06 plays the CPL Right Surround (Rs) audio
channel.
•
Ch.07 is Lc/Left Center: Output Ch.07 plays the CPL Left Center (Lc) audio channel.
•
Ch.08 is Rc/Right Center: Output Ch.08 plays the CPL Right Center (Rc) audio
channel.
•
Ch.09–Ch.14: These channels are pass-through, meaning the output channel X plays
the CPL audio channel X. X will be a value between 9 and 14.
•
Ch.15 is H/Hearing Impaired: Output Ch.15 plays the CPL hearing impaired audio
channel.
•
Ch.16 is VI-N/Narration: Output Ch.16 plays the CPL narration/visually impaired
audio channel.

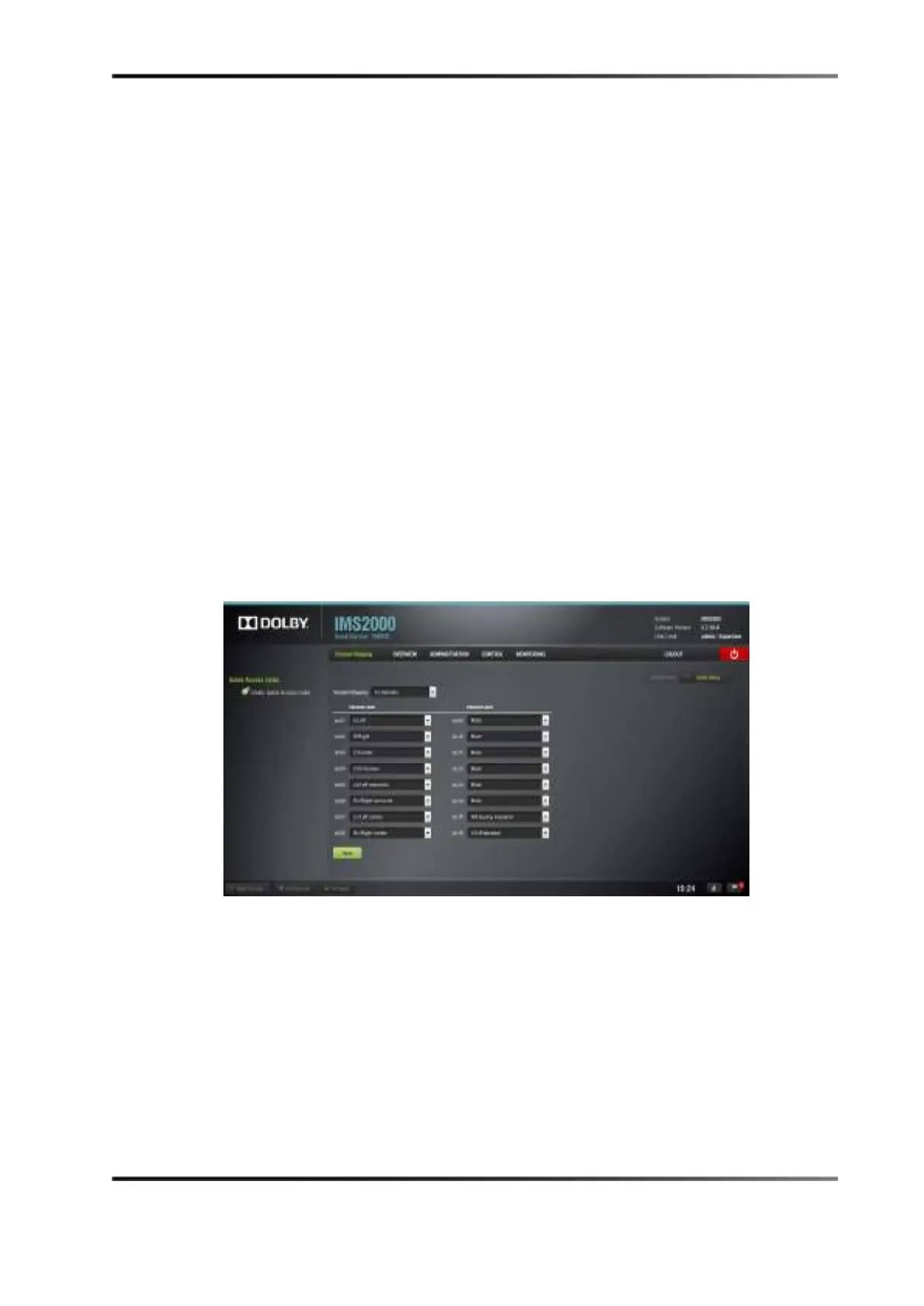

Figure 13-7 Audio Mapping Set to Eight Channels
