Dolby

IMS2000 Installation and User’s Manual

IMS.OM.004730.DRM Issue 3 31

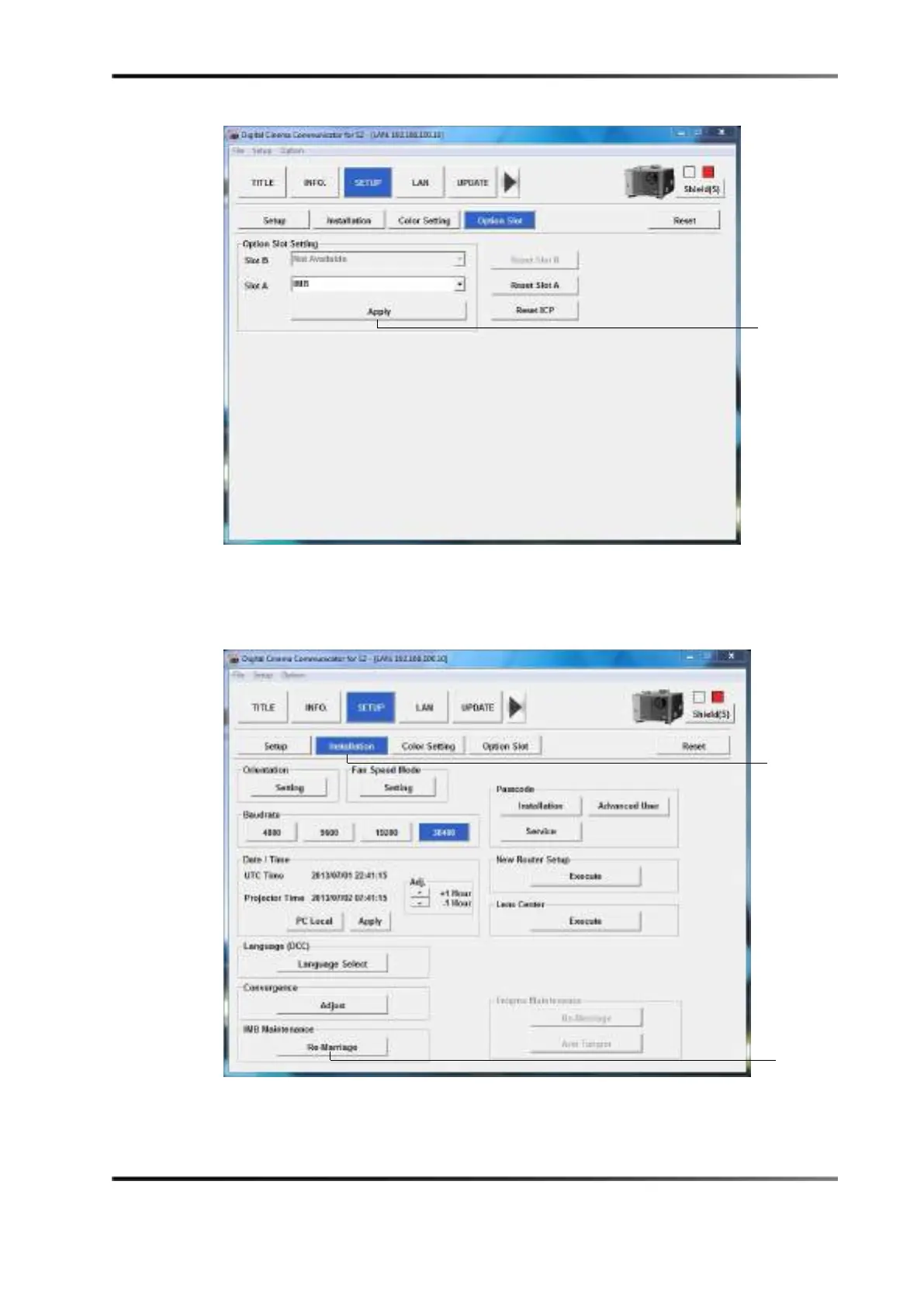

Figure 5-31 Option Slot Window

8. Click on the Installation button.

9. Click on the

Re-Marriage button.

Figure 5-32 Remarriage Button

Apply

button

Installation

button

Remarriage

button
