44 Dolby
®
IMS2000 Installation and User’s Manual
IMS.OM.004730.DRM Issue 2
4. To ensure that the marriage was completed correctly, on the IMS2000 GUI, select
Monitoring >Diagnostics> MediaBlock.
The
MediaBlock window appears.
5. Verify the following in the
Security Manager section of the MediaBlock window:
• Status: Green
•
Physical Marriage: Active
•
Logical Marriage: Engaged
•
Active Marriage: Active

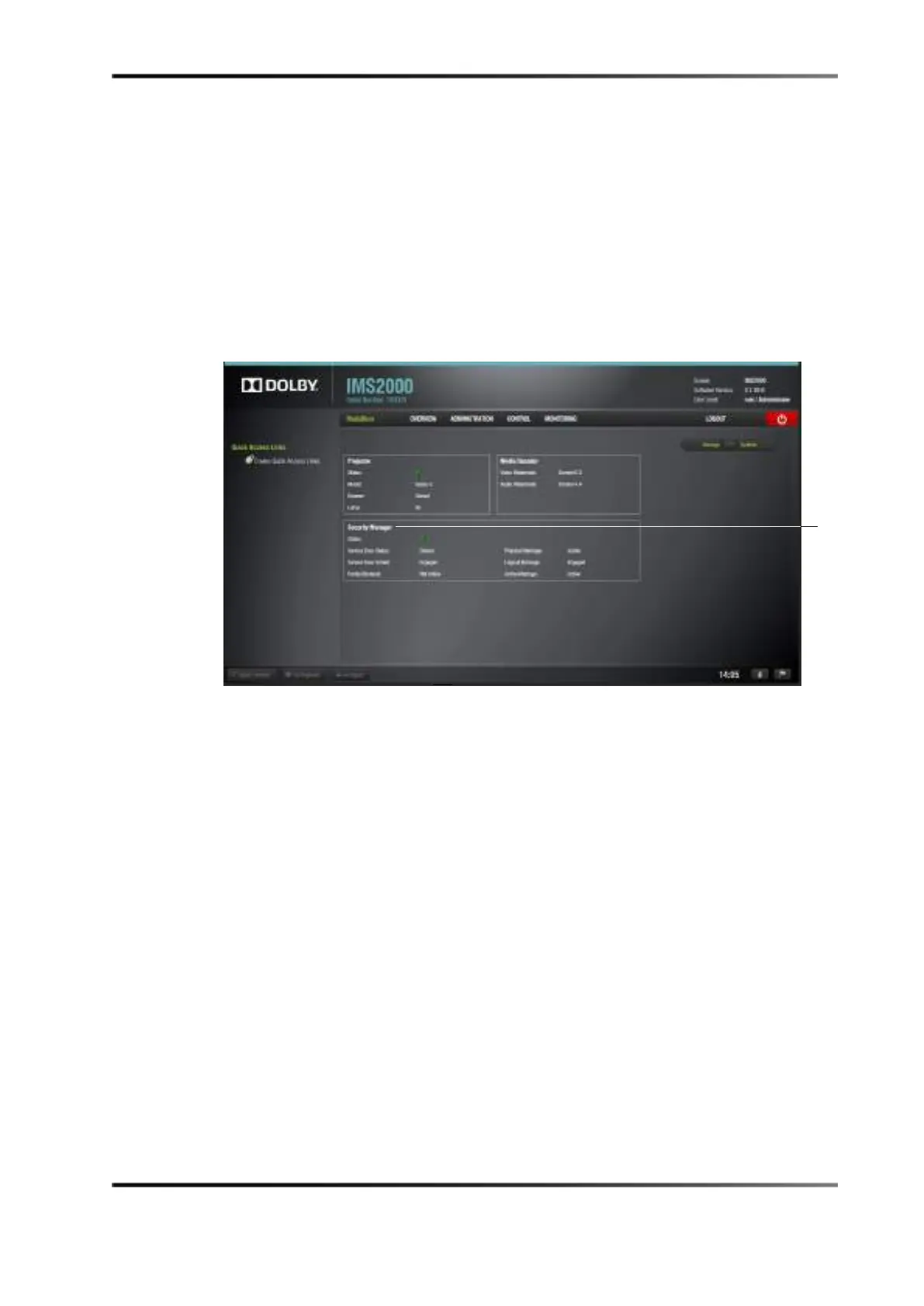

Figure 6-19 Security Manager Section
Marriage has now been completed.
Manager
Section
