491098/1098S - M.Y. 2007 - edition 00
Use and maintenance

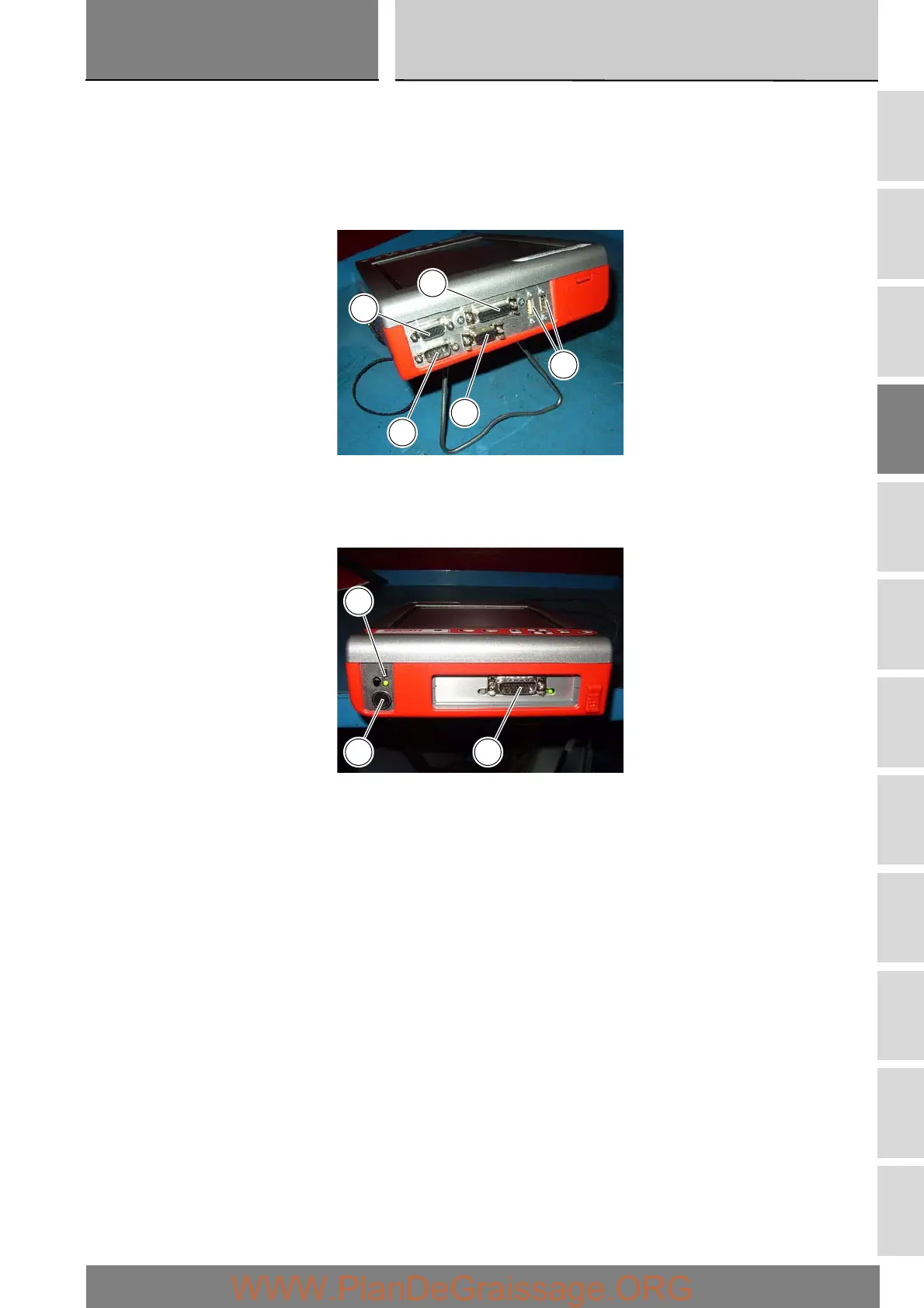

The display unit is equipped with two connection panels: one at the top of the instrument and one at the bottom.
The top connection panel has 6 connection sockets with the following functions:
- one VGA output (E);
- one port for connection of the measurement module (F);
- one RS232 serial port for connection of peripheral devices (COM1) (G);
- a second RS232 serial port for connection of peripheral devices (COM2) (H);
- two generic USB ports (USB1 and USB2) (L).
The bottom connection panel has 3 connection sockets with the following functions:
- one USB port (M);
- one power connection socket (N);
- one diagnostics connection socket (P).
You can connect a printer to the DDS tester (1) to print test reports: connect the printer to the serial port (COM1) (G) located on
the top connection panel of the tester (1).
Technical data
Power supply:
- mains - 220 V;
- from motorcycle battery - 12 V.
Components supplied with the DDS tester
The DDS tester (1) is supplied in a kit together with the following items:
- Rechargeable DDS battery
- Battery charger
- Mains power adapter
- USB memory card reader
- Power and diagnostic cable complete with fuse
- CD containing DDS installation software for PC
- USB cable
- Belt tension sensor
