Ducati 1098 2007 - 8 - Exhaust system

A
B
C
D
E
F
G
H
L
M
N
P
section
L 8
32 1098/1098S - M.Y. 2007 - edition 00
Fuel / Exhaust System

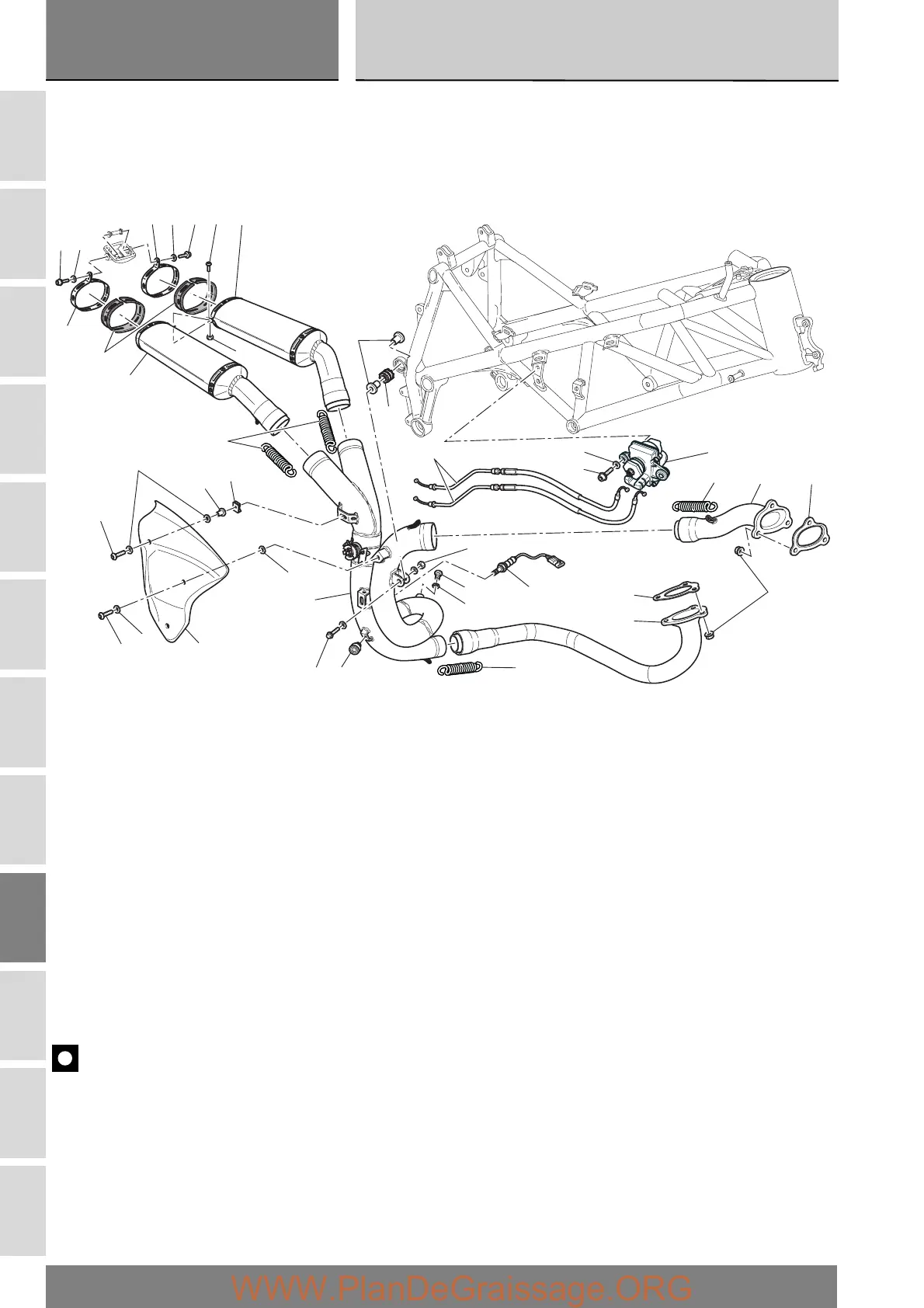

8 - Exhaust system
1Nut
2 Exhaust gasket
3Spring
4 Horizontal cylinder head exhaust pipe
5 Rubber mounting
6 Spacer
7Bolt
8Nut
9 Exhaust manifold
10 Bolt
11 Lambda sensor
12 Seal
13 Quick-release fastener
14 Right-hand clamp
15 Left-hand clamp
16 Clamp rubber
17 Bolt
18 Nut
19 Washer
20 Cables assembly
21 Vertical cylinder head exhaust pipe
22 Heat shield
23 Washer
24 Bolt
25 Plug
26 Spacer
27 Washer
28 Rubber
29 Left-hand silencer
30 Right-hand silencer
31 Exhaust valve motor
32 Washer
33 Bolt
Important
Bold reference numbers in this section identify parts not shown in the figures next to the text. Refer to the exploded view
diagram.
1019
14
16
30
3
24
22
24
23
728
3
12
25 11
2
293
31
32
20
5
6
33
4
1
18
21
27
23
26
13
10 17 29
8
1915
1
