Fairings
Removal of the side fairings

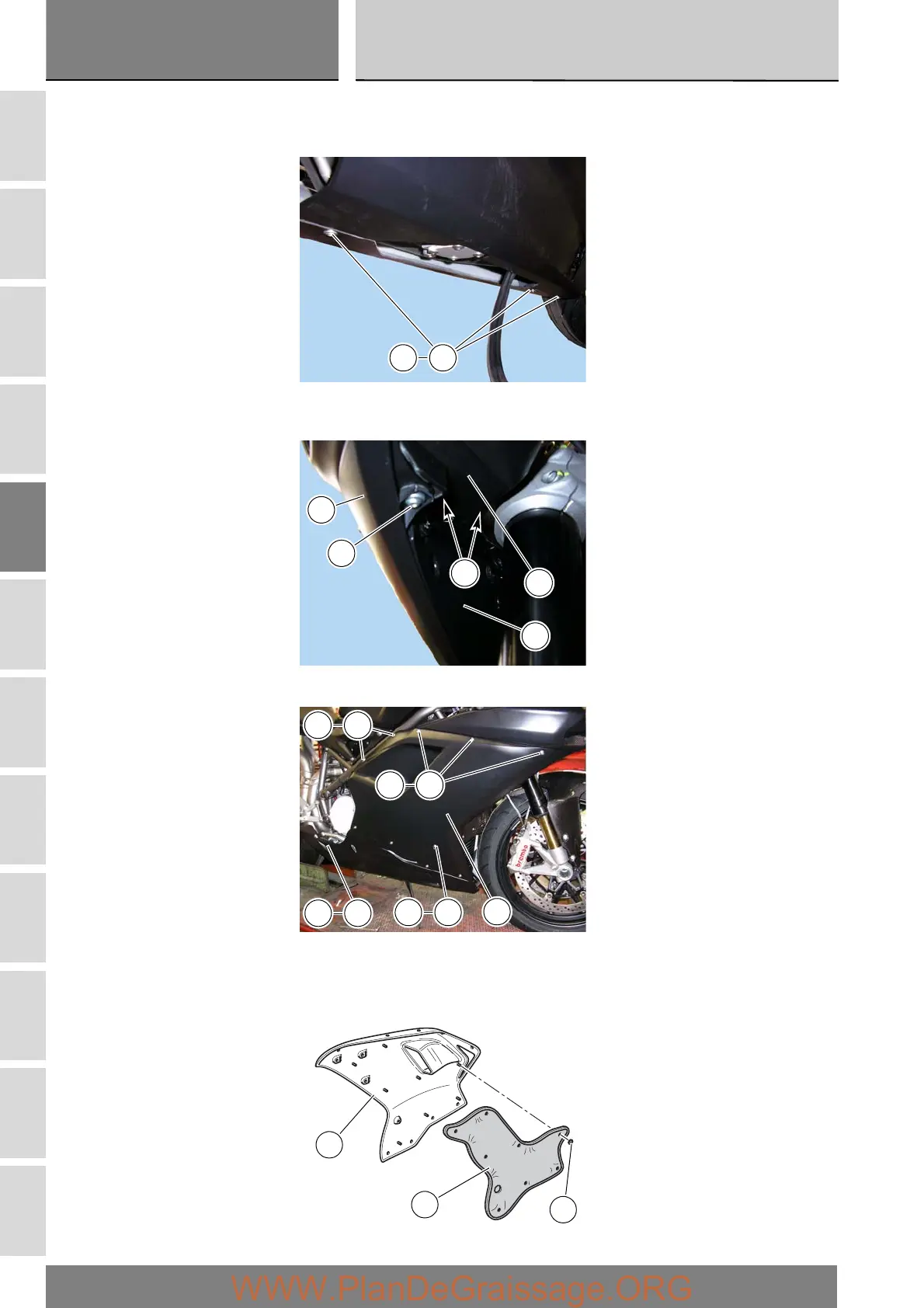

Unscrew the screws (22) securing the bottom of the fairing panels, recovering the washers (21).
Unscrew the inner screw (19) securing the front of the right upper fairing (11). Unscrew the inner screws (19) securing the
splashguard (A) to the inner panel (3).
Unscrew the screws (22) and (19) securing the right upper fairing (11) to the bike, recovering the washers (21) and (18).
Remove the right side fairing assembly from the motorcycle.
Proceed in the same way with the left side fairing, withdrawing the sidestand through the aperture in the fairing.
To remove the soundproofing panels (7) and (8), remove the clips (1).
