section
N 4.2
60 1098/1098S - M.Y. 2007 - edition 00
Engine

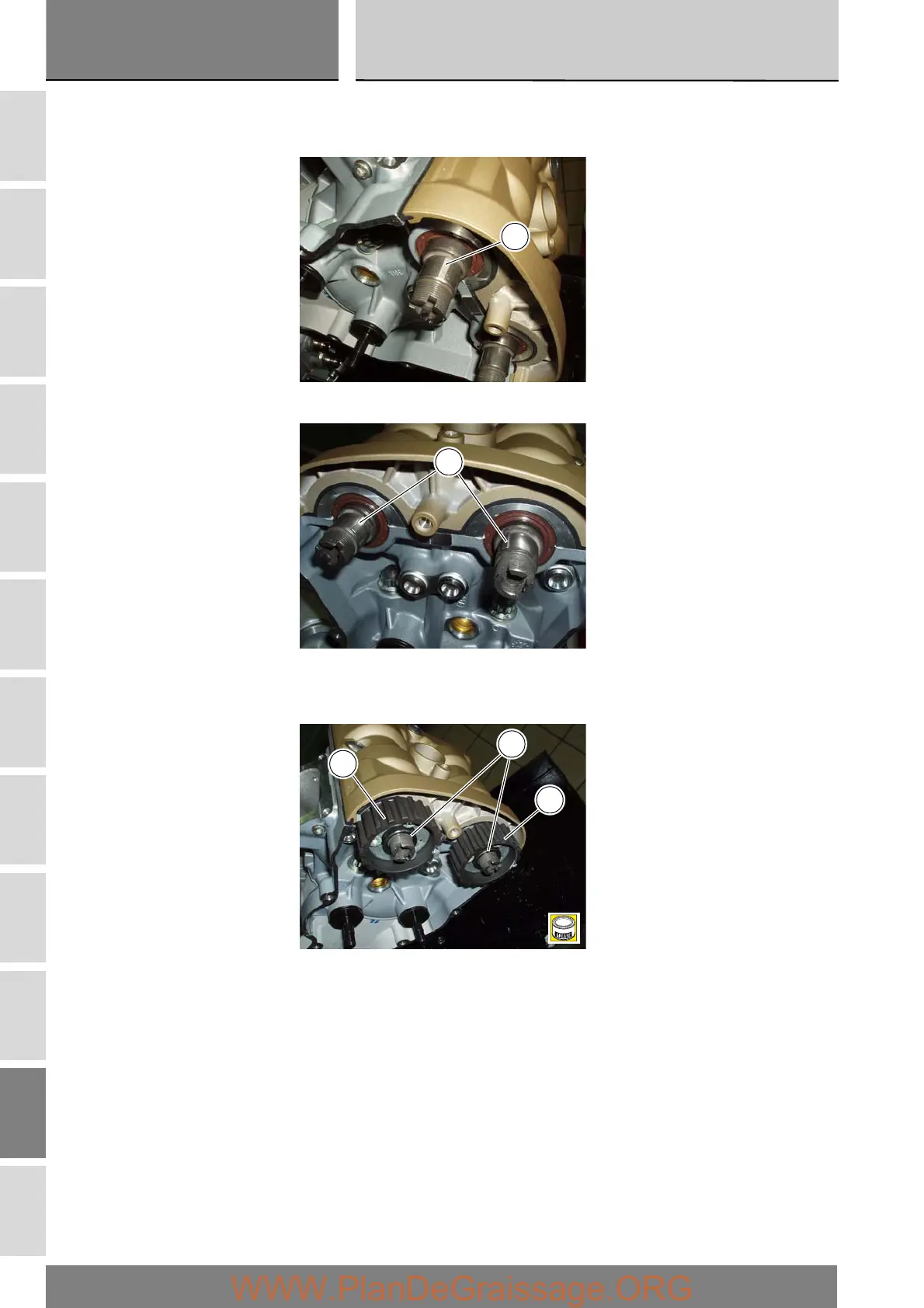

Refitting the camshaft pulley/idler pulley
Check that the keyway on the end of the camshaft is in good condition and without burrs.
Fit a Woodruff key in the keyway of each camshaft.
Fit the pulley (11) on the camshaft, inserting the Woodruff key in the in the slot (C) in the pulley.
Apply the recommended grease to the threads on the end of the camshaft.
Repeat the procedure on the other camshaft.
A
B
A
C
11
11
