80 1098/1098S - M.Y. 2007 - edition 00
Engine
Removal of the valves

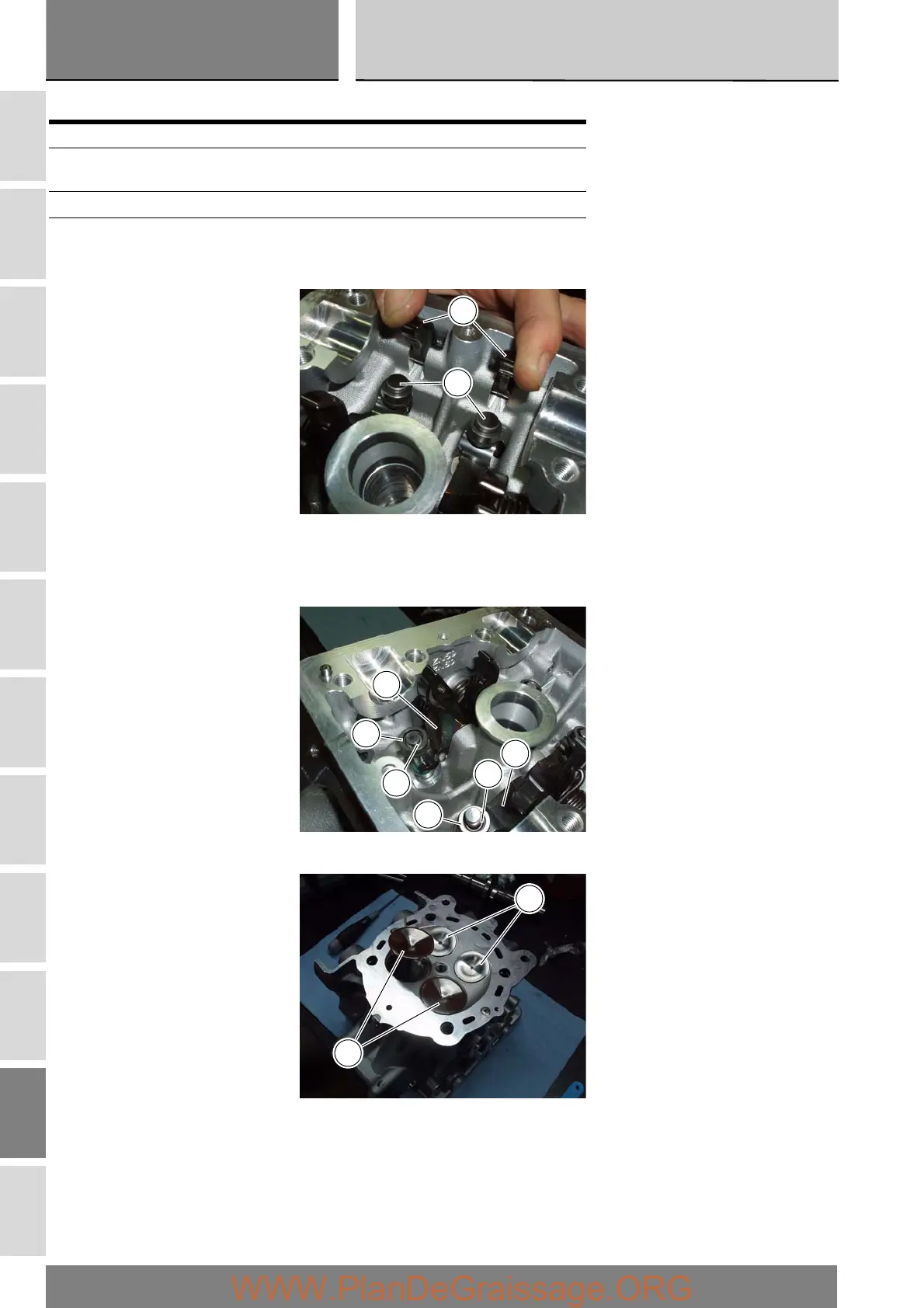

Raise the rocker arm (3) and remove the opening shim (5) from the valves with a pair of pliers (A).
Push down the closing rocker arms (16) and (4) and the closing shim (7).
Remove the half rings (6) from the valves with a magnetic screwdriver. Extract the closing shims (7) from the valve using a pair
of pliers.
Withdraw the valves (14) and (11) from underside of the cylinder head.
Repeat the same procedure for the other cylinder head.
Operation Section reference
Remove the cylinder head assembly from
the engine
N4.5
Remove the timing belt pulleys N 4.2
Remove the camshafts N 4.4
3
5
7
6
16
7
6
4
11
14
