Controls - Devices

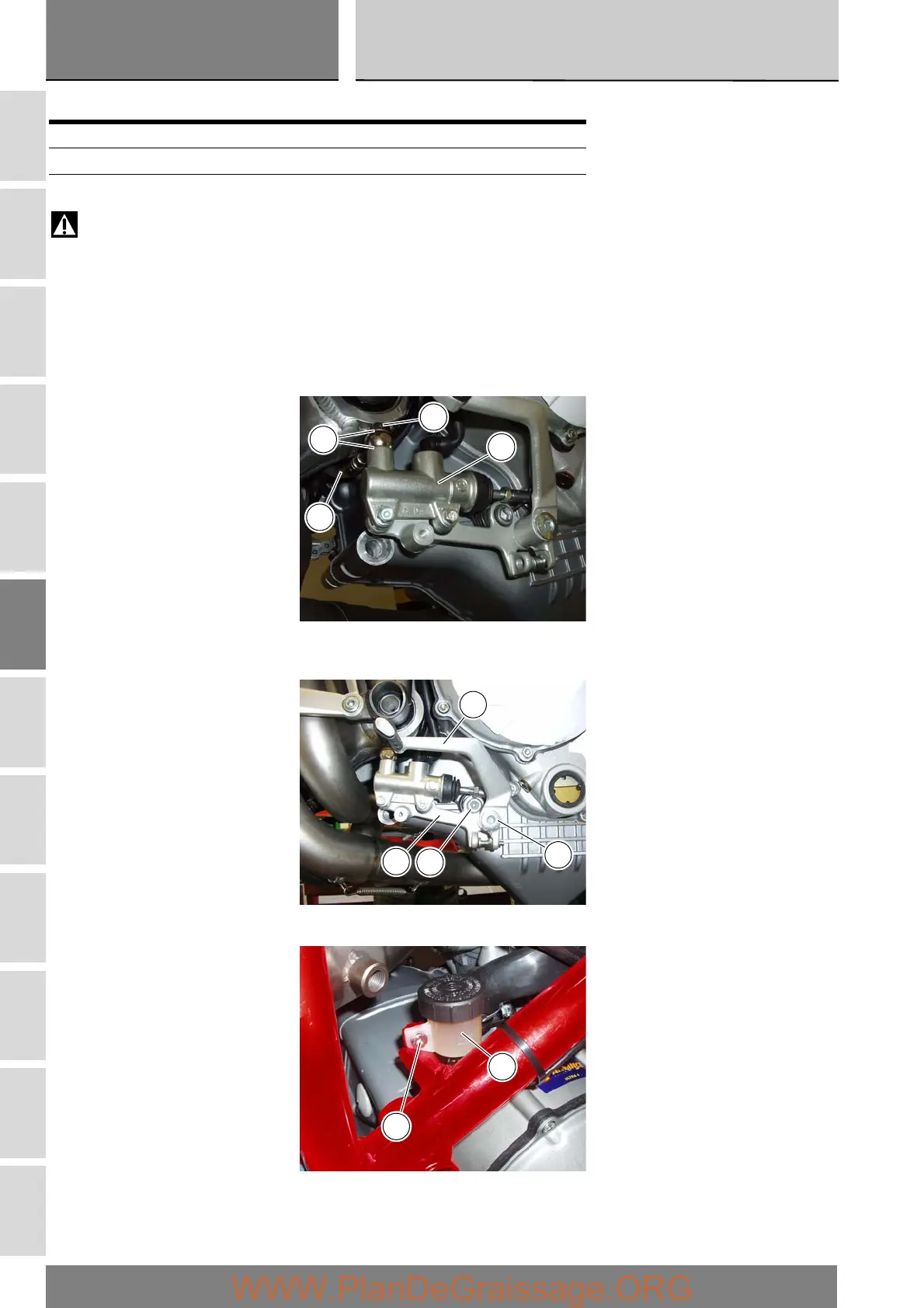

Removal of the complete rear brake control
Warning
The manufacturer of the brake master cylinder advises against the servicing of its internal parts due to the safety critical nature
of this component.
Incorrect overhaul of this critical safety component can endanger the rider and passenger.
Maintenance operations on these units are limited to renewal of the following parts: control lever, fluid reservoir assembly and
relative fasteners and master cylinder fasteners.
Disconnect the rear brake light switch (5) from main wiring (Sect. P 1).
Unscrew the banjo bolt (22) from the master cylinder (16) and withdraw the hose (27). Recover the sealing washers (23).
Unscrew the bolt (2) securing the master cylinder bracket (1) to the engine.
Unscrew the bolt (9) securing the pedal (6) and bracket to the engine.
Remove the brake fluid reservoir (26) complete with the hose (21) from the frame by unscrewing the bolt (24).
Remove the complete rear brake control.
Operation Section reference
Drain the braking system D 4
Remove the right-hand fairing E 2
