N 7.2
162 1098/1098S - M.Y. 2007 - edition 00
Engine
Reassembly of the gearbox
To reassemble the gearbox components, follow the procedure in Sect. N 9.2 relating to reassembly of the engine crankcases.

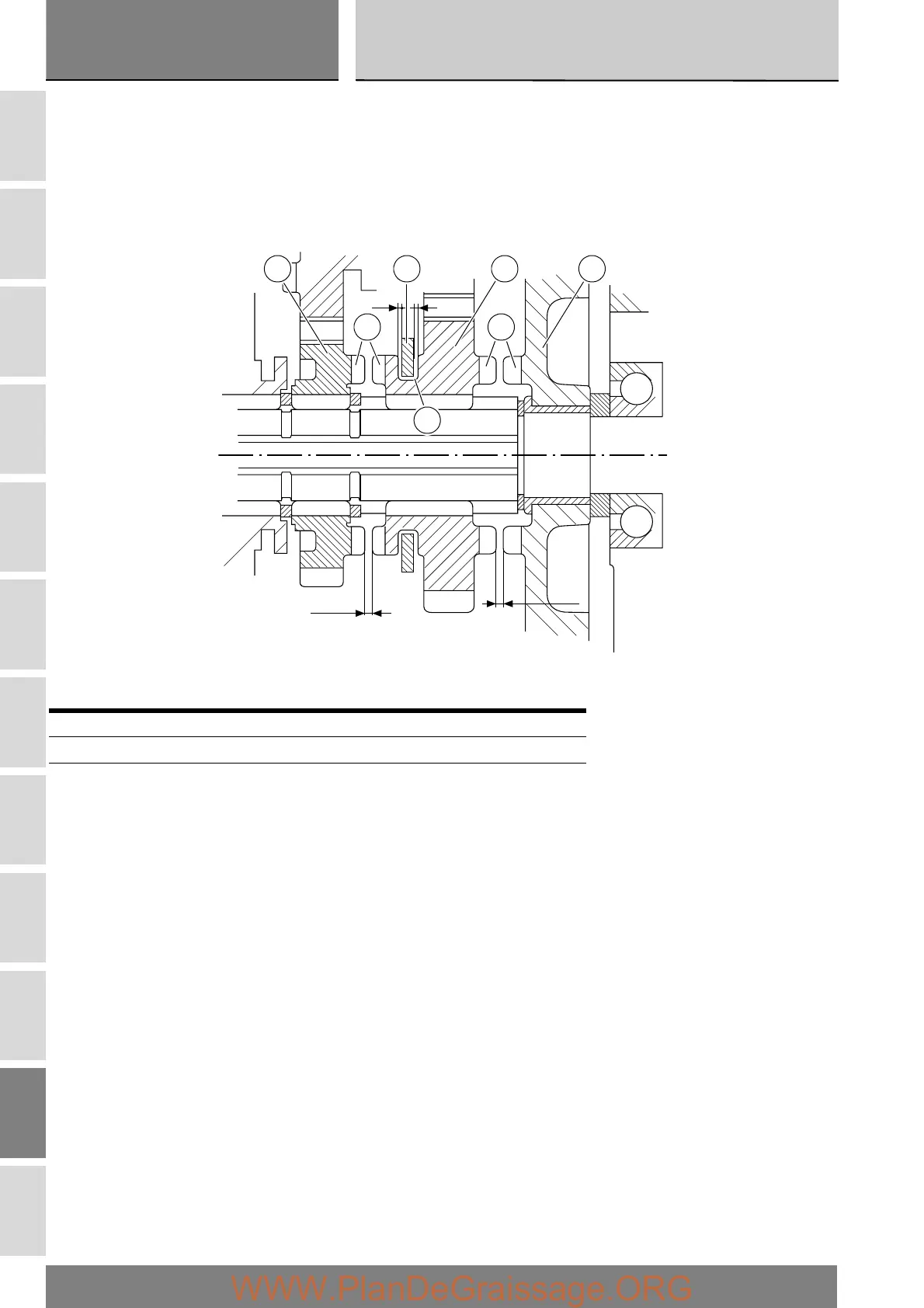

As a final practical test, ensure that with the gearbox in neutral the front coupling dogs (A) of sliding gears (B) are equidistant on
both sides with respect to the corresponding coupling dogs on the fixed gears (C).
Check also that there is always a small amount of clearance between fork (D) and relative groove (E) on sliding gear (B) when
engaging the gears.
Operation Section reference
Reassemble the engine crankcases N 9.2
Refit the engine to the frame N 1
=
=
A A
E
C D B C
