section
N 9.1
192 1098/1098S - M.Y. 2007 - edition 00
Engine

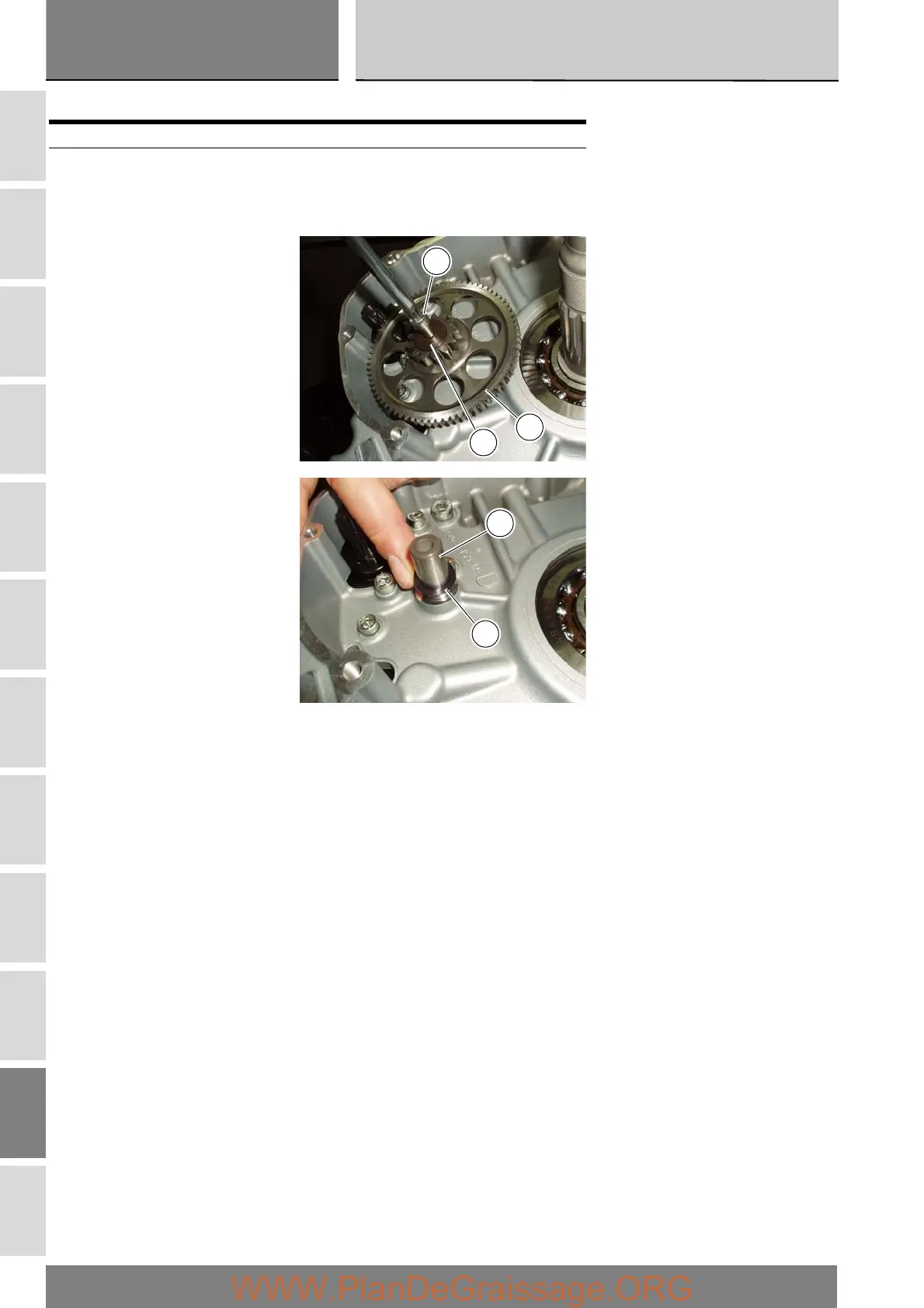

Removal of the starter motor idler gear
Unscrew the bolt (16) and remove the idler gear (19) with the washers (18) and (20) and the shaft (21).
It is now possible to remove the starter motor as described in Sect. P 3.
Operation Section reference
Remove the left-hand crankcase cover
and alternator assembly
N8
16
19
18
21
20
