Ducati 1098 2007 - Removal of the Exhaust System

A
B
C
D
E
F
G
H
L
M
N
P
section
L 8
331098/1098S - M.Y. 2007 - edition 00
Fuel / Exhaust System

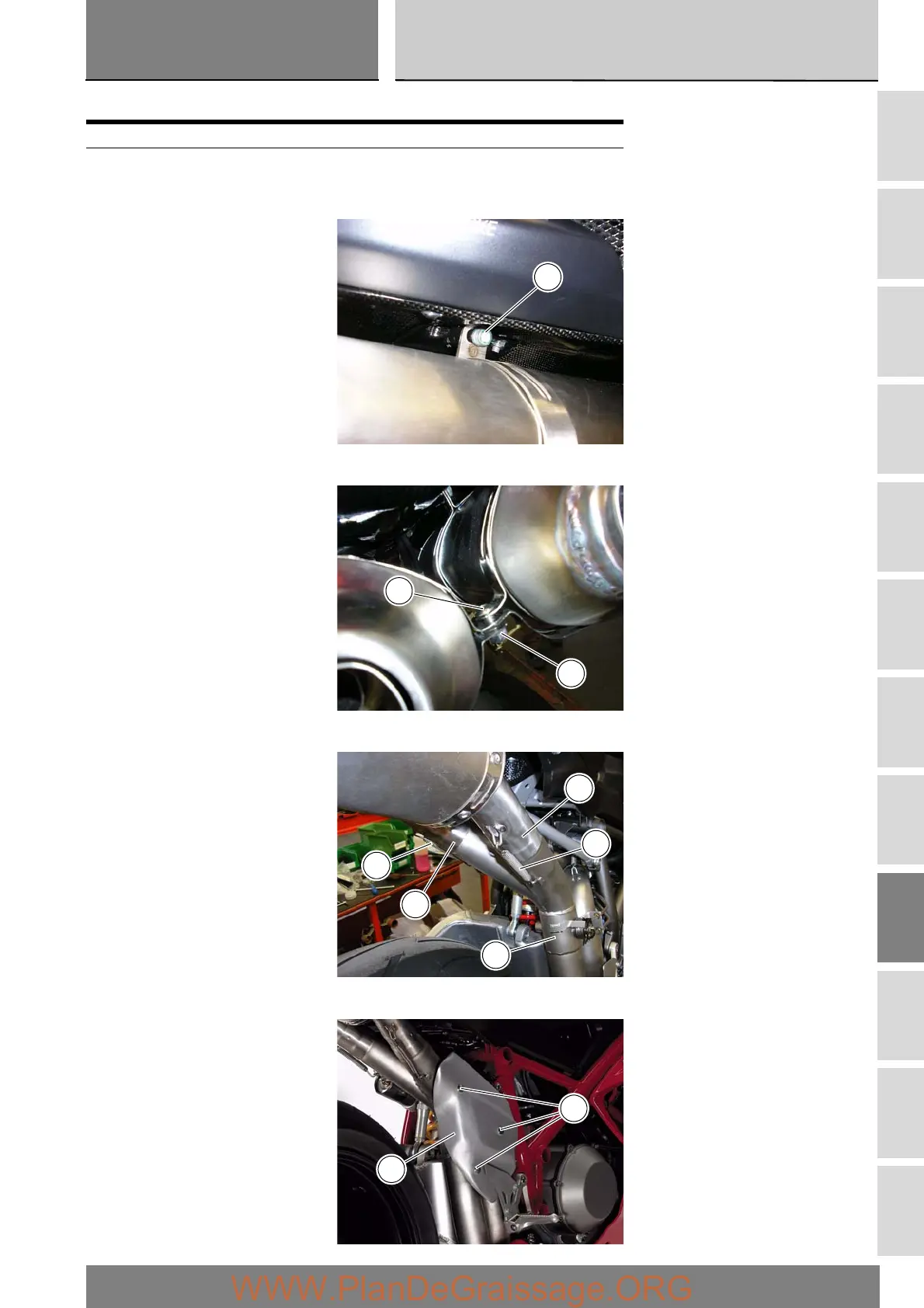

Removal of the exhaust system
Unscrew the bolts (10) and recover the seals (19).
Unscrew the bolt (17) and the nut (8).
Remove the springs (3) and slide the silencers (29) and (30) from the vertical cylinder head exhaust pipe (21).
Unscrew the bolts (24) to remove the heat shield (22).
Operation Section reference
Remove the side fairings E 2
10
17
8
30
3
21
29
3
22
24
