791098/1098S - M.Y. 2007 - edition 00
Engine
Removal of the cylinder heads

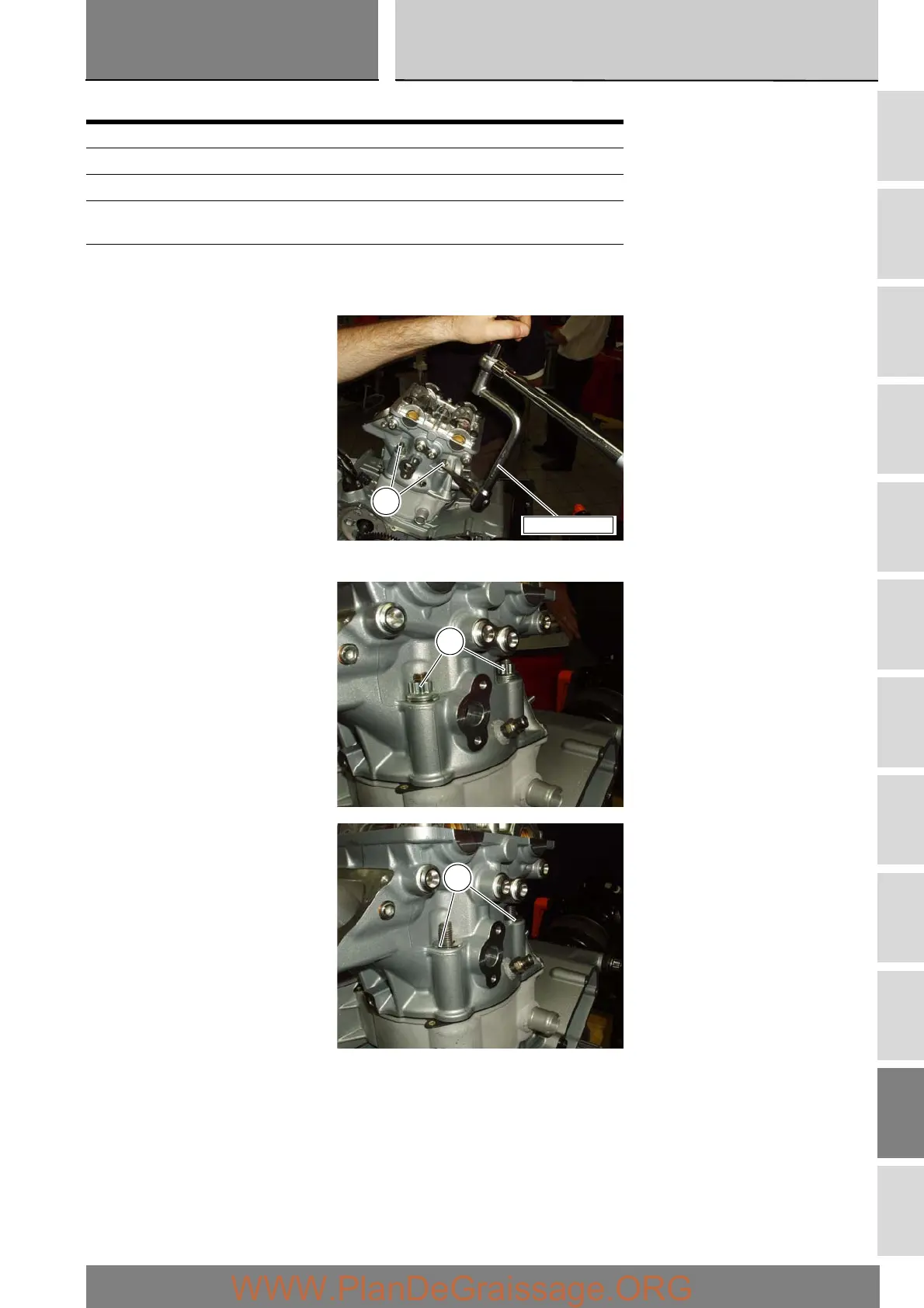

Using service tool no. 88713.2676, undo the nuts (21) on the cylinder head stud bolts.
Remove the cylinder head nuts (21) and special washers (22).
Remove the cylinder head assembly by lifting it off the engine studs.
Repeat the same procedure for the other cylinder head.
Operation Section reference
Remove the engine from the frame N 1
Remove the coolant hoses N 3.2
Remove the timing belt covers and the
timing belts
N4.2
Remove the engine lubrication system N 2.1
21
88713.2676
21
22
