Engine
Removal of the oil pump

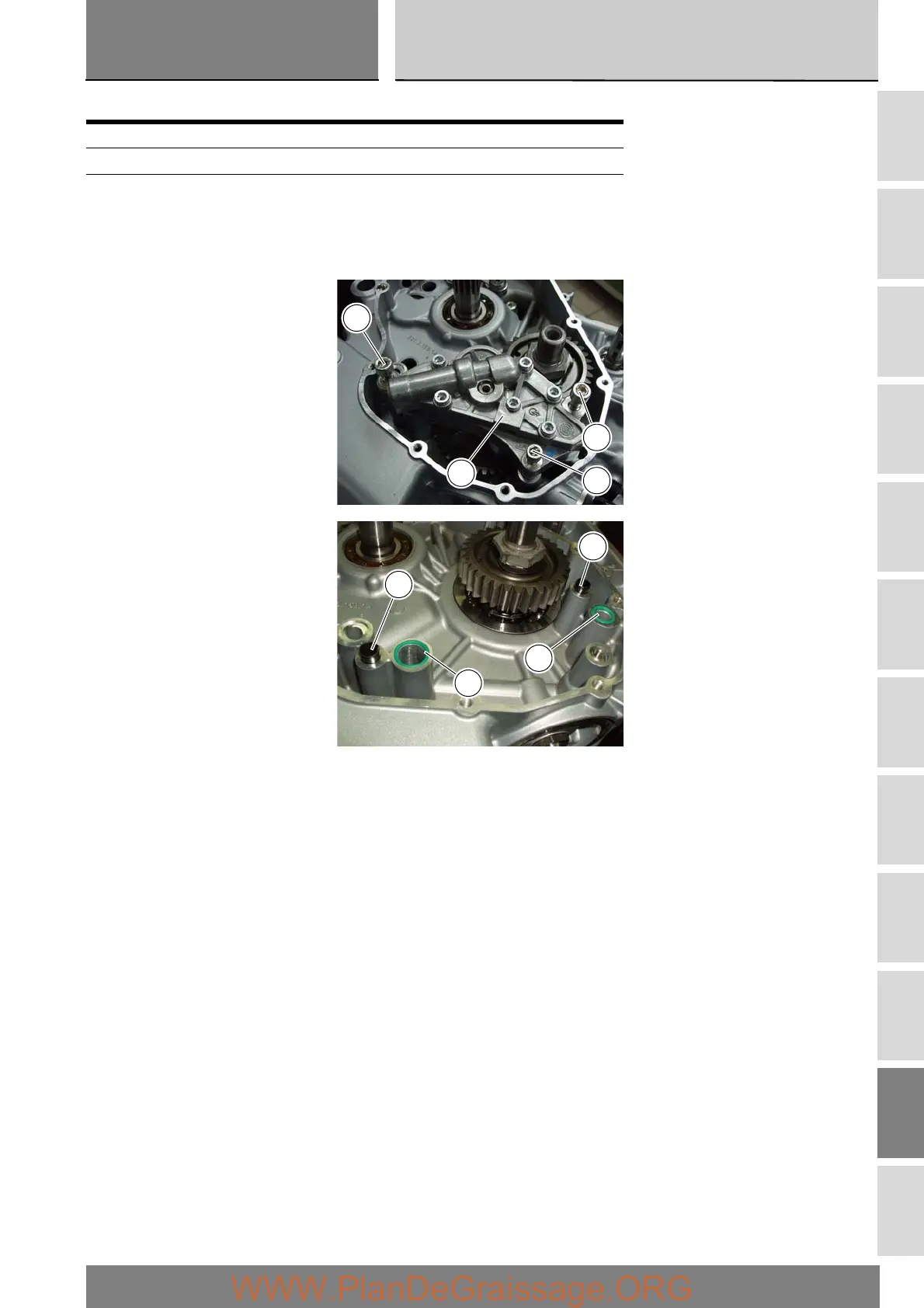

Undo and remove the bolts (9) and (10) securing the pump assembly.
Remove the oil pump assembly (1) and extract O-rings (2) and (4) from the crankcase half together with two locating bushes (15).
Operation Section reference
Remove the engine from the frame N 1, Removal of the engine
Remove the right-hand side crankcase
cover
N 6.2, Removal of the right-hand side
crankcase cover
10
1
9
9
15
4
15
2
