section
N 4.2
54 1098/1098S - M.Y. 2007 - edition 00
Engine

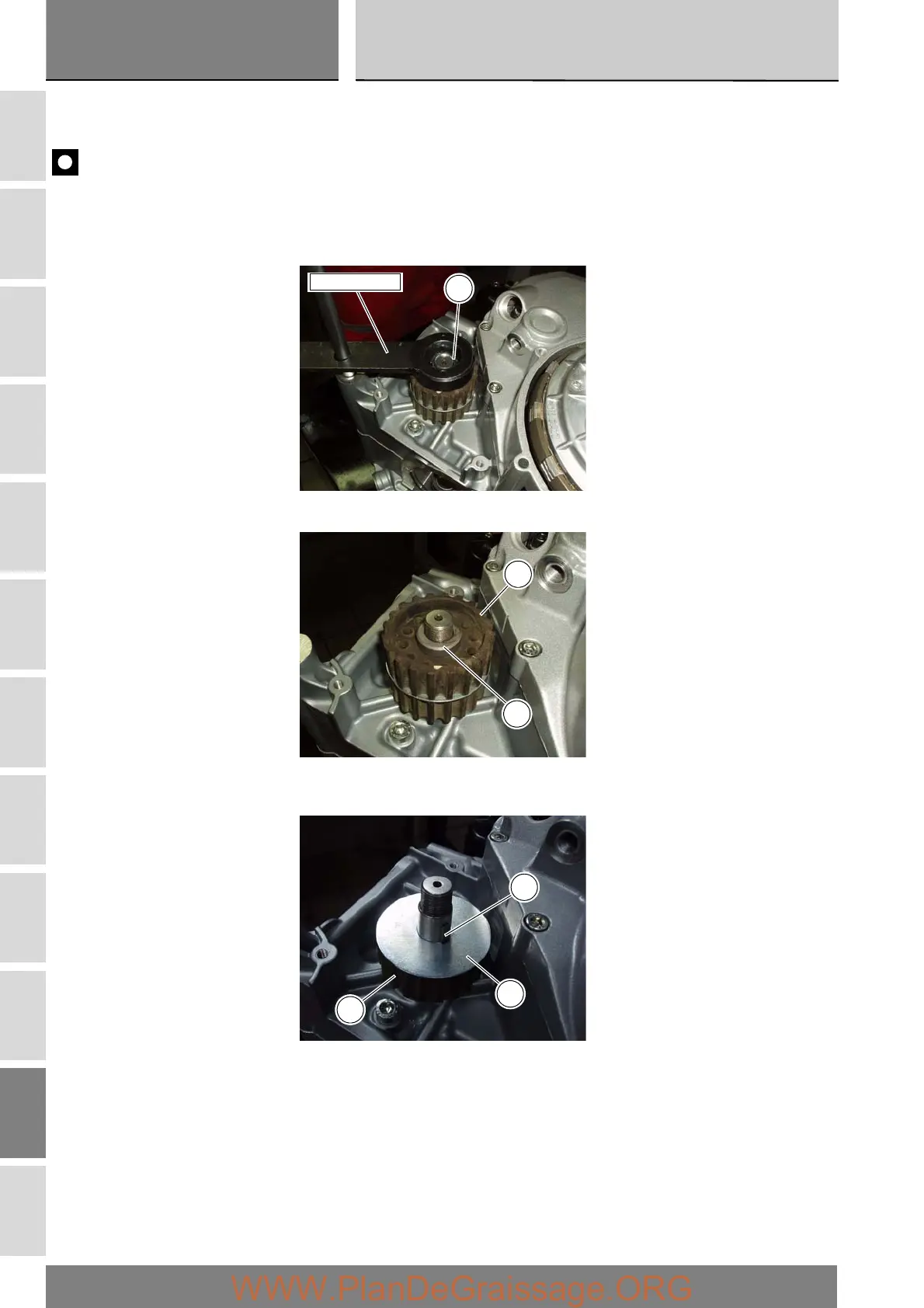

Removal of the timing belt driveshaft pulleys
Using service tool no. 88713.1805 hold the driveshaft pulleys against rotation
Important
If this operation is carried out with the engine installed in the frame, hold the driveshaft pulleys against rotation using service tool
part 88713.2011 on the left-hand crankcase cover.
Loosen the nut (15) using the socket supplied with the service tool.
Remove the nut (15), the spacer (20) and the outer pulley (18).
Remove the first Woodruff key (16) from the timing belt driveshaft.
Remove the intermediate spacer (19) and the inner pulley (18).
88713.1805
15
18
20
16
19
18
