Engine

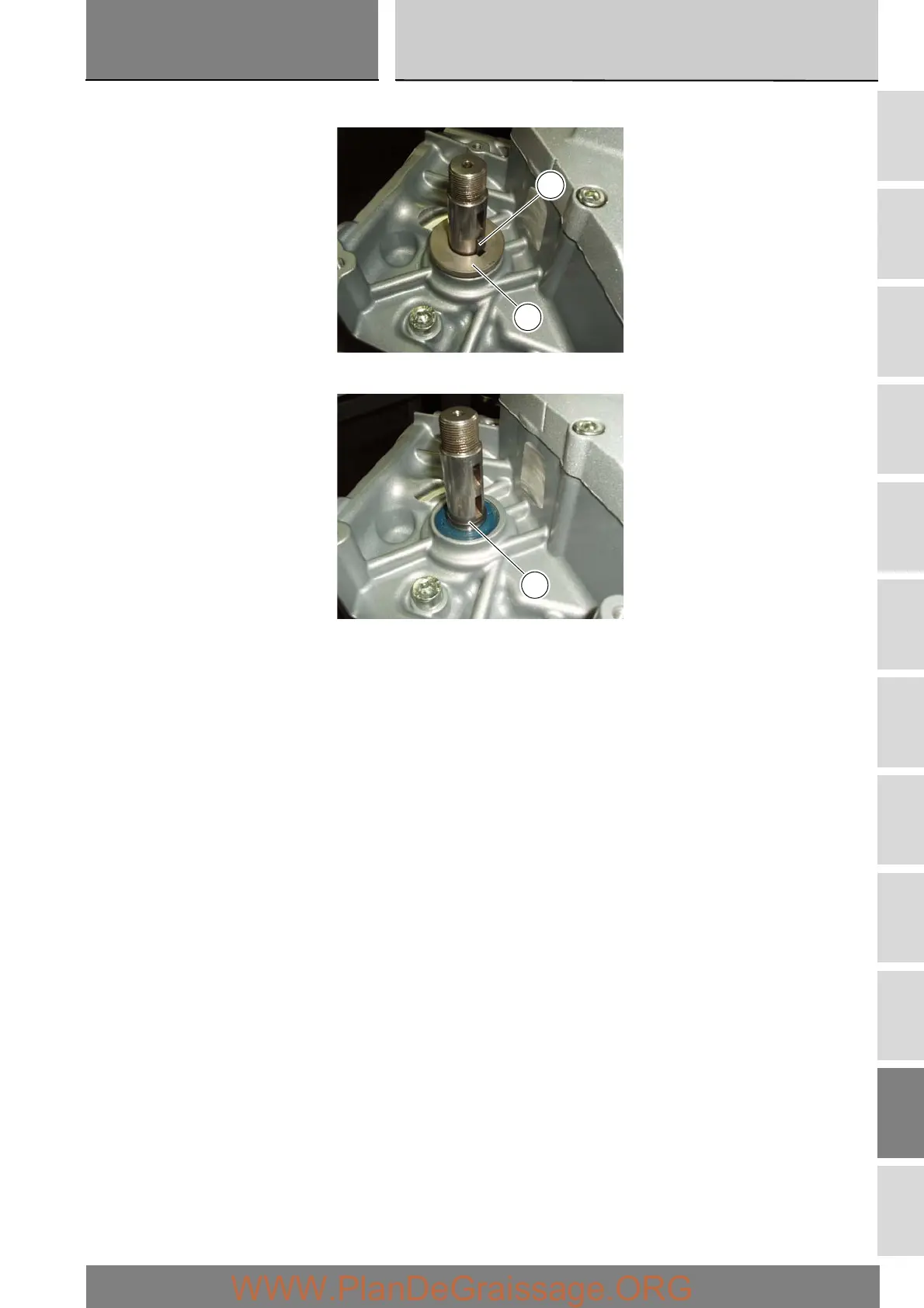

Remove the inner spacer (17) and second Woodruff key (16) on the timing belt driveshaft.
At this point it is possible to remove the circlip (10) located on the timing belt driveshaft.
16
17
10
