66 1098/1098S - M.Y. 2007 - edition 00
Use and maintenance
Checking the engine oil pressure
Notes
The on-screen icons used during this procedure are explained in a table at the end of this section.

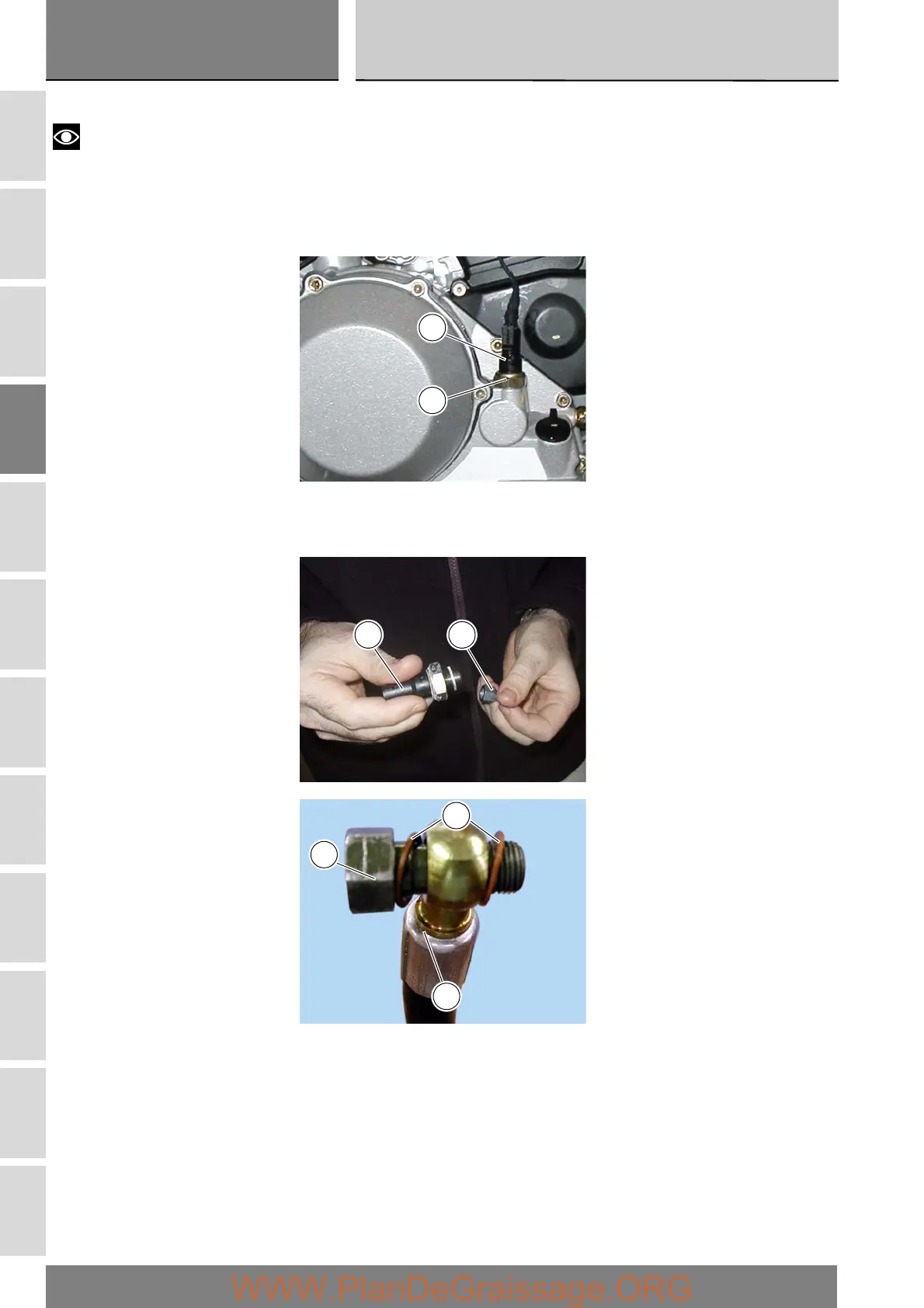

To measure the pressure of the lubrication circuit, use the engine oil pressure test point (19) as follows:
Remove the RH side fairing (Sect. E 2).
Disconnect the wiring connector (A) and remove the pressure switch (19), taking care to recover the seal.
Insert the fitting (9) into the connection on the hose (12), interposing the two copper sealing washers (20). Insert the fitting (9) of
the pipe (12) in the threaded hole (M10x1 mm) of the right-hand crankcase cover and screw it fully home. Refit the pressure
switch (19) on the fitting (9) along with its seal, and reconnect the wiring connector (A).
A
19
19 9
12
9
20
