section
H 5
211098/1098S - M.Y. 2007 - edition 00
Frame

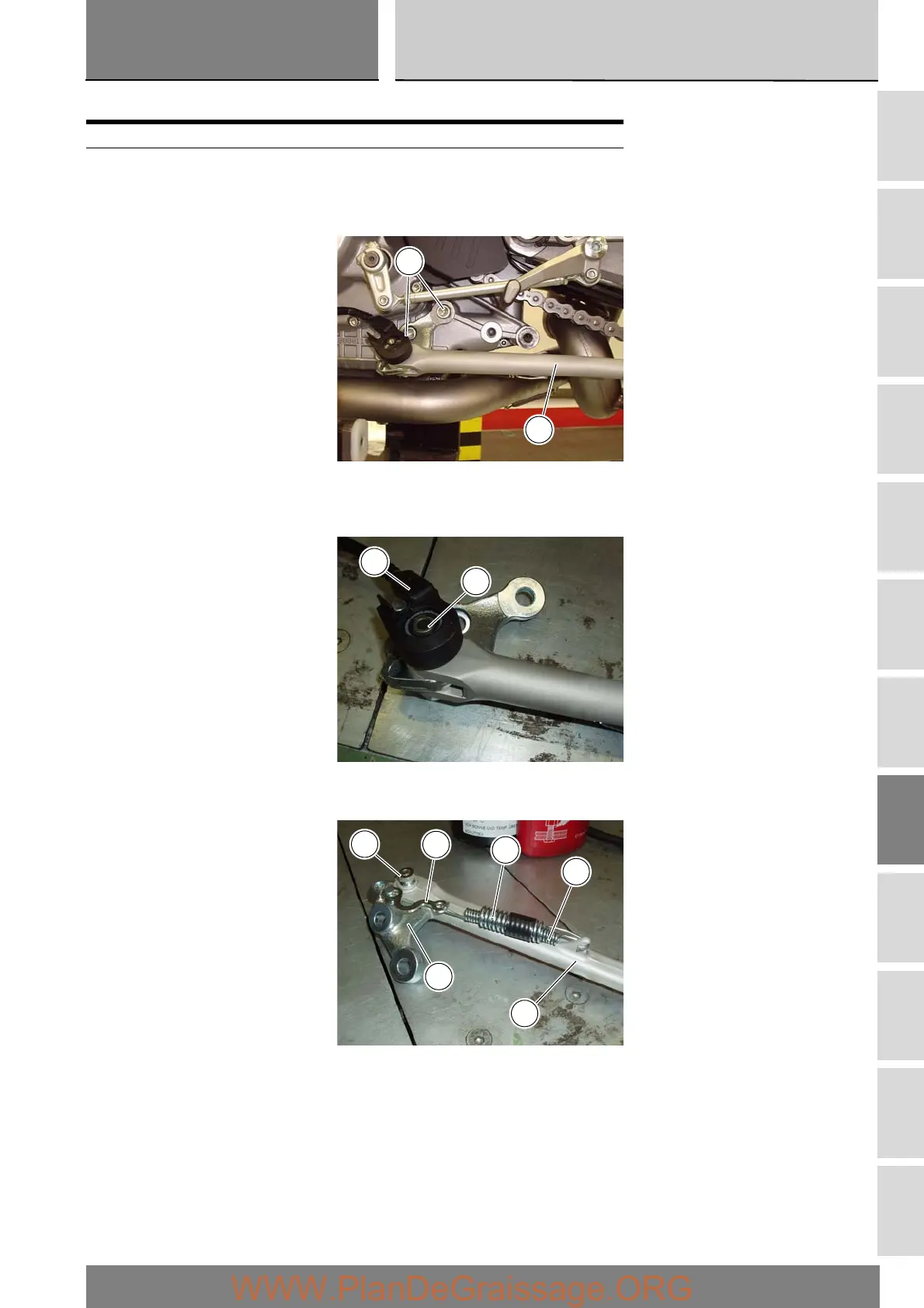

Removal of the sidestand.
Disconnect the wiring connector of the sidestand switch (1) from the main wiring harness.
Unscrew the two bolts (2) securing the sidestand bracket (3) to the engine and remove the complete sidestand assembly.
Disassembly of the sidestand.
Unscrew the retaining bolt (4) and remove the sidestand switch (5).
Release the sidestand springs (6) and (7) from the connecting plate (8) located on the sidestand bracket (3), and remove them.
Unscrew the pivot pin (9) securing the sidestand to the support plate and remove the stand leg (1) and nut (10).
Operation Section reference
Remove the left-hand side fairing E 2
2
1
5
4
10
8
3
6
7
1
