section
F 2
111098/1098S - M.Y. 2007 - edition 00
Controls - Devices

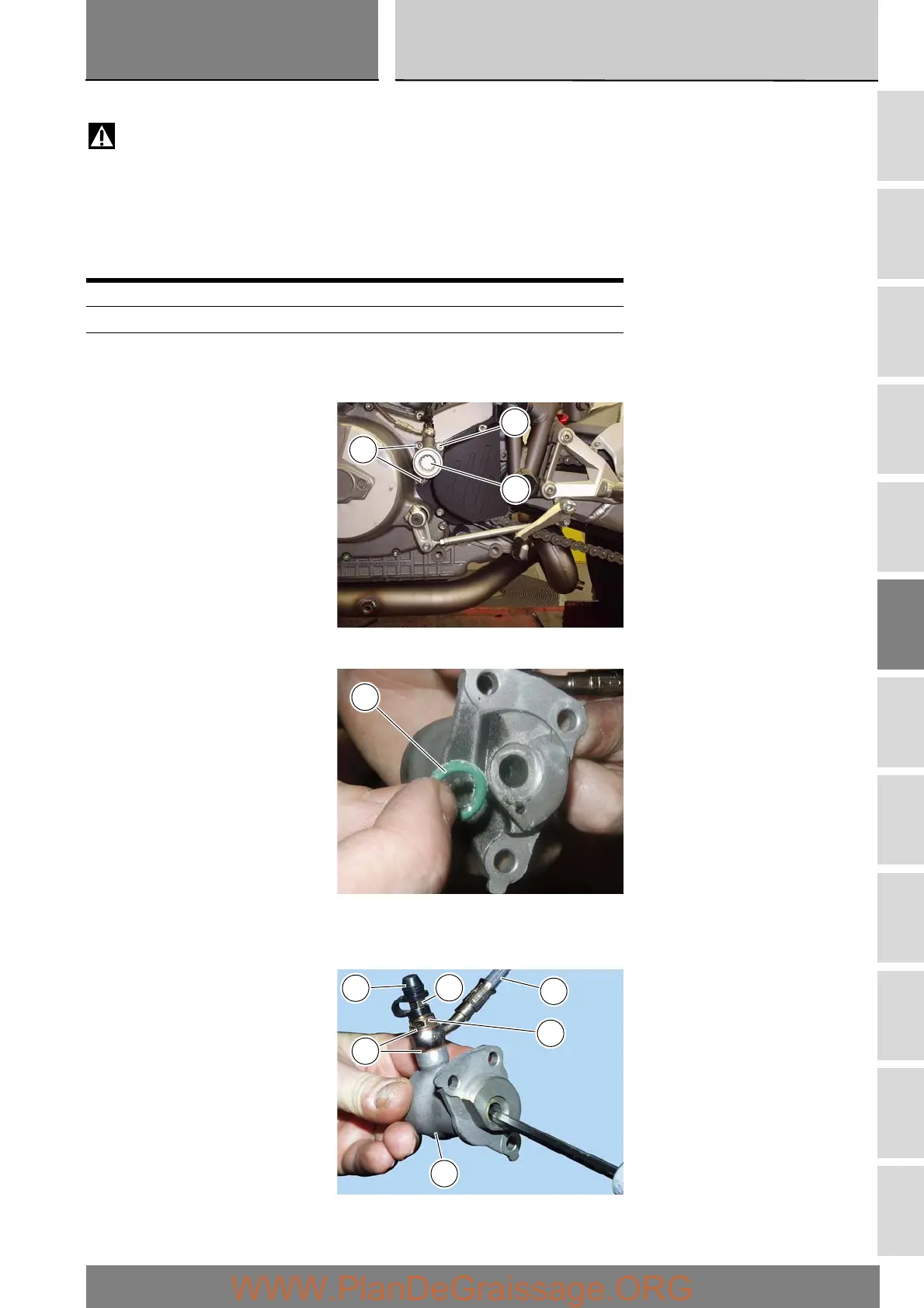

Removal of the clutch slave cylinder
Warning
The clutch slave cylinder manufacturer advises against servicing the internal components of the slave cylinder (23) due to the
safety-critical nature of the unit.
Incorrect overhaul of this critical safety component can endanger the rider and passenger.
The only components that should be renewed are the complete clutch slave unit, the bleed valve, the O-ring seal and the clutch
pushrod assembly.
Undo the three bolts (24) securing the clutch slave cylinder (23) to the engine.
Remove the clutch slave cylinder from the crankcase, taking care to recover the internal O-ring (22).
Remove the dust cap (4) and the bleed valve (3) and unscrew the banjo bolt (5), taking care to recover the sealing washers (17):
the unit (23) is now disconnected from hose (6).
Push in the piston to force out all the fluid from inside the cap.
Operation Section reference
Drain the clutch system D 4
Remove left side fairing E 2
24
23
24
22
6
5
3
4
17
23
