L 7
30 1098/1098S - M.Y. 2007 - edition 00
Fuel / Exhaust System
Removal of the air filters

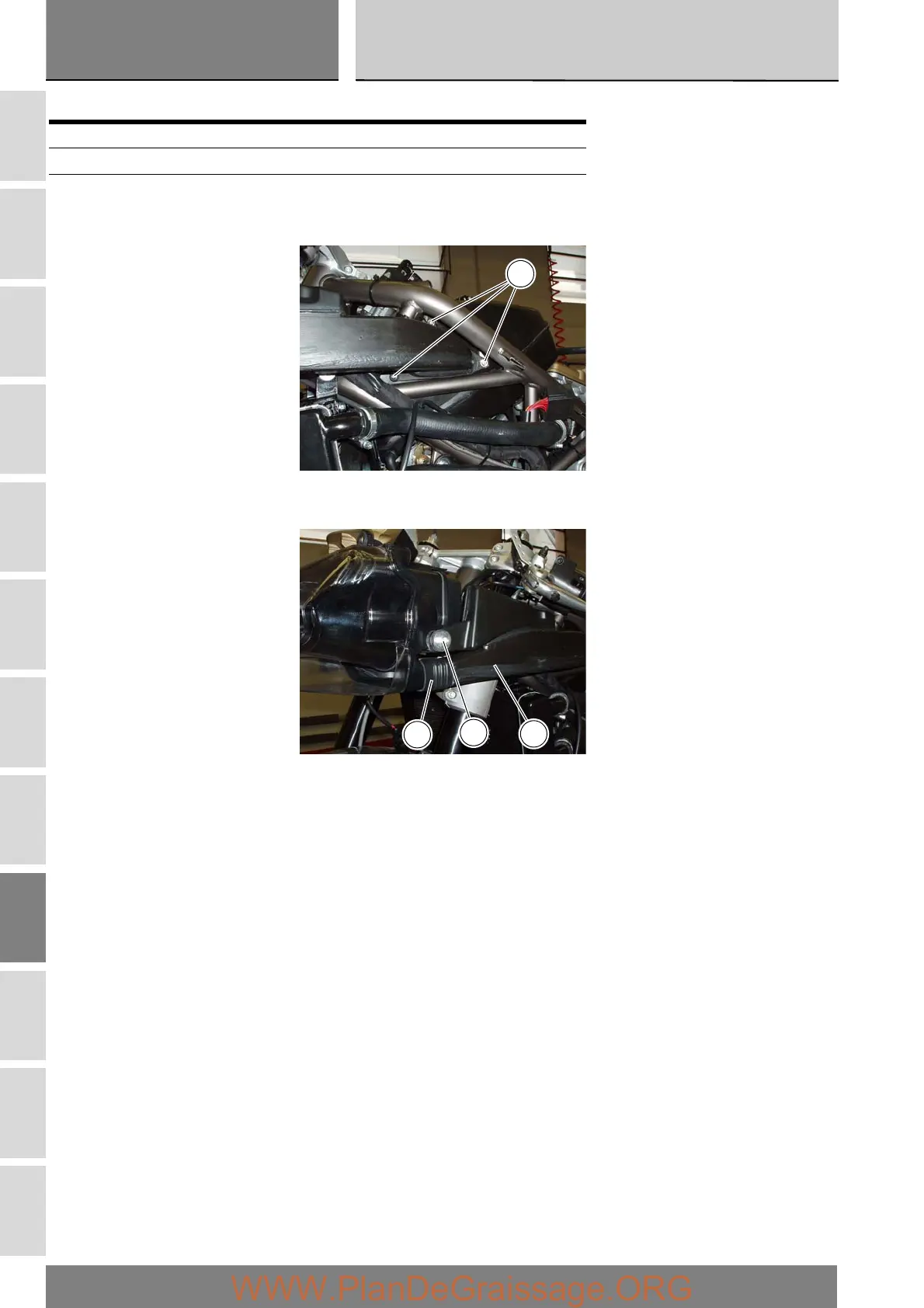

Undo the bolts (7) securing the air scoops to the airbox.
Unscrew the bolts (1) securing the air scoops to the headlight assembly and withdraw the intake hoses (9) and (11) with the air
scoops (6) andd (10) from the headlight assembly.
Operation Section reference
Remove the side fairings E 2
Remove the headlight shell E 1
7
1
9
6
