section
F 3
171098/1098S - M.Y. 2007 - edition 00
Controls - Devices

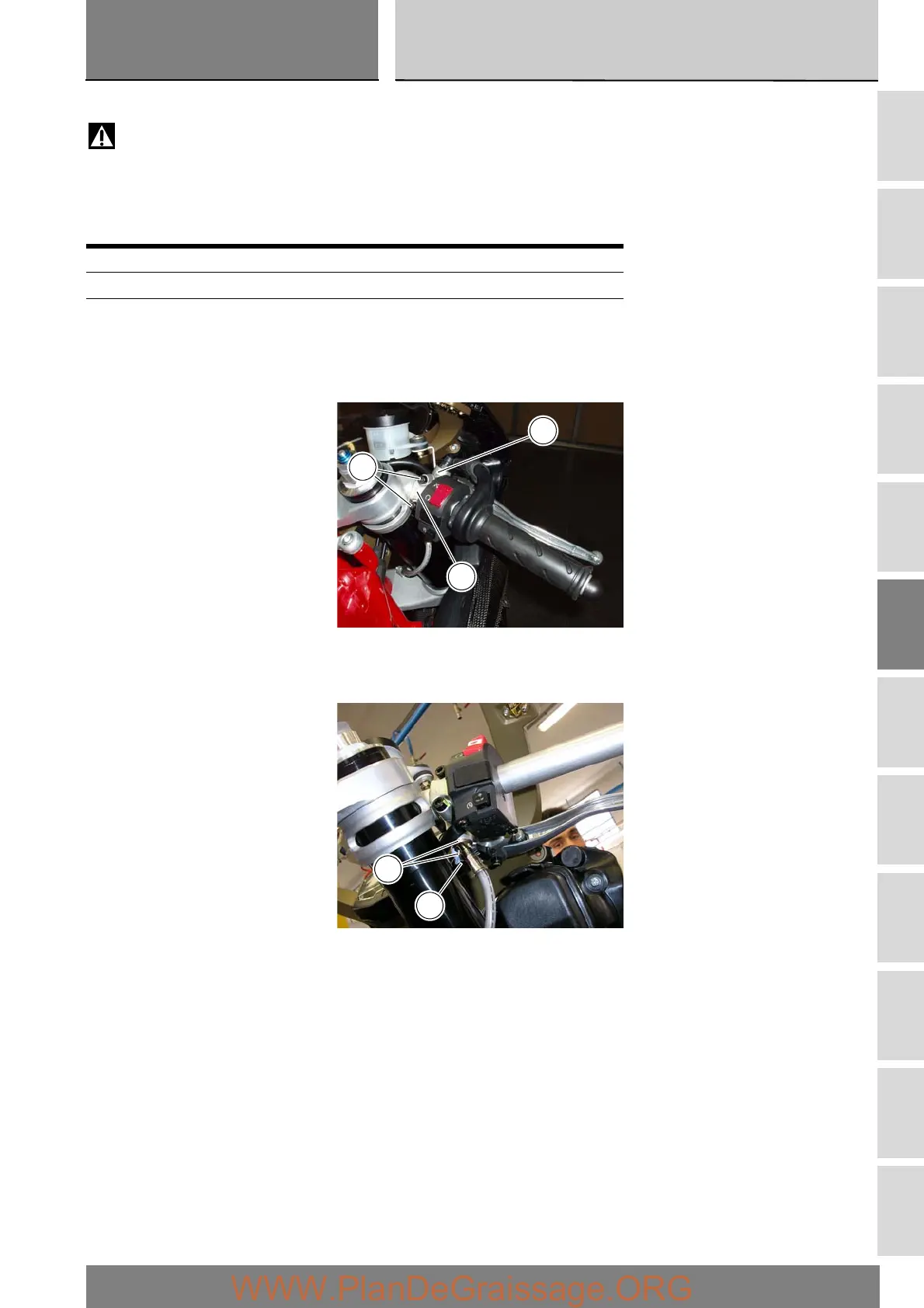

Removal of the front brake master cylinder
Warning
The manufacturer of the brake master cylinder advises against the servicing of its internal parts due to the safety critical nature
of this component. Incorrect overhaul of this safety–critical component can endanger rider safety.
Maintenance operations on these units are limited to renewal of the following parts: control lever, fluid reservoir assembly and
relative fasteners and master cylinder fasteners.
Unscrew the bolts (9) securing the mounting clamp (8) and then remove the front brake master cylinder assembly (1) from the
handlebar.
For disassembly of components of the master cylinder unit (1) refer to the exploded view at the beginning of this chapter.
When refitting the hose, fit the end fitting (3) with the sealing washers (4) and tighten the fitting to the prescribed torque
(Sect. C 3).
Operation Section reference
Drain the braking system D 4
Disconnect the brake hose from the
master cylinder unit
G3
1
8
9
4
3
