Ducati 1098 2007 - 2 - Hydraulic clutch control

A
B
C
D
E
F
G
H
L
M
N
P
section
F 2
71098/1098S - M.Y. 2007 - edition 00
Controls - Devices
2 - Hydraulic clutch control
1 Clutch master cylinder
2 Lever
3 Bleed valve
4 Dust cap
5 Banjo bolt
6 Clutch control hose
7Bolt
8 Rubber mounting
9 Bracket
10 Bolt
11 Cover
12 Fluid reservoir assembly
13 Nut
14 Hose clip
15 Hose
16 Banjo bolt
17 Sealing washer
18 Bolt
19 Microswitch
20 Clutch pushrod
21 O-ring
22 O-ring
23 Clutch slave cylinder
24 Bolt
25 Adjuster screw
26 Retaining ring
27 Special bolt
Important

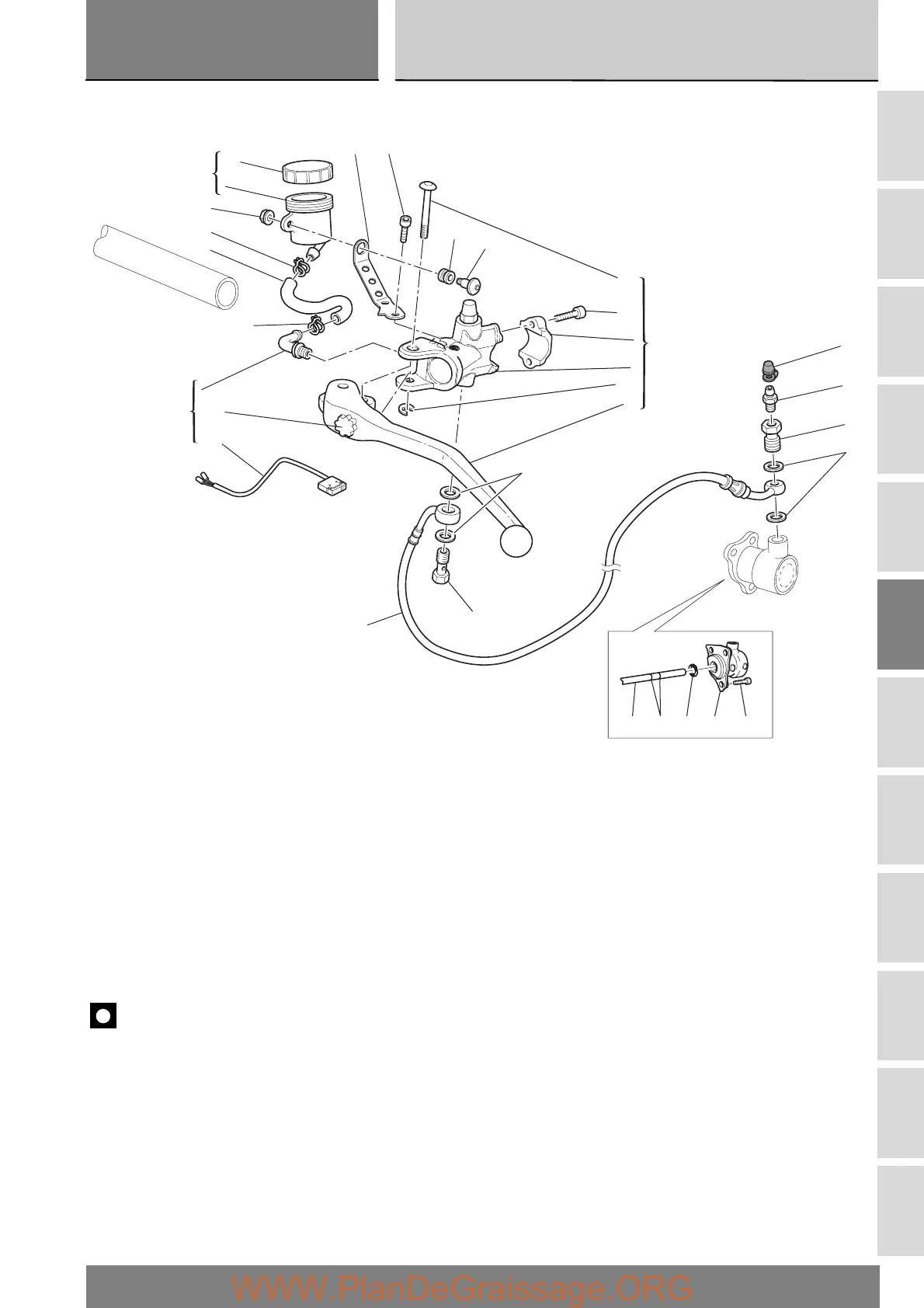

Bold reference numbers in this section identify parts not shown in the figures alongside the text. Refer to the exploded view
diagram.
13
14
15
11
10
9
8
7
1
2
3
5
17
4
14
1
16
17
6
12
25
19
18
26
27
20
21 22 23 24
1
