Refitting the swingarm

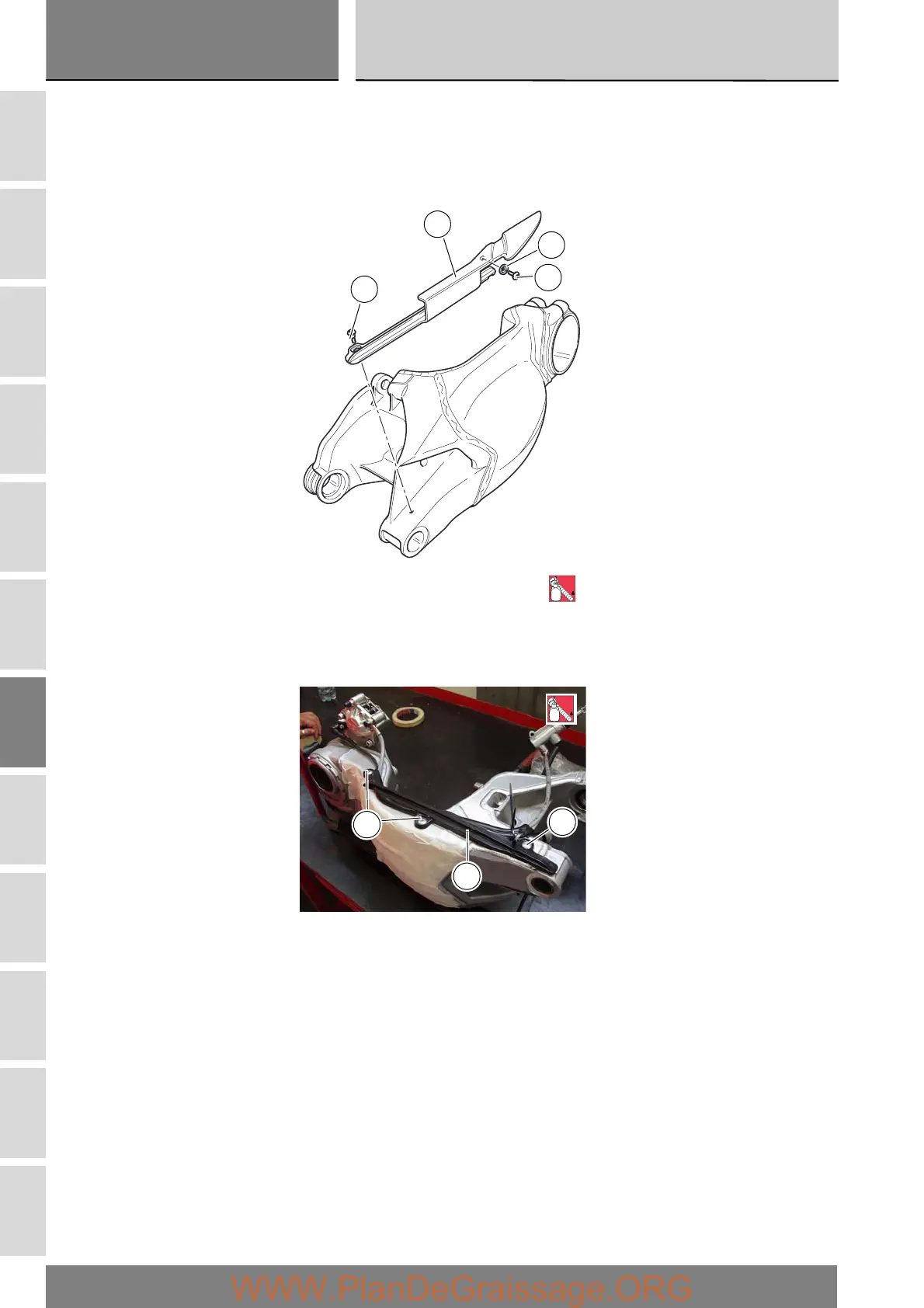

Refit the upper chain slider (7) securing it with the bolts (9) and (10) and the washers (11).
Refit the rear brake hose and speed sensor to the swingarm (4), securing them with the lower chain slider (8) and tightening the
bolts (9).
Apply the recommended threadlocker to the bolts (9) and (10) and tighten to the specified torque (Sect. C 3).
9
10
7
11
2
LOCK
8
9
9
2
LOCK
