G 4
32 1098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes
Overhauling the rear wheel
Proceed with inspection of the rear wheel.
As the rear wheel has no bearings, it should be supported on the service tool part no. 88713.1073.
Notes
This service tool can also be used to install the wheel on a balancing machine.
Overhauling the wheel
Inspect the wheel as follows:
Visually inspect the wheel for cracks, scoring and deformation; change the wheel if damaged.
Install the wheel on the service tool part no. 88713.1073 using the original fasteners.

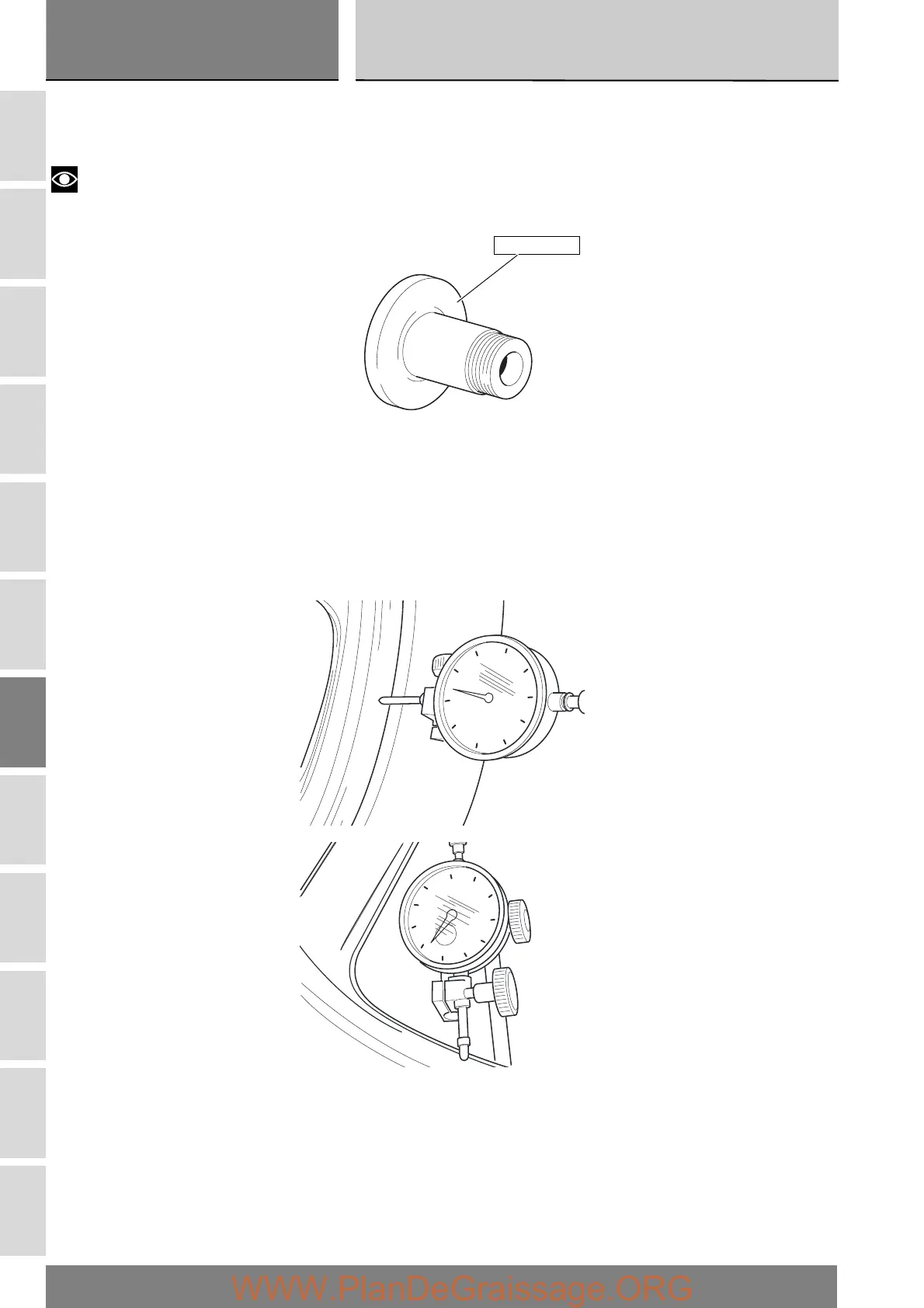

Using a dial gauge, measure rim runout and out-of-round relative to the wheel axle (see Sect. C 1.1).
If the values measured are not within the tolerance limits, renew the wheel.
88713.1073
