section
G 1
91098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes

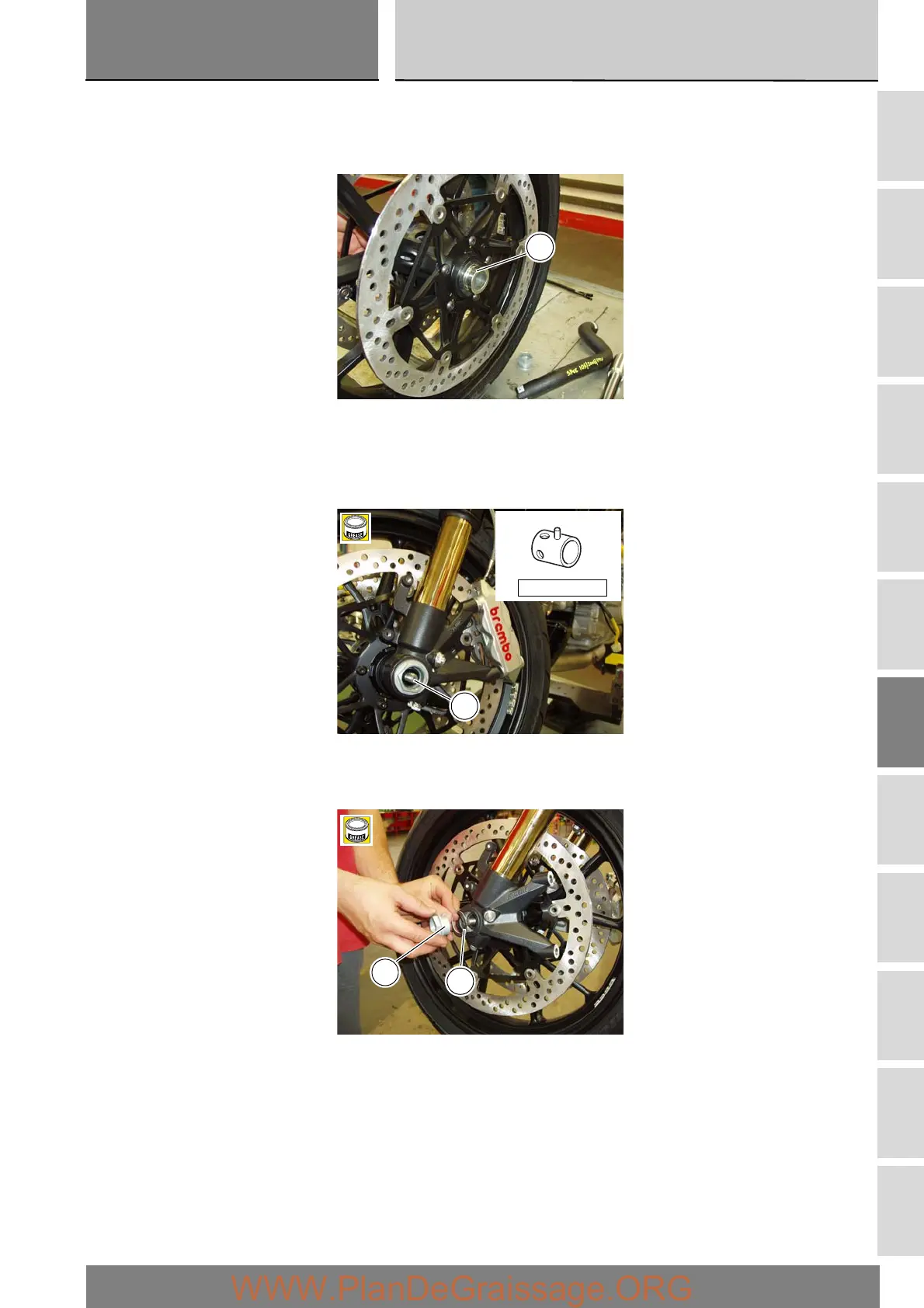

Refitting the front wheel
When all the necessary inspections have been completed, refit the wheel as follows.
Lubricate and fit the spacers (3) and (9) to the oil seals on the sides of the wheel hub.
Install the complete wheel between the fork legs.
Lubricate the shank and thread of the wheel axle (10).
Fit the special tool part no. 8000.70139 to the wheel axle (10).
Drive the axle (10) fully home into the wheel hub, inserting the locating peg of the service tool in the special notches at the bottom
end of the fork.
Fit the washer (2) on the end of the axle.
Grease the thread and the underside of the head of the axle lock nut (1), then screw it on.
Tighten the nut (1) to the specified torque (Sect. C 3).
Refit the front brake calipers as described in Sect. G 3.
Check that the brake discs turn freely inside the calipers.
9
10
8000.70139
B
D
1
2
B
