section
N 4.2
56 1098/1098S - M.Y. 2007 - edition 00
Engine

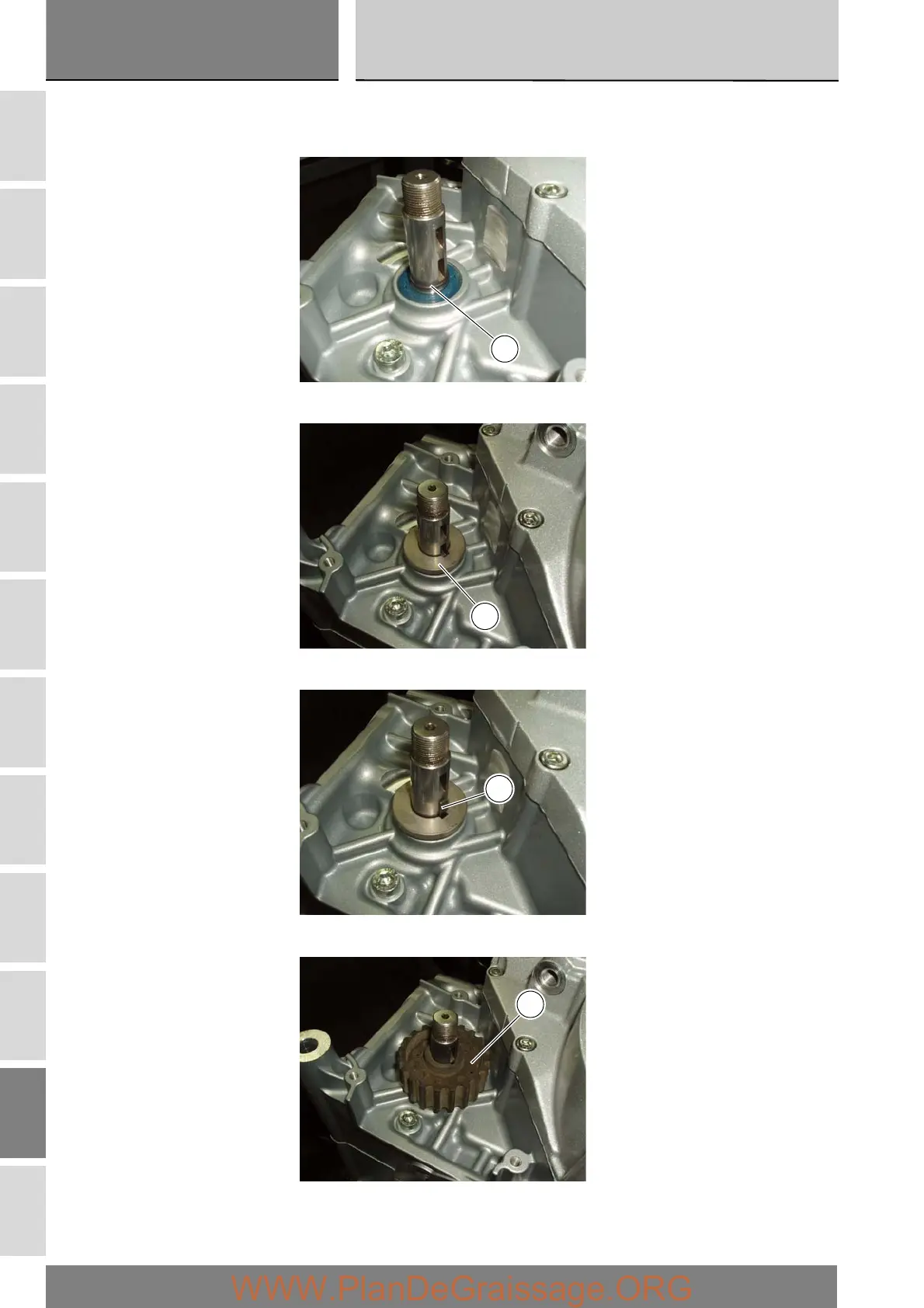

Refitting the timing belt driveshaft pulleys
To fit the circlip (10) to the driveshaft, use the protective cap 88713.2834.
Install the inner spacer (17) on the driveshaft, taking care to align the notch in the spacer with the slot for the Woodruff key.
Fit the first Woodruff key (16) on the timing belt driveshaft.
Locate the inner pulley (18).
10
17
16
18
