H 4
191098/1098S - M.Y. 2007 - edition 00
Frame

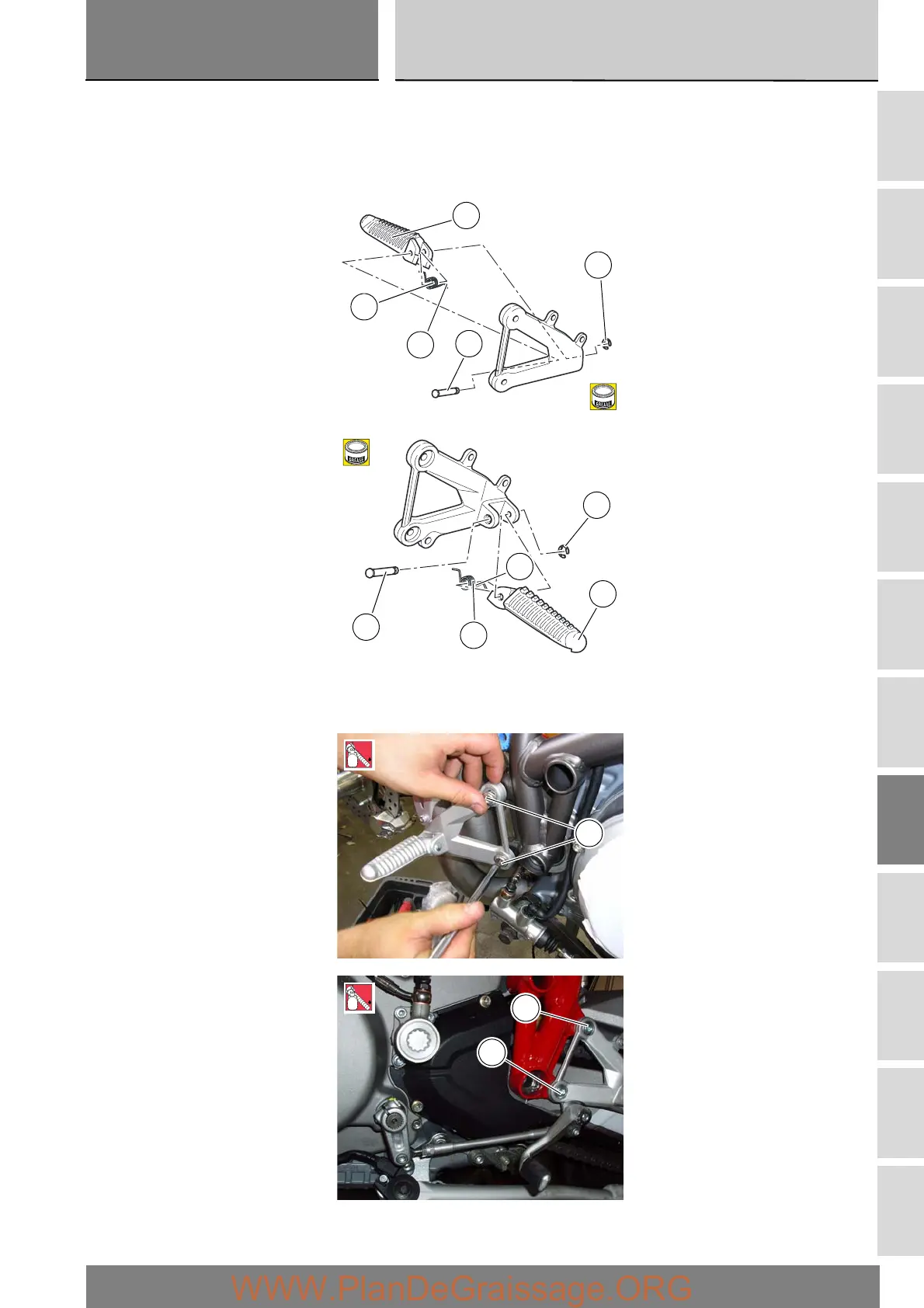

Refitting the footrests
Position the spring (3) between the lugs of the footrest (5) or (6) and fit it to the bracket, inserting the straight end (B) of the spring
in the hole in the bracket.
Insert the pin (4) from the front side of the bracket, securing it on the other side with circlip (10).
Fit the entire assembly to the frame, securing it with the bolts (7) coated with the recommended threadlocker.
Tighten the bolts (7) to the specified torque (Sect. C 3).
Refit the gearchange pedal (Sect. F 5) to the left footrest bracket.
3
4
10
5
B
D
D
4
3
10
B
6
2
LOCK
7
7
2
LOCK
7
