91098/1098S - M.Y. 2007 - edition 00
Controls - Devices

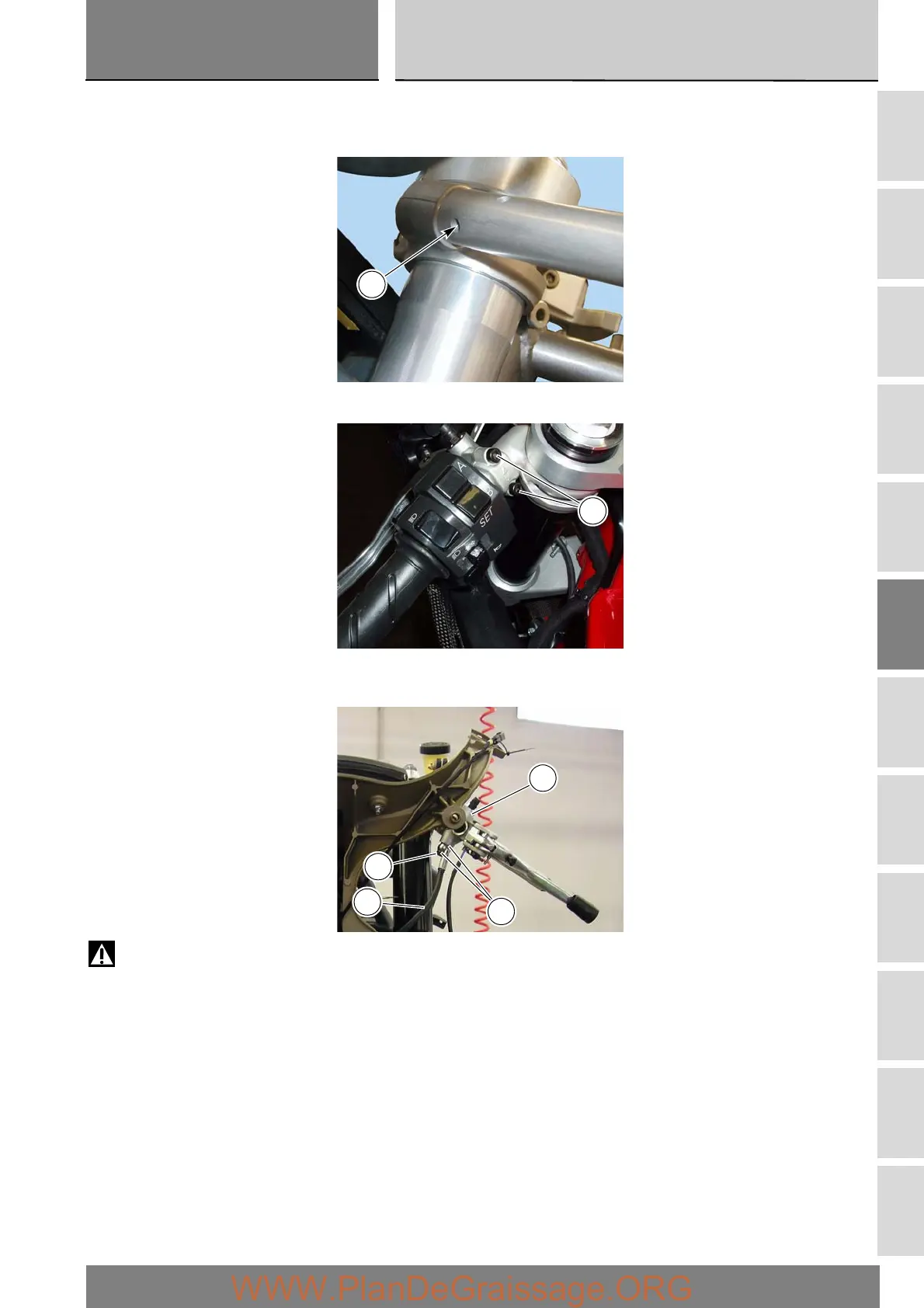

Refitting the clutch master cylinder assembly
Fit the clutch master cylinder (1), locating the pin on the cylinder body in the hole (A) in the handlebar.
Tighten the retaining bolts (18) to the specified torque (Sect. C 3), in the sequence 1-2-1.
Locate the hose (6) and sealing washers (17) on the master cylinder (1) and secure with the banjo bolt (16), but do not tighten at
this stage.
Warning
An incorrectly positioned hose can cause clutch faults and interfere with moving parts.
A
18
17
16
6
1
