section
G 2
12 1098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes

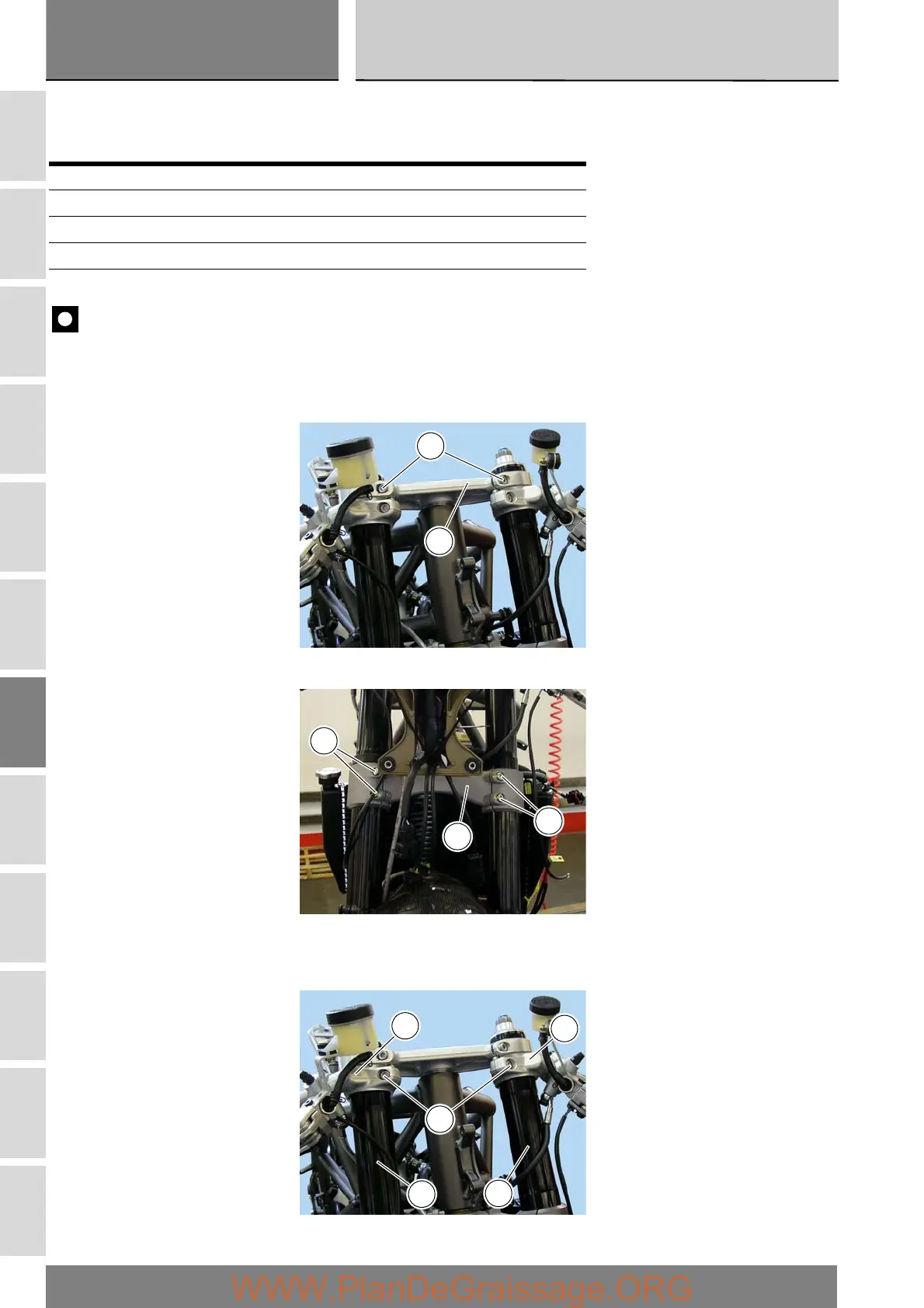

Removal of the front forks
Before removing the front forks, it is necessary to remove the following parts:
Important
Not all the components described in this chapter are available as individual replacement parts: however they are indicated for
clearer explanation of the procedure.
Loosen the clamp bolts (1) holding the fork legs to the top yoke (3).
Loosen the clamp bolts (2) securing the fork legs to the bottom yoke (4).
Slacken off the bolts (30) securing the handlebar clamps (31) and (32) to the fork legs.
Withdraw the fork legs (5) and (6) downwards in order to carry out to all the necessary overhaul operations.
Operation Section reference
Removal of the front brake calipers G 3
Removal of the front mudguard E 4
Removal of the front wheel G 1
Removal of the headlight shell E 1
3
1
4
2
2
31
30
32
6
5
