Ducati 1098 2007 - 4.2 - Cylinder head assemblies: timing

A
B
C
D
E
F
G
H
L
M
N
P
section
N 4.2
491098/1098S - M.Y. 2007 - edition 00
Engine

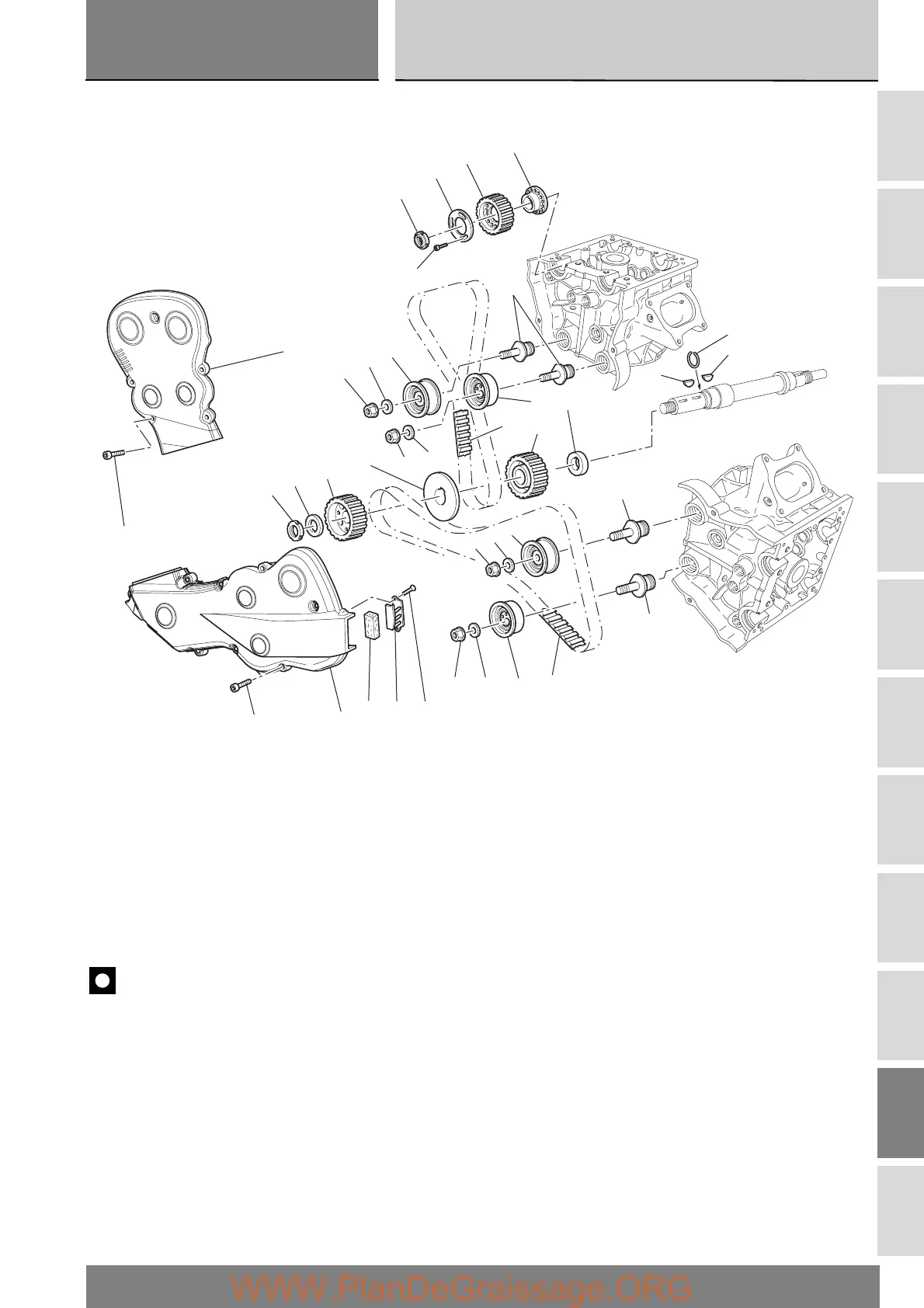

4.2 - Cylinder head assemblies: timing
1 Vertical cylinder timing belt cover
2 Air filter
3 Horizontal cylinder timing belt cover
4Bolt
5 Filter cover
6Bolt
7Washer
8Nut
9 Tensioner pulley assembly
10 Circlip
11 Camshaft pulley
12 Tensioner pulley mounting stud
13 Idler pulley assembly
14 Timing belt
15 Nut
16 Key
17 Spacer
18 Camshaft pulley
19 Driveshaft pulley spacer
20 Spacer
21 Nut
22 Bolt
23 Washer
24 Spacer flange
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text. Refer to the exploded view
diagram.
14
19
18
20
15
13
12
18
17
9
16
16
10
12
12
14
978
62
5
13
7
8
7
8
7
8
4
4
1
3
21
23
11
24
22
1
