Use and maintenance
Adjusting the steering head bearings
Excessive handlebar play or shaking forks in the steering head indicate that the play in the steering head bearings requires
adjustment. Proceed as follows:

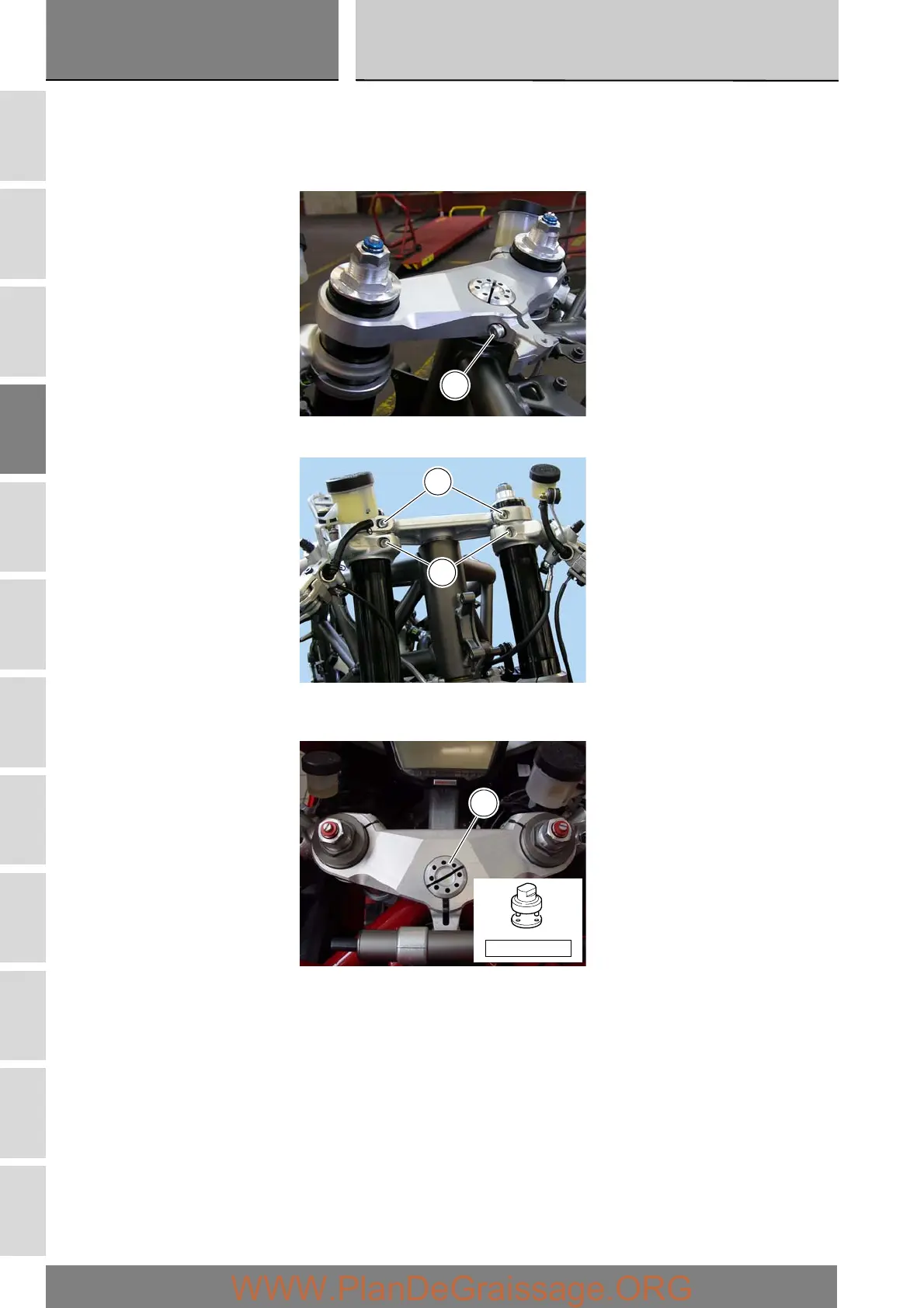

Loosen the clamp bolt (1) that holds the steering tube to the top yoke.
Loosen the clamp bolts (2) securing the top yoke to the fork legs and loosen the handlebar bolts (3).
Using special wrench 88713.1058, tighten the adjuster nut (4) to the specified torque (Sect. C 3).
Push the steering head against the nut (4) and tighten the previously loosened bolts to the specified torque (Sect. C 3).
1
2
3
88713.1058
4
